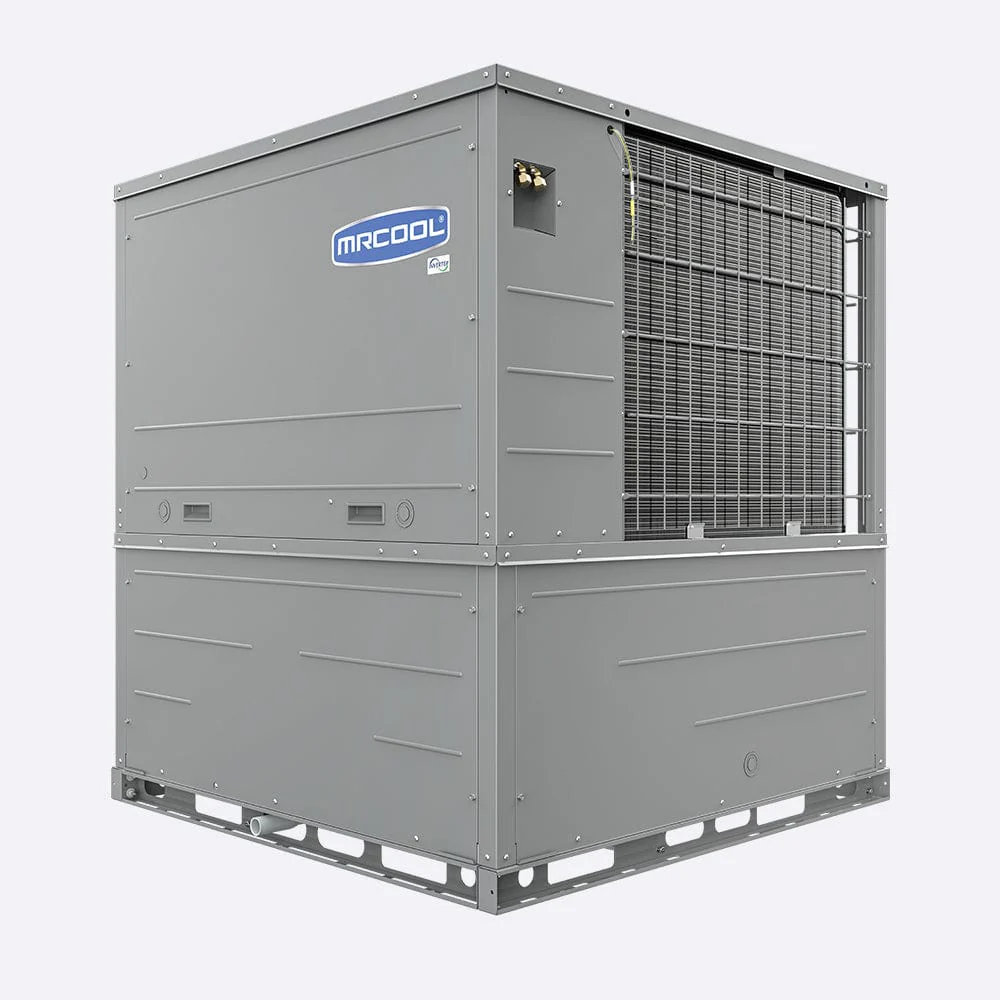

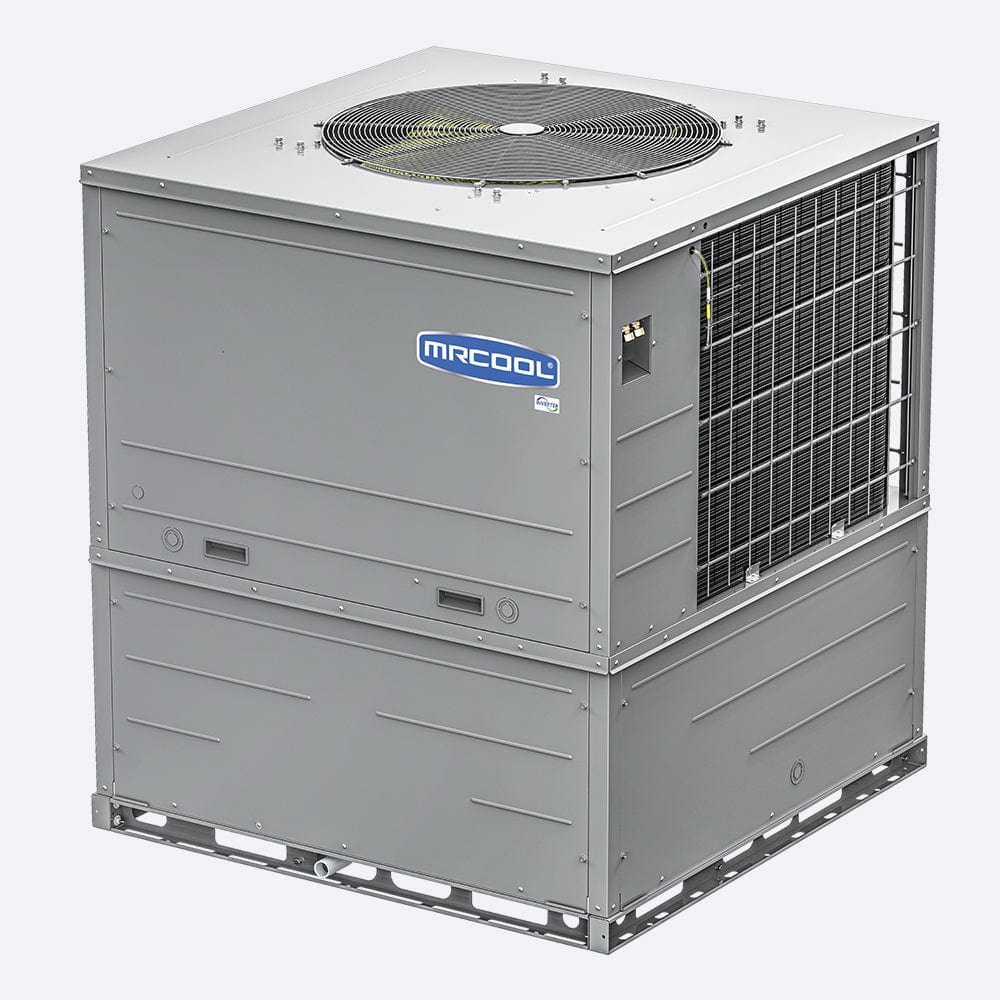

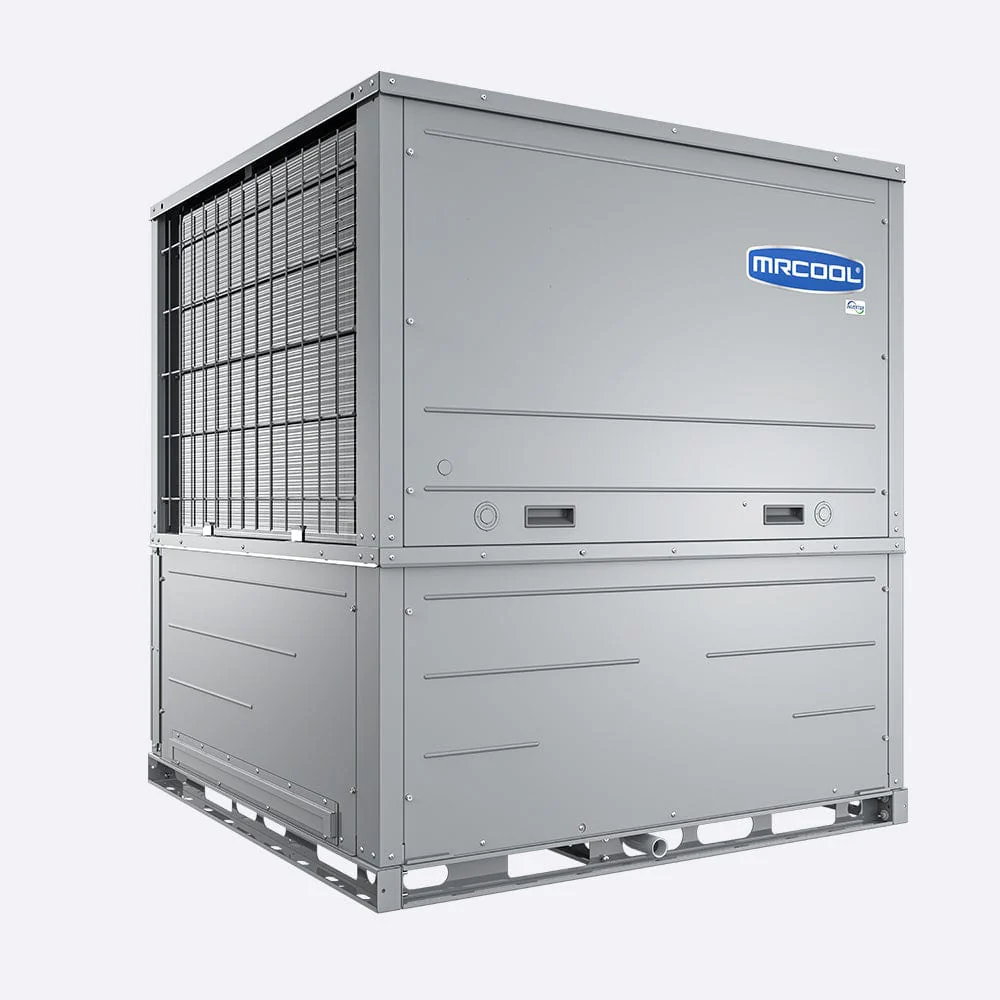

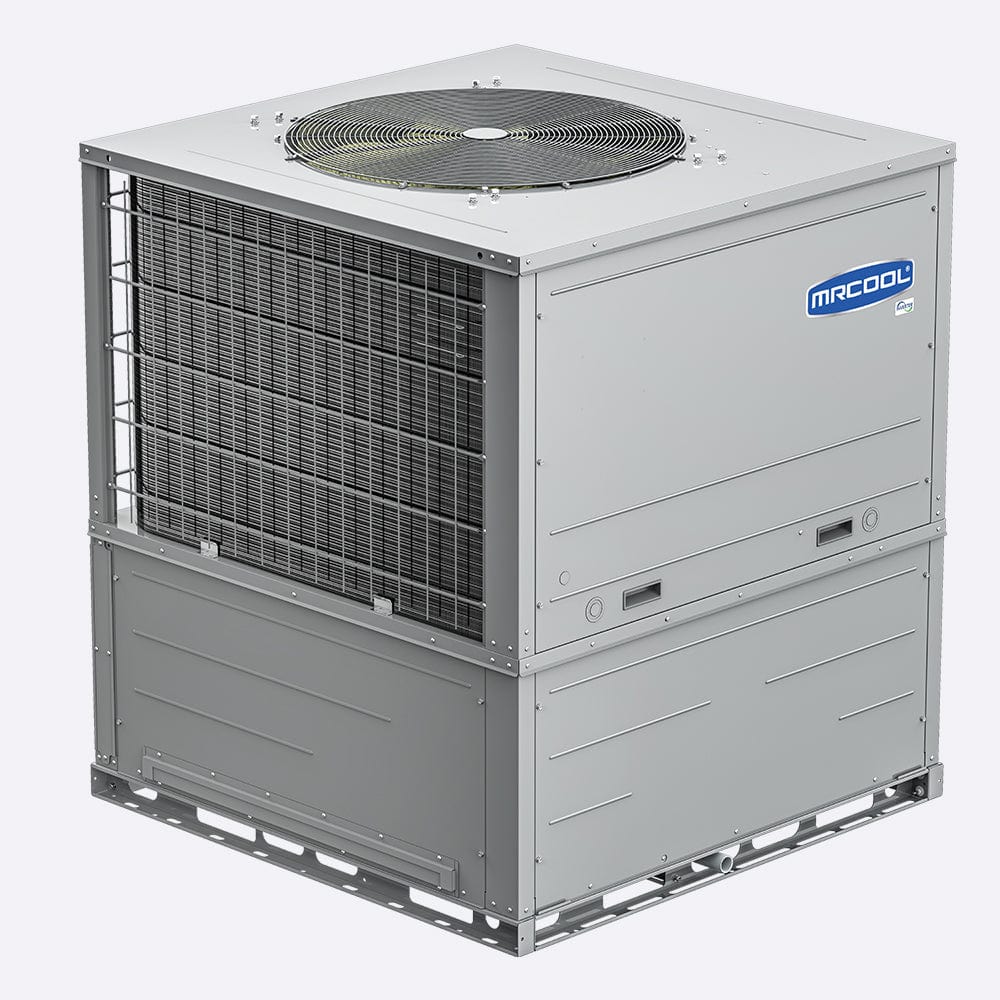

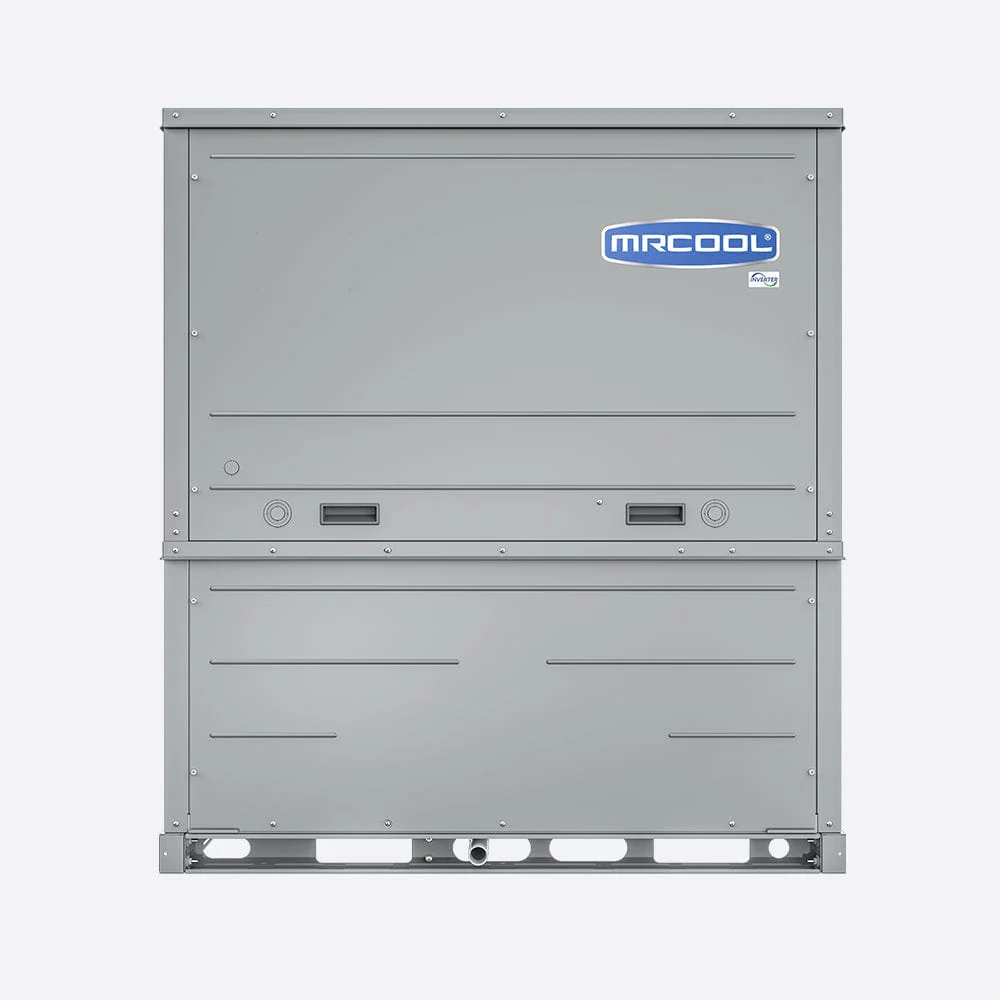

MRCOOL Universal DC Inverter 60k BTU Packaged Heat Pump MDPH180604
MRCOOL 60k BTU 17 SEER2 Universal DC Inverter Packaged Heat Pump-R410A MDPH180604
This product is no longer available, Our sales professionals can help you in finding something similar that matches your style, space, and budget. Feel free to contact us today at +1-800-583-0045 or email us at [email protected]
The MRCOOL 60K BTU 17 SEER2 Packaged Heat Pump delivers powerful heating and cooling with energy-efficient performance. Its DC inverter technology provides precise temperature control and reduced energy consumption, enhancing comfort while lowering utility bills. Designed for versatility and reliability, it utilizes R410A refrigerant and offers a high SEER2 rating, making it a top choice for efficient, year-round climate control in various applications.
Features
- Wired thermostat included
- Inverter Technology
- Energy Efficient
- Flexible air return
- Fast heating & cooling
- Intelligent defrosting
- 10 year labor warranty included
- Conforms to UL Std. 60335-1, 60335-2-40
- Certified to CSA Std. C22.2 No. 60335-1, 60335-2-40
- Intertek #3097844
Manuals
Manuals:
| Brochure |
| Install Manual |
| Remote Manual |
| Service Manual |
| Warranty Doc |
Specifications
Specifications:
|
Dimensions |
44" D x 49.25" H x 44" W |
|
SEER2 |
17 |
|
EER2 |
10.6 |
|
COP 47 |
10.86 |
|
HSPF2 |
8.3 |
|
Tonnage |
5 |
|
Cooling Capacity (BTU) |
56000 |
|
Heating Capacity (BTU) |
57000 |
|
Voltage (V) |
208-230 |
|
Phase |
1 |
|
Cycle |
60 |
|
Max Fuse Breaker (A) |
45 |
|
Min Circuit Ampacity (A) |
39.1 |
|
Full Load |
5.4 |
|
Refrigerant Type |
R410A |
|
Refrigerant Volume (OZ) |
236.4 |
|
Decibel Rating (DBA) |
68 |
|
Decibel Rating High (DBA) |
78 |
|
Inverter |
DC |
|
Min Ambient Cool (F) |
23 ~ 125 |
|
Min Ambient Heat (F) |
-22~75.2 |
|
Compressor Motor Type |
Inverter Rotary |
|
Condenser Fan Motor Type |
DC |
|
Condenser Fan Motor HP |
1 |
|
Condenser Fan Motor RPM |
720 |
|
Blower Motor Type |
DC |
|
Blower Motor HP |
1 |
|
Blower Motor RPM |
1060 |
|
Filter Type |
Washable Aluminum |
|
Filter Size |
29 5/16 x 13 1/4 x 3/5 in |
|
Auxiliary Heater Included |
no |
| Auxiliary Heater Available |
yes |
| Auxiliary Heater Sizes |
5kW, 10kW, 15kW, 20kW |
|
Low Voltage Compensation |
yes |
|
Overload Protection |
yes |
|
Adjustable Thermostat |
yes |
|
WIFI Compatibility |
no |
|
ETL Listed |
yes |
|
ETL Certified |
yes |
|
Energy Star Certified |
yes |
|
AHRI Certified |
yes |
|
Base Parts Warranty |
10 years |
|
Base Compressor Warranty |
10 years |
|
Base Labor Warranty |
10 Years |
|
Net Weight (Lbs) |
628 |
|
Gross Depth (In) |
44.63 |
|
Gross Height (In) |
50.81 |
|
Gross Width (In) |
44.63 |
|
Gross Weight (Lbs) |
650 |
