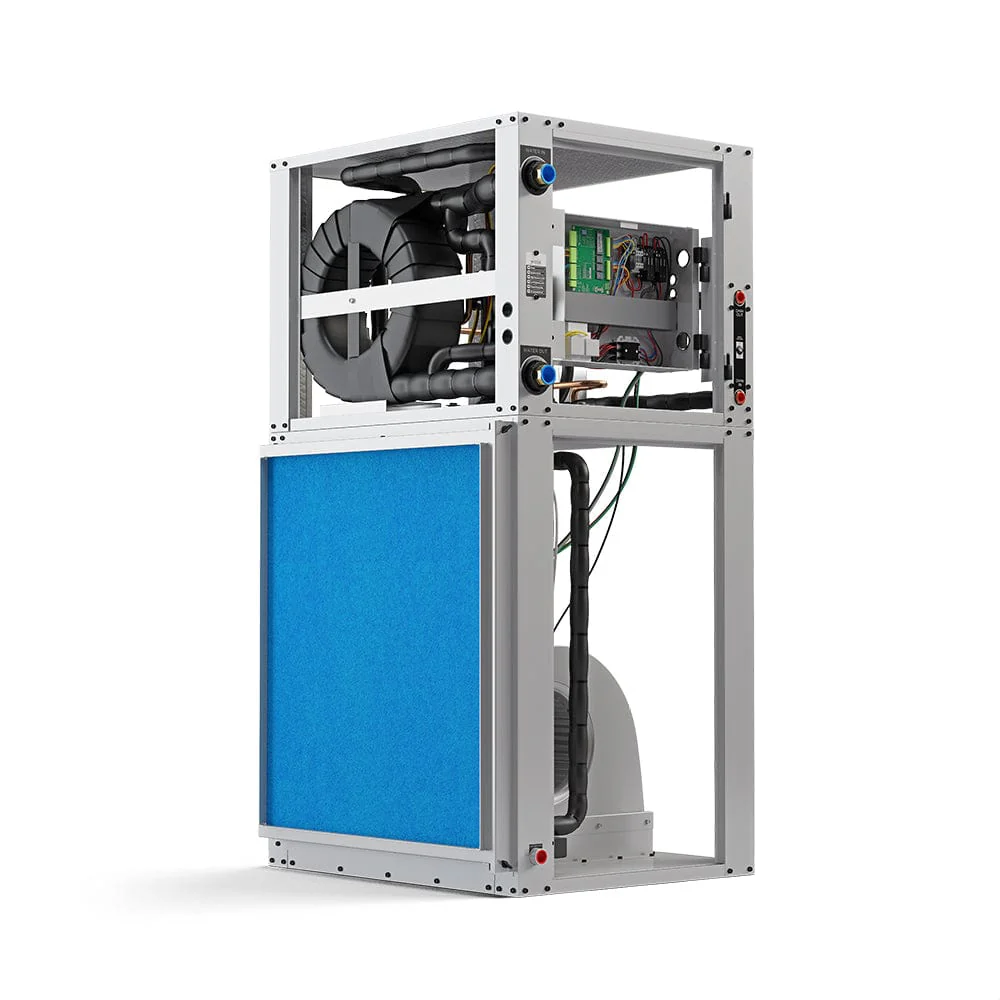

MRCOOL GeoCool 60K BTU 5 Ton Downflow Heat Pump GCHPD060TGTANXL
MRCOOL GeoCool 60K BTU 5 Ton Downflow Left Return Geothermal Heat Pump GCHPD060TGTANXL
Why should you choose the MRCOOL GeoCool 60K BTU 5 Ton Downflow Left Return Geothermal Heat Pump (GCHPD060TGTANXL) for your heating and cooling needs?
The MRCOOL GeoCool 60K BTU 5 Ton Geothermal Heat Pump offers exceptional efficiency and performance with its 60,000 BTU capacity, providing powerful heating and cooling. Its downflow left return design ensures optimal airflow and space utilization. Utilizing geothermal energy, it delivers significant energy savings and eco-friendly operation. Ideal for year-round comfort, this heat pump combines advanced technology with reliable performance to enhance your home’s climate control efficiently.
Features:
- Energy Star - Geothermal is almost always Energy Star Certified... and GeoCool exceeds the standards for Geothermal.
- Safety - No danger from gas leaks or carbon monoxide poisoning.
- Most Energy Efficient - The GeoCool® Heat Pump can move more than 3 units of heat energy for every unit of electrical energy used to power the system
- Flexible Application - With Horizontal, Downflow and Upflow options, GeoCool® systems can also be easily subdivided or expanded to meet the demand of most applications.
- Lower Maintenance Costs - Protected indoors or underground, GeoCool® premium equipment is built to run efficiently for decades.
- Variable Speed - The GeoCool® variable speed ECM fan motor adjusts to system pressure and moderates air flow for consistent comfort.
- Single System - GeoCool® Heat Pumps provide both heating and cooling in one system.
- Reliable Durability - Geothermal units can have a life expectancy of up to 30 years. GeoCool® systems have a 10 year warranty on parts and compressor when registered.
- Eco-Friendly - Ground source heating and cooling is naturally renewable and non-polluting.
Manuals
Manuals:
Specifications
Specifications:
| Product Dimensions | 25.75"W x 32"D x 64"H |
| Product Weight | 415 lbs |
| EER | Ground Water (FULL) 24.00 / Ground Loop (FULL) 15.17 |
| EER Part Load | Ground Water (PART) 31.00 / Ground Loop (PART) 23.17 |
| COP 47 | Ground Water (FULL) 4.90 / Ground Loop 4.00 (FULL) |
|
COP 47 Part Load |
Ground Water (PART) 5.20 / Ground Loop 4.60 (PART) |
| HSPF | Ground Water Fluid Flow Rate | COOLING: (PART) 14 - 15 (FULL) / HEATING: (PART) 14 - 15 (FULL) |
| AFUE | Ground Loop Fluid Flow Rate | COOLING: (PART) 14 - 15 (FULL) / HEATING: (PART) 14 - 15 (FULL) |
| CFM | COOLING (PART) 1950 - 2300 (FULL) / HEATING (PART) 1850 - 2200 (FULL) |
| Tonnage | 5 |
| Cooling Capacity | Ground Water (PART) 55200 - 72500 (FULL) / Ground Loop (PART) 53400 - 66500 (FULL) |
| Heating Capacity | Ground Water (PART) 47000 - 64500 (FULL) / Ground Loop (PART) 41000 - 46900 (FULL) |
| Voltage | 230V/60Hz/64A |
| Phase | 1 |
| Cycle | 60 |
| Stage | Two-Stage |
| Max Fuse Breaker |
64(W/O Desupe |
| Min Circuit Ampacity | 38.6 |
| Configuration | Left Return Downflow |
| Color | Gray |
| Max Coverage Area | 2,500 square feet |
| Refrigerant Type | R-410A |
| Compressor Motor Type | Scroll |
| Blower Motor Type | Axial Flux (No Shaft) BLA |
| Blower Motor HP | 3/4 |
| Filter Type | Replaceable |
| Contains | Electronics Chemicals Aerosol Compressed Gas |
| Proposition 65 Warning | Yes |
| Certifications | ETL Listed Energy Star AHRI |
| Warranty | Registered 10 Year Parts Warranty |
Â
