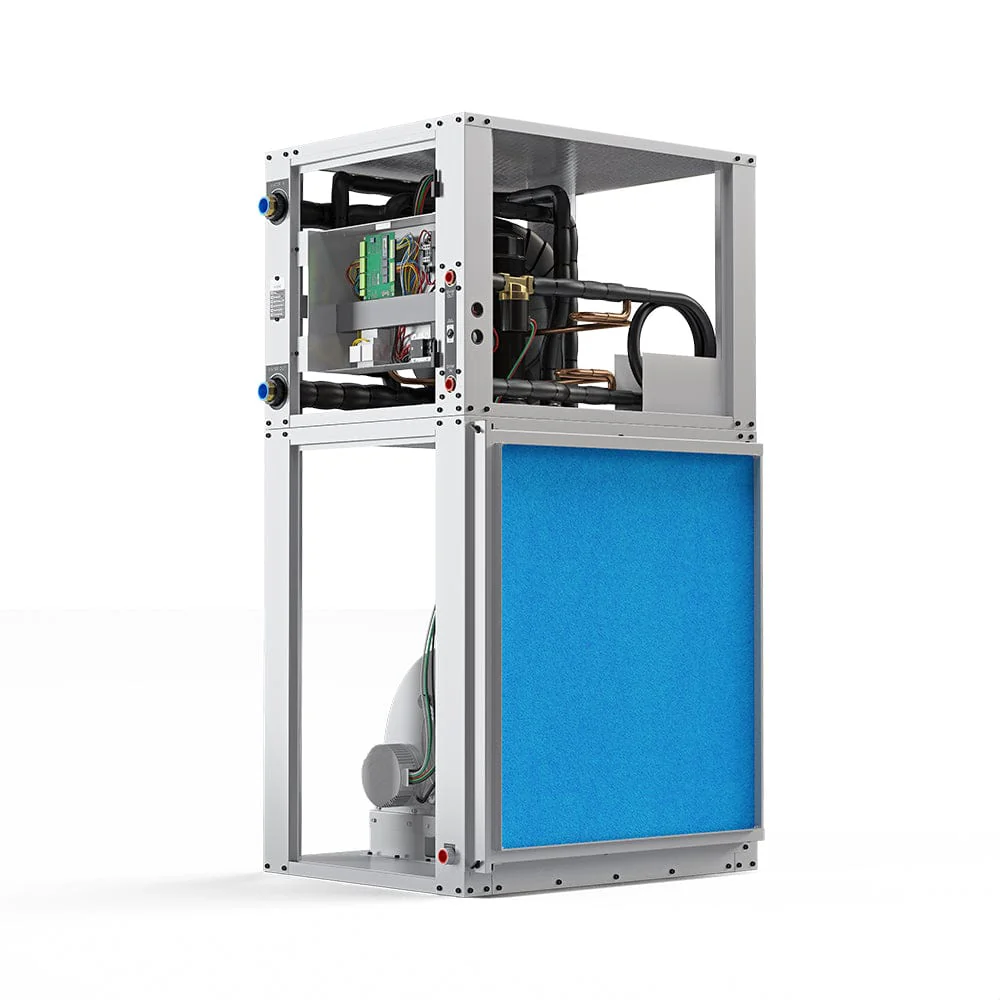

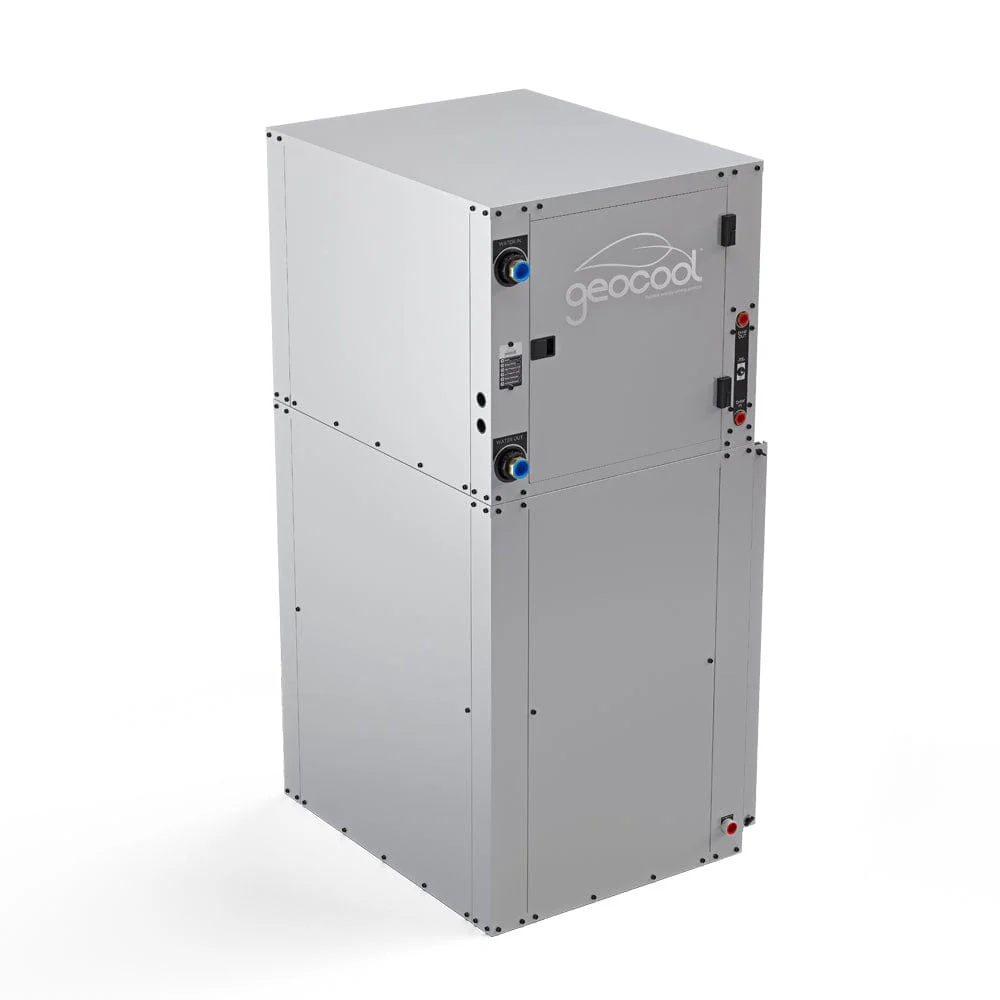

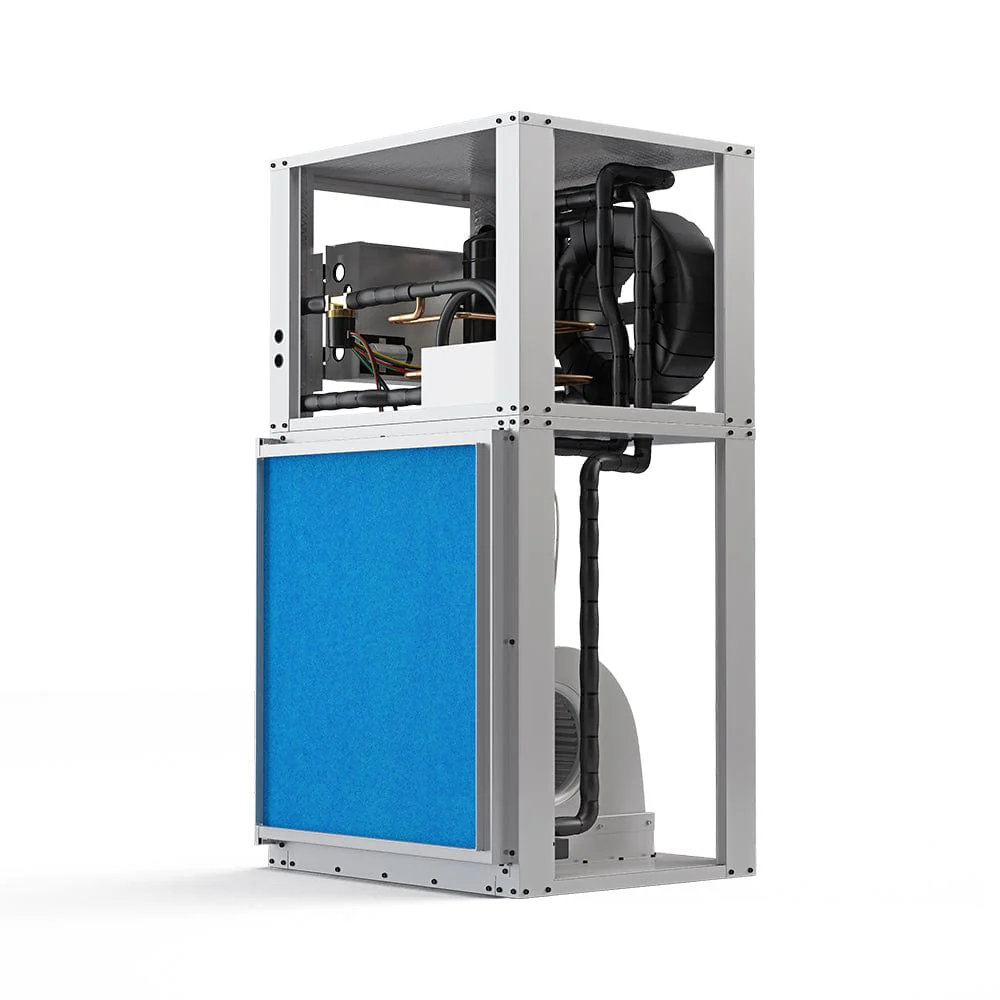

MRCOOL GeoCool 36K BTU Downflow Heat Pump GCHPD036TGTANXR
MRCOOL GeoCool 36K BTU Left Turn Downflow Geothermal Heat Pump GCHPD036TGTANXR
Why is the MRCOOL GeoCool 36K BTU 3 Ton Downflow Two-Stage Right Return Geothermal Heat Pump GCHPD036TGTANXR the ideal choice for efficient and reliable home climate control?
The MRCOOL GeoCool 36K BTU 3 Ton Downflow Two-Stage Right Return Geothermal Heat Pump GCHPD036TGTANXR is ideal for efficient and reliable home climate control. With a 36K BTU capacity and a two-stage system, it offers powerful and precise temperature management. The downflow design with a left return ensures flexible installation options. Leveraging geothermal energy, this unit reduces utility costs and environmental impact, providing dependable, eco-friendly comfort for medium to large homes.
MRCOOL GeoCool Features:
- Energy Star - Geothermal is almost always Energy Star Certified... and GeoCool exceeds the standards for Geothermal.
- Safety - No danger from gas leaks or carbon monoxide poisoning.
- Most Energy Efficient - The GeoCool® Heat Pump can move more than 3 units of heat energy for every unit of electrical energy used to power the system
- Flexible Application - With Horizontal, Downflow and Upflow options, GeoCool® systems can also be easily subdivided or expanded to meet the demand of most applications.
- Lower Maintenance Costs - Protected indoors or underground, GeoCool® premium equipment is built to run efficiently for decades.
- Variable Speed - The GeoCool® variable speed ECM fan motor adjusts to system pressure and moderates air flow for consistent comfort.
- Single System - GeoCool® Heat Pumps provide both heating and cooling in one system.
- Reliable Durability - Geothermal units can have a life expectancy of up to 30 years. GeoCool® systems have a 10 year warranty on parts and compressor when registered.
- Eco-Friendly - Ground source heating and cooling is naturally renewable and non-polluting.
Manuals
MRCOOL GeoCool Manuals:
Specifications
MRCOOL GeoCool Specifications:
| Product Dimensions | 25.75"W x 32"D x 56"H |
| Product Weight | 350 lbs |
| EER | Ground Water (FULL) 27.20 / Ground Loop (FULL)17.86 |
| EER Part Load | Ground Water (PART) 35.70 / Ground Loop (PART) 25.84 |
| COP 47 | Ground Water (FULL) 5.30 / Ground Loop 4.40 (FULL) |
|
COP 47 Part Load |
Ground Water (PART) 5.60 / Ground Loop 4.80 (PART) |
| HSPF | Ground Water Fluid Flow Rate | COOLING: (PART) 8 - 9 (FULL) / HEATING: (PART) 8 - 9 (FULL) |
| AFUE | Ground Loop Fluid Flow Rate | COOLING: (PART) 8 - 9 (FULL) / HEATING: (PART) 8 - 9 (FULL) |
| CFM | COOLING (PART) 1150 - 1350 (FULL) / HEATING (PART) 1100 - 1100 (FULL) |
| Tonnage | 3 |
| Cooling Capacity | Ground Water (PART) 33000 - 43000 (FULL) / Ground Loop (PART) 30300 - 39000 (FULL) |
| Heating Capacity | Ground Water (PART) 27500 - 38000 (FULL) / Ground Loop (PART) 24000 - 26900 (FULL) |
| Voltage | 230V/60Hz/42A |
| Phase | 1 |
| Cycle | 60 |
| Stage | Two-Stage |
| Max Fuse Breaker | 42.1(W/O Desupe |
| Min Circuit Ampacity | 26.4 |
| Configuration | Right Return Downflow |
| Color | Gray |
| Max Coverage Area | 1500 |
| Refrigerant Type | R-410A |
| Compressor Motor Type | Scroll |
| Blower Motor Type | Axial Flux (No Shaft) BLA |
| Blower Motor HP | 3/4 |
| Filter Type | Replaceable |
| Contains | Electronics Chemicals Aerosol Compressed Gas |
| Proposition 65 Warning | Yes |
| Certifications | ETL Listed Energy Star AHRI |
| Warranty | Registered 10 Year Parts Warranty |
