MRCOOL 60K BTU Complete Unitary System CENTRAL-60-HP-230-00
MRCOOL Central Ducted 60K BTU 5 Ton Complete Unitary System Air Handler & Condenser Heat Pump CENTRAL-60-HP-230-00
Why choose the MRCOOL Central Ducted 60K BTU Complete Unitary System Air Handler & Condenser Heat Pump?
The MRCOOL Central Ducted 60K BTU Complete Unitary System offers powerful, efficient heating and cooling with a single, integrated solution. Its high capacity and advanced design ensure reliable climate control for large spaces, making it ideal for both residential and commercial applications. Buy from Luxury Appliances Direct for superior performance and service.
MRCOOL Central Ducted Features:

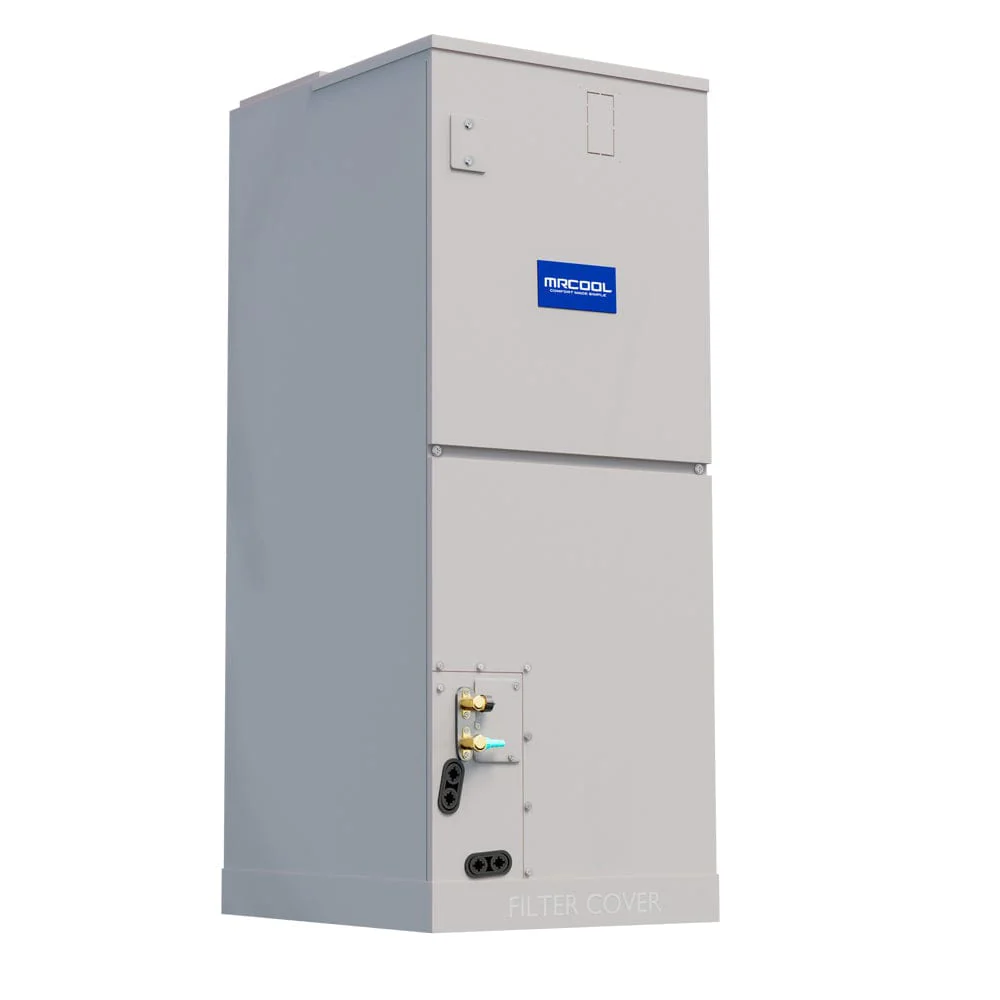

- High Static. The Central Ducted Air Handler is made to accommodate high static requirements for manufactured and modular homes.
-
Multi-Positional. The unit is compatible with upflow, counterflow and horizontal configurations.
- Thermostat and Remote Included. Wired thermostat (.78 in x 4.72 in x 4.72in) has a variety of options to keep your home the temperature you want!
- Follow Me Function. The Central Ducted Unit will track the air temperature around you using the remote to ensure you receive maximum comfort.
- 10 year parts and labor warranty. This system comes with a Standard 10-year parts and labor warranty and 10-year compressor warranty.
- Optional heating kit available
- R-410A environmentally friendly refrigerant
Manuals
MRCOOL Central Ducted Manuals:
Specifications
MRCOOL Central Ducted Specifications:
| Condenser Dimensions | 37.48"W x 16.34"D x 52.48"H |
| Condenser Weight | 217.15 lbs |
| Air Handler Dimensions | 21.02"W x 24.49"D x 52.99"H |
| Air Handler Weight | 164.02 lbs |
| SEER | 18 |
| EER | 10.3 |
| HSPF | hspf4/hspf5: 9.2/7.6 |
| CFM | 1582.35 / 1358.82 / 1135.29 |
| Cooling Capacity | 57,000 BTU |
| Heating Capacity | 60,000 BTU |
| Voltage | Requires a minimum of 208-230V/60HZ/60A (please check your home meets this electrical requirement prior to purchase) |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker | 60 |
| Min Circuit Ampacity | 34 |
| Color | Gray |
| Rate Load | 2.4 |
| Zone Capacity | 1 |
| Coverage Area | 2,500 square footage |
| Refrigerant Type | R410A |
| Refrigerant Volume | 172.84 oz |
| Decibel Rating | 52.5/49/44 |
| Decibel Rating Low | 44 |
| Decibel Rating High | 52.5 |
| Air Flow Direction | Multi-position |
| Min Ambient Cool | 5~122F |
| Min Ambient Heat | 5~75.2F |
| Lineset Included | No |
| Liquid Line Size | 3/8 in |
| Suction Line Size | 7/8 in |
| Compressor Motor Type | Rotary |
| Condenser Fan Motor RPM | 900/850/650 |
| Filter Type | Replaceable |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | Yes |
| Auxiliary Heater Sizes | 10kw,15kw, 20kw |
| Adjustable Thermostat | Yes |
| Modes | Fan Sleep Auto Cool |
| Includes | Remote Battery |
| App Compatibility | No |
| Certificates | AHRI |
| Warranty | 10 years parts and labor |
