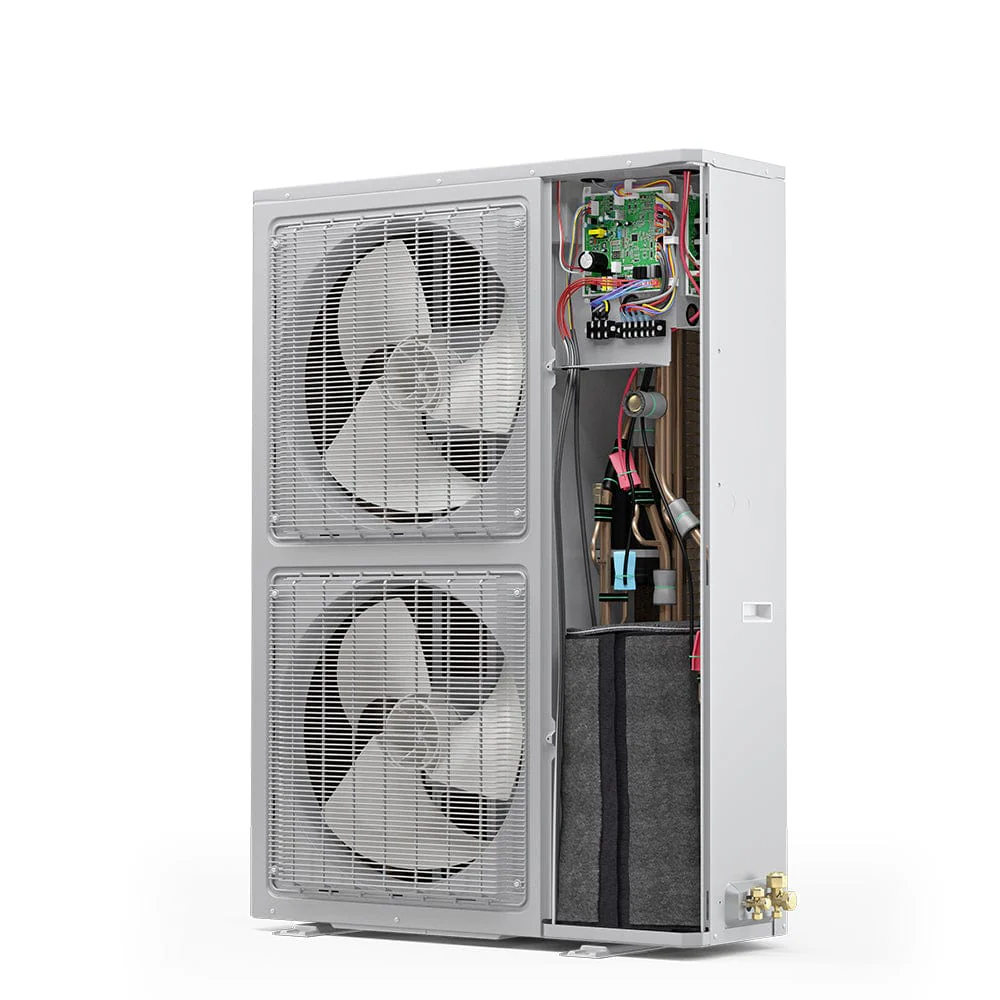

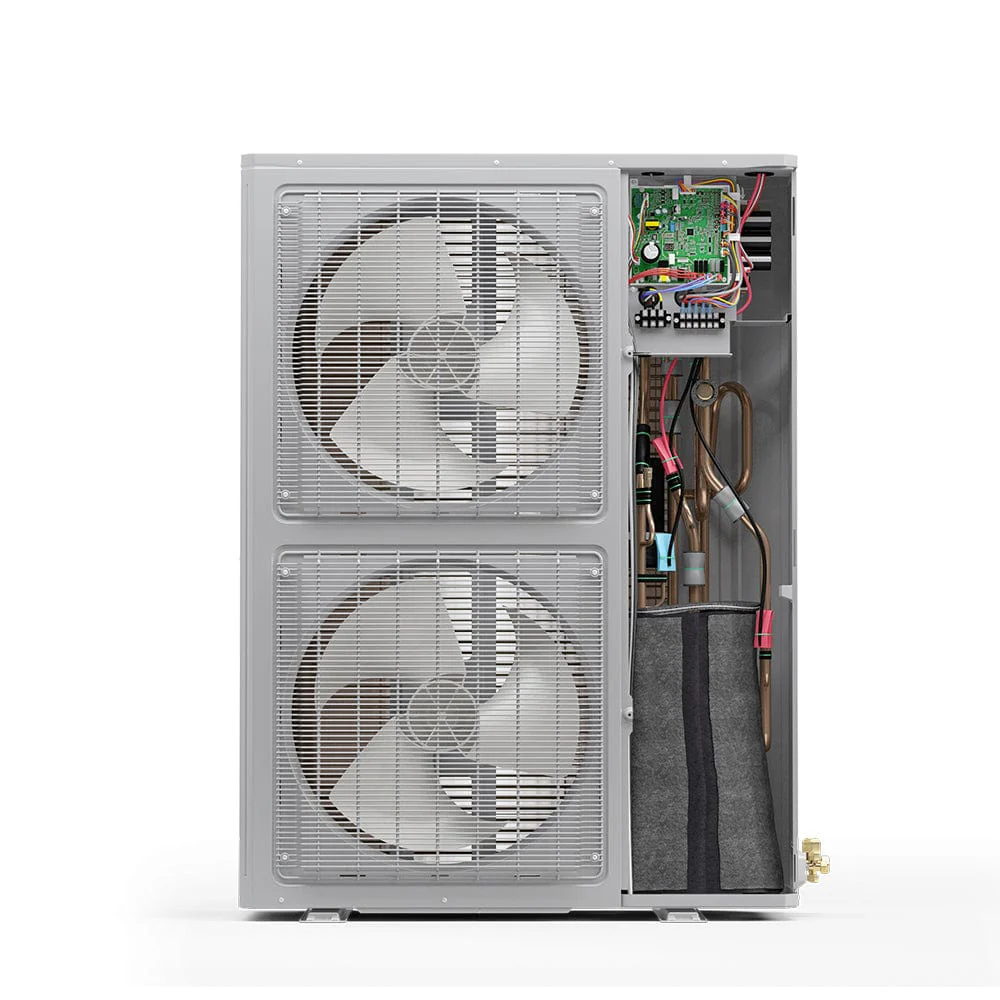

MRCOOL Universal Series DC Inverter 4-5 Ton Condenser MDUO18048060
MRCOOL Universal Series DC Inverter 4-5 Ton Heat Pump Condenser MDUO18048060
Why should you choose the MRCOOL Universal Series DC Inverter 4-5 Ton Heat Pump Condenser MDUO18048060 for your HVAC needs?
The MRCOOL Universal Series DC Inverter 4-5 Ton Heat Pump Condenser offers exceptional efficiency with its advanced inverter technology, providing precise temperature control and significant energy savings. Its versatile design allows for integration into various HVAC systems, making it suitable for both residential and commercial applications. The high SEER rating ensures reduced operational costs while delivering reliable and consistent performance throughout the year.
Features:
- Up to 18 SEER
- Ultra Wide Operating Temperature Range
- Gas Furnace Not Required
- Slim design allows more storage for warehouse inventory
- Compatible with any third party air handler and thermostat including WiFi/Nest
- Ideal for zero lot line homes, strict sound restriction, conventional installations, and unit replacements
- Rapid cooling and heating
- Internal Fan Blade Creates Low Noise
- Maximum savings while running
- Factory Charged
- ETL and AHRI certified
Manuals
Manuals:
- User Manual
- Product Brochure
- Performance Specifications
- Service Manual
- Warranty Document
- Accessory Manual
- AHRI Certification
- Energy Guide
Specifications
Specifications:
| Product Dimensions | 39 3/8"W x 14 1/2"D x 53 3/4"H |
| Product Weight | 308.7 lbs |
| SEER | up to 18 |
| Max SEER | 18 |
| EER | 10.5 |
| HSPF | 10 |
| CFM | 4700 |
| Tonnage | 4-5 Ton |
| Cooling Capacity | 54,000 BTU |
| Heating Capacity | 54,000 BTU |
| Electrical Requirements | Requires a minimum of 208V-230V/60HZ/35A-45A (please check your home meets this electrical requirement prior to purchase) |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker | 35 A |
| Min Circuit Ampacity | 24 A |
| Color | Gray |
| Refrigerant Type | R-410A |
| Refrigerant Volume | 220.48 oz |
| Decibel Rating | 58 dBA |
| Inverter | DC |
| Min Ambient Cool | 5F - 129.2F |
| Min Ambient Heat | -22F - 75.2F |
| Lineset Included | No |
| Line Set Length | 15ft, 25ft, 35ft, 50ft |
| Max Lineset Length | 164 FT / 5 |
| Lineset Fitting Type | Pre-Flared/Sweat & Quick Connect |
| Liquid Line Size | 3/8 in. |
| Suction Line Size | 3/4 in. |
| Compressor Motor Type | Inverter Rotary |
| Condenser Fan Motor Type | Direct Drive |
| Metering Device | EEV |
| Auxiliary Heater Available | Yes |
| Certifications | ETL Energy Star AHRI |
| Warranty |
10 Year Registered Limited Warranty 5 Years Parts |
| Restricted States | No |
