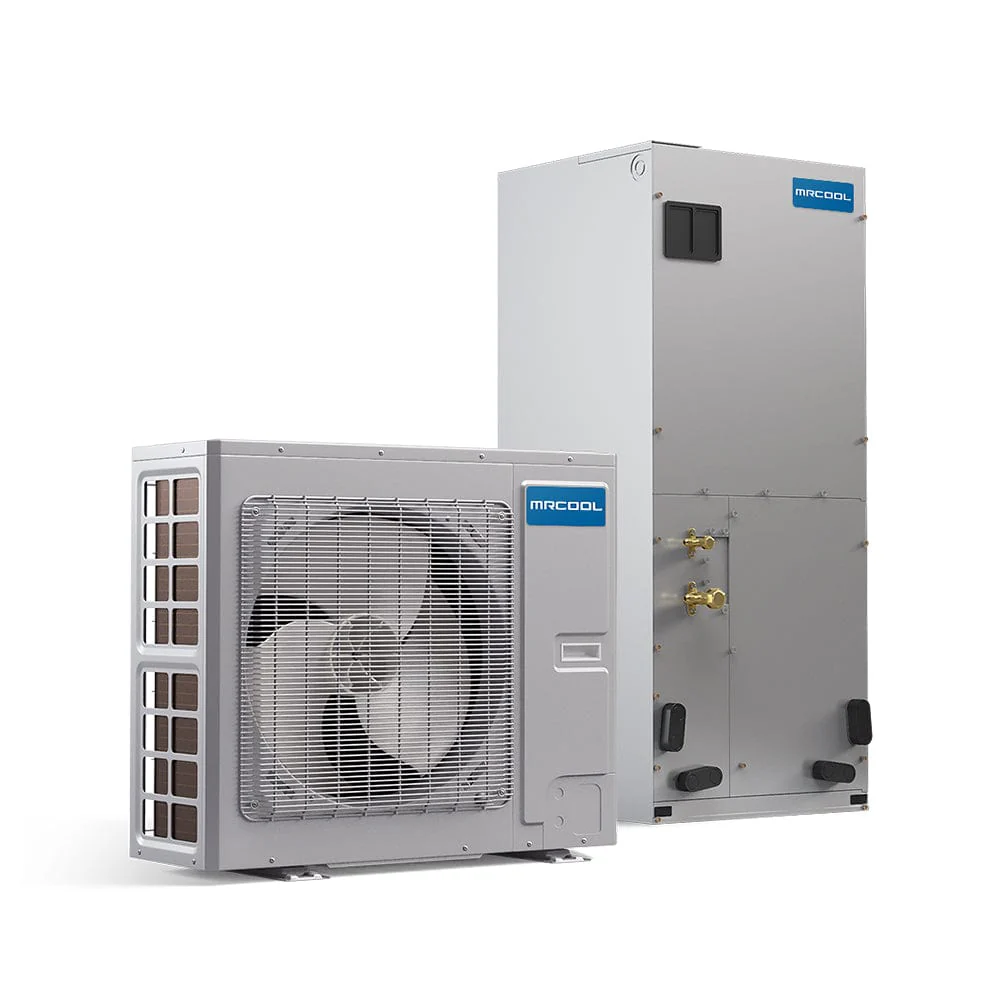

The Universal Series DC Inverter Complete System High ESP Heat Pump, with 2-3 Ton capacity and up to 20 SEER, offers exceptional energy efficiency and performance. Utilizing R410A refrigerant and operating on 208-230V/1Ph/60Hz, this heat pump provides effective cooling and heating while minimizing energy consumption. Its high static pressure (ESP) capability ensures consistent airflow and comfort, making it an excellent choice for versatile and efficient climate control in various settings.

This System includes:

• MRCOOL Universal Series Heat Pump 36K BTU Condenser 2-3 Ton, MDUO18024036
• MRCOOL Universal High ESP 36,000 BTU Air Handler, MDUI18024036E

Note: It does not include line sets.

Features:

Condenser

The 2 to 3 Ton 20 SEER MrCool Universal Central Heat Pump Condenser is a cutting-edge HVAC technology from an innovation leader. This unit provides superb comfort while running at an extremely quiet dB, rapid cooling and heating, and maximum savings while running on end.

• 2 Ton Mode: 20 SEER or 3 Ton Mode: 18 SEER
• Ultra Wide Operating Temperature Range
• Compatible with any third-party air handler and thermostat including WiFi/Nest/Honeywell

• Rapid cooling and heating
• Internal Fan Blade Creates Low Noise
• Factory Charged and environmentally friendly R410
• ETL and AHRI-certified

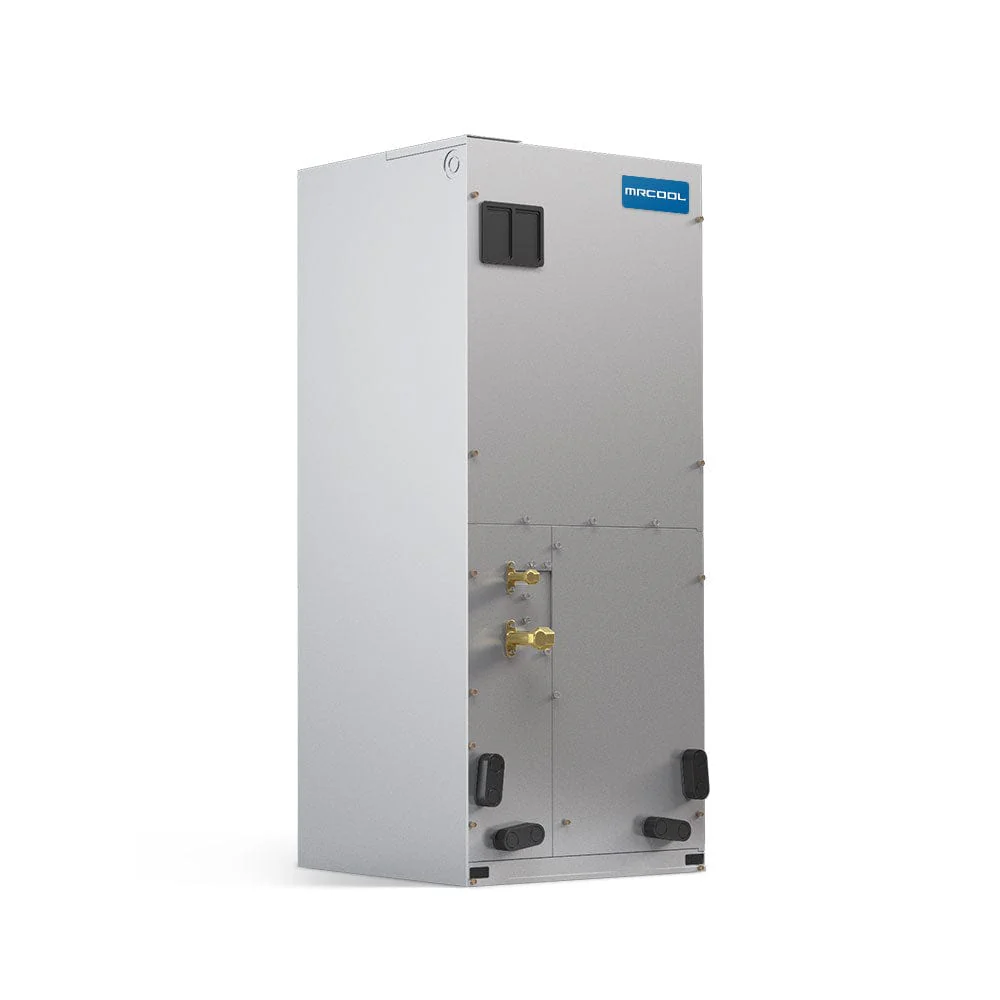

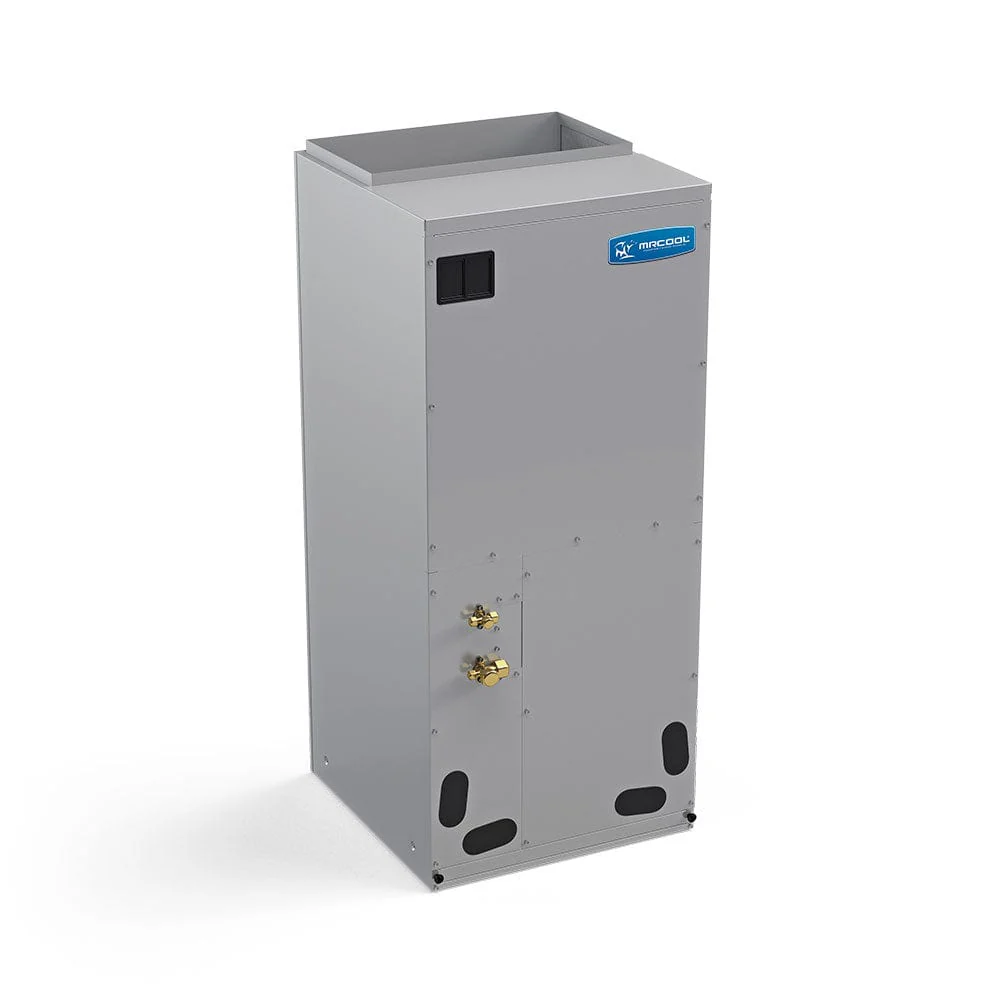

Air Handler

This air handler is equipped with a powerful and efficient DC fan motor that includes a fan with blades that are designed for quiet operation while still providing dynamic performance.

• Up to 18 SEER
• 3 Connection Types: Patented Pre Charged No-Vac, Sweat Braze Fitting and Flare Fitting
• Fire-Proof Electrical Box Design Offers Anti-Electric Shock Reserved Installation Space for the Circuit Breaker
• Easy to Clean Metal Filter Protects Against Fire, Corrosion, and Deterioration
• Multi-Position Installation: Upflow or Horizontal
• 2-Step Condensation Protection

Manuals

Manuals:

Specifications

Specifications:

Condenser Specifications

Product Dimensions	37"W x 18"D x 32.3"H
Cooling Capacity	36,000 BTU
Heating Capacity	36,000 BTU
Compressor	Inverter
Line Set Connection	Quick Connect, Flared or Sweat
Warranty	10 Year Registered Limited Warranty 5 Years Parts
Electrical Requirements	Requires a minimum of 208V-230V/60HZ/24A-35A (please check your home meets this electrical requirement prior to purchase)

Air Handler

Product Dimensions	21.3"W x 21.3"D x 48.25"H
Mount Type	Floor Mounted
Cooling Capacity	36,000 BTU
Heating Capacity	36,000 BTU
Coverage Area	Up to 1,500 square feet
Warranty	10 Year Parts
Electrical Requirements	Requires a minimum of 208V-230V/60HZ/4A-15A (please check your home meets this electrical requirement prior to purchase)
