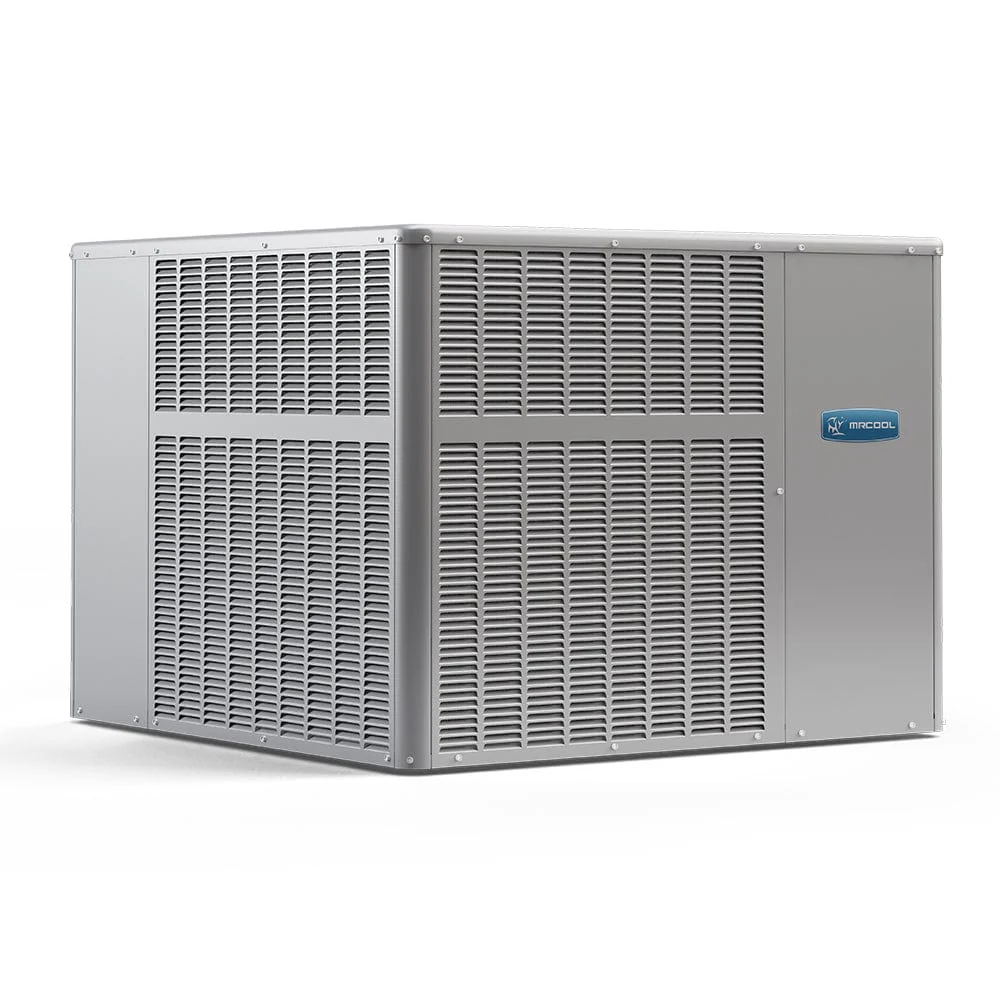

MRCOOL Signature 5 Ton Louvered Packaged A/C MPC601M414A
MRCOOL Signature 14 SEER 5 Ton Louvered Packaged Air Conditioner, MPC601M414A
Why should you choose the MRCOOL Signature 14 SEER 5 Ton Louvered Packaged Air Conditioner MPC601M414A for your cooling needs?
The MRCOOL Signature 14 SEER 5 Ton Louvered Packaged Air Conditioner offers reliable and efficient cooling with a 14 SEER rating, providing substantial energy savings. Its louvered design ensures durable protection for the condenser coils, extending the unit's lifespan. This all-in-one packaged system simplifies installation and maintenance, making it a practical choice for comprehensive cooling in residential or commercial spaces.
Single Phase Packaged A/C Only
MRCOOL Signature Louvered Packaged A/CĀ Features:
- Approved for installation in manufactured housing and mobile homes
- Multi-Positional Application
- Environmentally friendly R410A refrigerant
- Insulated to minimize heat loss and reduce sound
- Efficient multispeed motor for wide airflow range
- Low ambient kits available
- Utility connections on right side
- One piece base design for strength and stability
- Rounded corners for safety and an attractive, clean appearance
- Available in 2, 2.5, 3, 3.5, 4, and 5 TON capacities
- All units ETL and ETLC approved and AHRI Certified
- One piece no leak top design
Manuals
MRCOOL Signature Louvered Packaged A/CĀ Manuals:
Specifications
MRCOOL Signature Louvered Packaged A/CĀ Specifications:
| Product Dimensions | 46.8"W x 55.27"D x 40.88"H |
| Product Weight | 445 lbs |
| Unit Type | Package AC |
| SEER | 14 |
| EER | 11 |
| CFM | 1800 |
| Tonnage | 5 |
| Cooling Capacity | 57000 |
| Voltage | Requires a minimum of 208V-230V/60HZ/ 60A (please check your home meets this electrical requirement prior to purchase) |
| Phase | 1 |
| Cycle | 60 |
| Max Fuse Breaker | 60 |
| Min Circuit Ampacity | 6.4 |
| Color | Gray |
| Rated Load | 16.9 |
| Max Coverage Area | 2500 |
| Refrigerant Type | R-410A |
| Refrigerant Volume | 125 |
| Decibel Rating | 78 |
| Min Ambient Heat | 0 |
| Compressor Motor Type | Single Stage |
| Condenser Fan Motor Type | ECM |
| Condenser Fan Motor HP | 1/4 |
| Blower Motor Type | ECM |
| Blower Motor HP | 1 |
| Blower Motor Speeds | Multi-Speed |
| Blower Motor RPM | 1120-2090 |
| Filter Type | Replaceable |
| Filter Size | 20 x 20 |
| Metering Device | TXV |
| Auxiliary Heater | Yes |
| Auxiliary Heater Sizes | 5kw, 7.5kw, 10kw, 15kw, 20kw |
| Certifications | ETL AHRI |
| Warranty | 10-Year Parts Limited Warranty |
| Base Warranty | 5 year base limited parts warranty |
Ā
