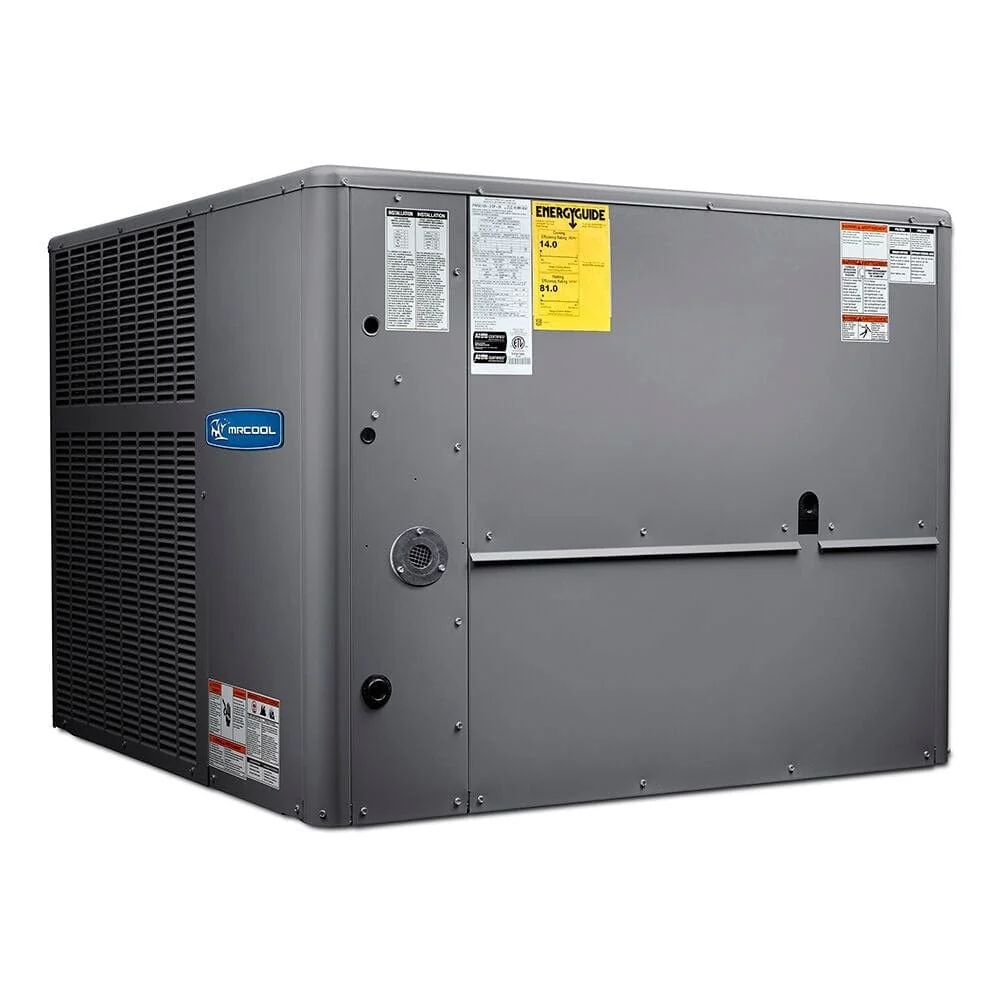

MRCOOL Signature 4 Ton Packaged A/C & Gas Furnace MPG48S108M414A
MRCOOL Signature 4 Ton 14 SEER R-410A 115,000 BTU Heat Horizontal or Down Flow Package A/C and Gas Furnace MPG48S108M414A
Why is the MRCOOL Signature 4 Ton Packaged A/C & Gas Furnace a top choice for homeowners?
The MRCOOL Signature 4 Ton Packaged A/C & Gas Furnace stands out as a premier option for homeowners due to its powerful and efficient climate control capabilities. This all-in-one unit combines both cooling and heating in one package, simplifying installation and maximizing space efficiency. With advanced technology designed for optimal energy performance, it helps reduce energy costs while delivering consistent, reliable comfort throughout the year. Its robust design ensures durability and long-term performance, making it a valuable investment for maintaining a comfortable home environment.
MRCOOL Signature Package A/C and Gas Furnace Features
- Warranty is 15 year on heat exchanger and 10 years on parts when registered
- Insulated low profile cabinet with rounded corners and one piece base is stable, safe and attractive
- Features a high efficiency compressor designed to operate smoothly, quietly, and consistently
- Architecturally compatible to fit a small footprint, convenient for installation and maintenance
- All units ETL and ETLC approved and AHRI certified
- Optional LP & High Altitude Kits available
- Approved for installation in manufactured housing and mobile homes
- Aluminized Tri-Dimple tubular heat exchanger for increased efficiency
- Uses evironmentally friendly R410A refrigerant
- Efficient multi-speed motor for wide airflow range
- Made in the USA
- 81% AFUE
Manuals
MRCOOL Signature Package A/C and Gas FurnaceĀ Manuals:
| Brochure |
| Install Manual |
| Specs |
| Owner Manual |
| Warranty Doc |
Ā
Specifications
MRCOOL Signature Package A/C and Gas FurnaceĀ Specifications:
|
Dimensions |
55.27" D x 40.88" H x 46.8" W |
|
SEER |
14 |
|
EER |
11 |
|
AFUE |
81% |
|
CFM |
1600 |
|
Tonnag |
4 |
|
Cooling Capacity |
45500 |
|
Heating Capacity |
87500 |
|
Fuel Type |
Natural Gas |
|
BTU Input |
108000 |
|
BTU Output |
87500 |
|
Voltage |
208/230 |
|
Phase |
1 |
|
Cycle |
60 |
|
Stage |
Single |
|
Max Fuse Breaker |
50 |
|
Min Circuit Ampacity |
33.2 |
|
Color |
Gray |
|
Color Family |
Gray |
|
Rated Load |
16.9 |
|
Max Coverage Area |
2000 |
|
Refrigerant Type |
R-410A |
|
Refrigerant Volume |
115 |
|
Decibel Rating |
77 |
|
Min Ambient Heat |
0 |
|
Compressor Motor Type |
Scroll |
|
Condenser Fan Motor Type |
ECM |
|
Condenser Fan Motor HP |
1/4 |
|
Blower Motor Type |
ECM |
|
Blower Motor HP |
1/2 |
|
Blower Motor Speeds |
Multi-speed |
|
Blower MotorĀ RPM |
850-1640 |
|
Filter Type |
replaceable |
|
Filter Size |
20X20X1 |
|
Heat Exchanger Type |
Aluminized Tri-Dimple Tubular Heat Exchanger |
|
Ignition Type |
Direct Spark |
|
Metering Device |
Orifice |
|
LP KIT Included |
no |
|
LP KIT Available |
yes |
|
UL Reconized |
No |
|
UL Listed |
No |
|
ETL Listed |
yes |
|
ETL Certified |
no |
|
LEED Certified |
no |
|
Ashrae Compliant |
No |
|
Energy Star Compliant |
No |
|
Energy Star Compliant |
No |
|
AHRI Certified |
yes |
|
Registered Warranty |
Registered 10 Year parts Warranty |
|
Base Warranty |
5-years on parts if not registered |
|
Registered Heat Exchanger Warranty |
Registered 15 Years Heat Exchanger Warranty |
|
Base Heat Exchanger Warranty |
15-years on Heat Exchanger |
|
Has Batteries |
No |
|
Contains Electronics |
Yes |
|
Contains Chemicals |
Yes |
|
Contains Aerosol |
Yes |
|
Contains CompressedĀ GAS |
Yes |
|
Proposition 65 Warning |
Yes |
|
Restricted States |
Yes (California) |
|
Net Weight |
448 |
|
Gross Depth |
48 |
|
Gross Height |
48 |
|
Gross Width |
57.25 |
|
Gross Weight |
475 |
|
Freight Class |
125 |
Ā
