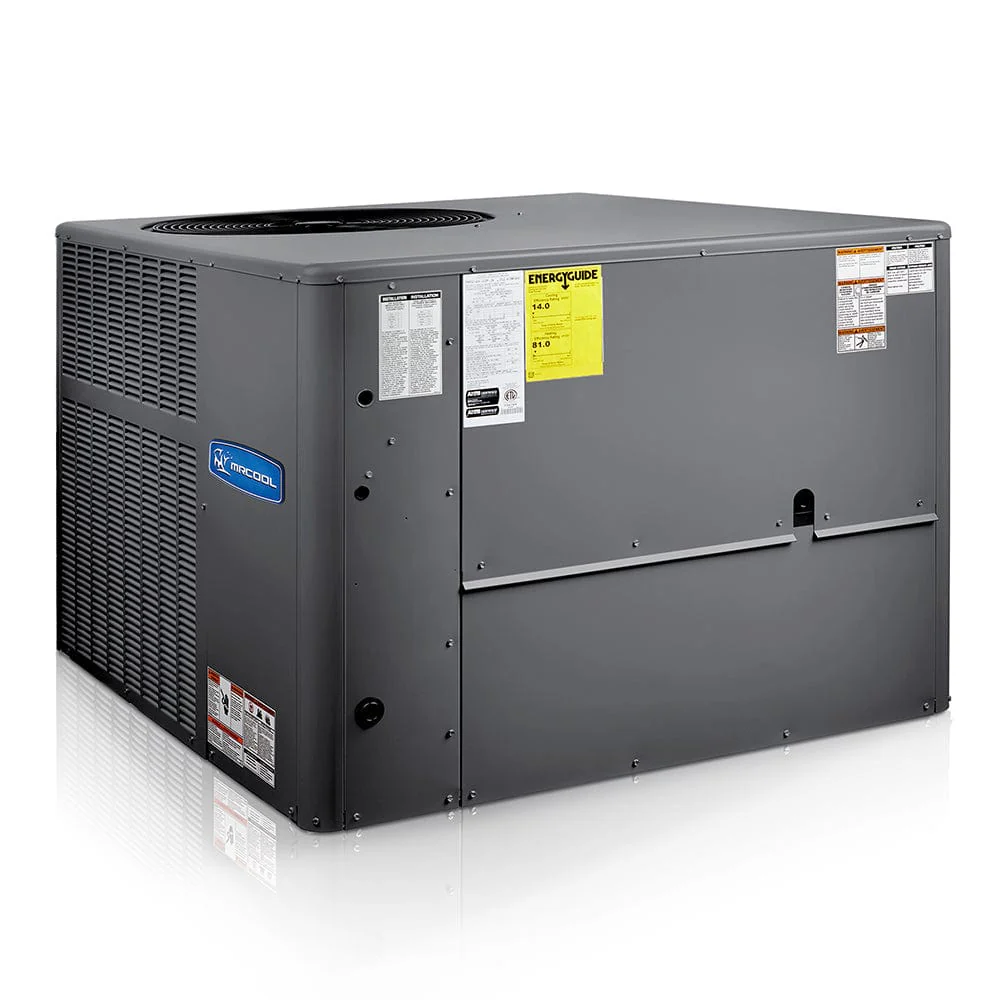

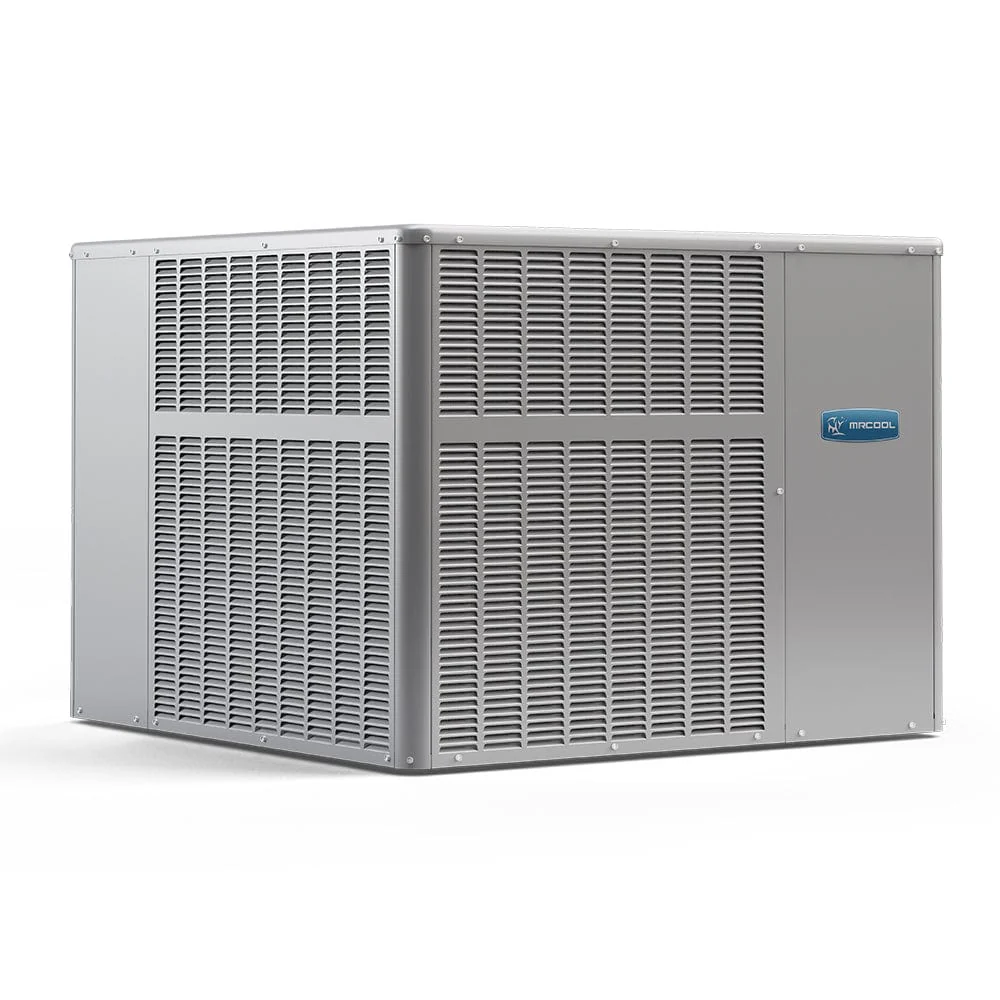

MRCOOL Signature 30K BTU Single Phase Packaged Heat Pump MPH301M414A
MRCOOL Signature 30K BTU 2.5 Ton 14 SEER R-410A Single Phase Packaged Heat Pump MPH301M414A
Why choose the MRCOOL Signature 30K BTU 2.5 Ton 14 SEER R-410A Single Phase Packaged Heat Pump MPH301M414A for your HVAC needs?
Choosing the MRCOOL Signature 30K BTU 2.5 Ton 14 SEER R-410A Single Phase Packaged Heat Pump MPH301M414A offers multiple benefits. This unit is designed for both heating and cooling, providing year-round comfort with a high SEER rating for energy efficiency. The packaged design simplifies installation and maintenance, reducing overall costs. It uses environmentally friendly R-410A refrigerant, ensuring lower environmental impact. With robust construction and a reliable warranty, this heat pump is a dependable choice for residential HVAC needs.
Features:
- Warranty is 10 years on all parts if registered, 5 years if not (no licensed tech required)
- 14 SEER efficiency
- Designed for easy and convenient installation
- Optional electric heat available
- R-410A environmentally friendly refrigerant
- Built in short cycle protection to protect the compressor
- One piece "no leak" top design
- Sloped drain for improved indoor air quality
- Louvered panel coil protection
- Insulation to minimize heat loss plus reduce sound
- Built in "quiet shift" operation during defrost on select models
- Efficient constant torque motor for wide airflow range
Manuals
Manuals:
Specifications
Specifications:
| Product Dimensions | 46.8"W x 46.77"D x 36.82"H |
| Product Weight | 324 lbs |
| Unit Type | Packaged Heat Pump |
| SEER | 14 |
| EER | 11 |
| COP 47 | 3.7 |
| HSPF | 8 |
| CFM | 1050 |
| Tonnage | 2 1/2 |
| Cooling Capacity | 28600 |
| Heating Capacity | 27000 |
| Voltage | Requires a minimum of 208V-230V/60HZ/35A (please check your home meets this electrical requirement prior to purchase) |
| Phase | 1 |
| Cycle | 60 |
| Stage | Single |
| Max Fuse Breaker | 35 |
| Min Circuit Ampacity | 21.9 |
| Color | Gray |
| Rated Load | 15 |
| Max Coverage Area | 1,250 |
| Refrigerant Type | R-410A |
| Refrigerant Volume | 96 |
| Decibel Rating | 78 |
| Min Ambient Heat | 0 |
| Compressor Motor Type | Scroll |
| Condenser Fan Motor Type | ECM |
| Condenser Fan Motor HP | 1/6 |
| Blower Motor Type | ECM |
| Blower Motor HP | 1/3 |
| Blower Motor Speeds | Multi-Speed |
| Blower Motor RPM | 530-1070 |
| Filter Type | Replaceable |
| Filter Size | 14 x 20 x 1 |
| Metering Device | TXV |
| Auxiliary Heater | Yes |
| Auxiliary Heater Sizes | 5kw, 7.5kw |
| Certifications | ETL AHRI |
| Warranty | Warranty is 10 years on all parts if registered |
| Base Warranty | 5 years if not (no licensed tech required) |
