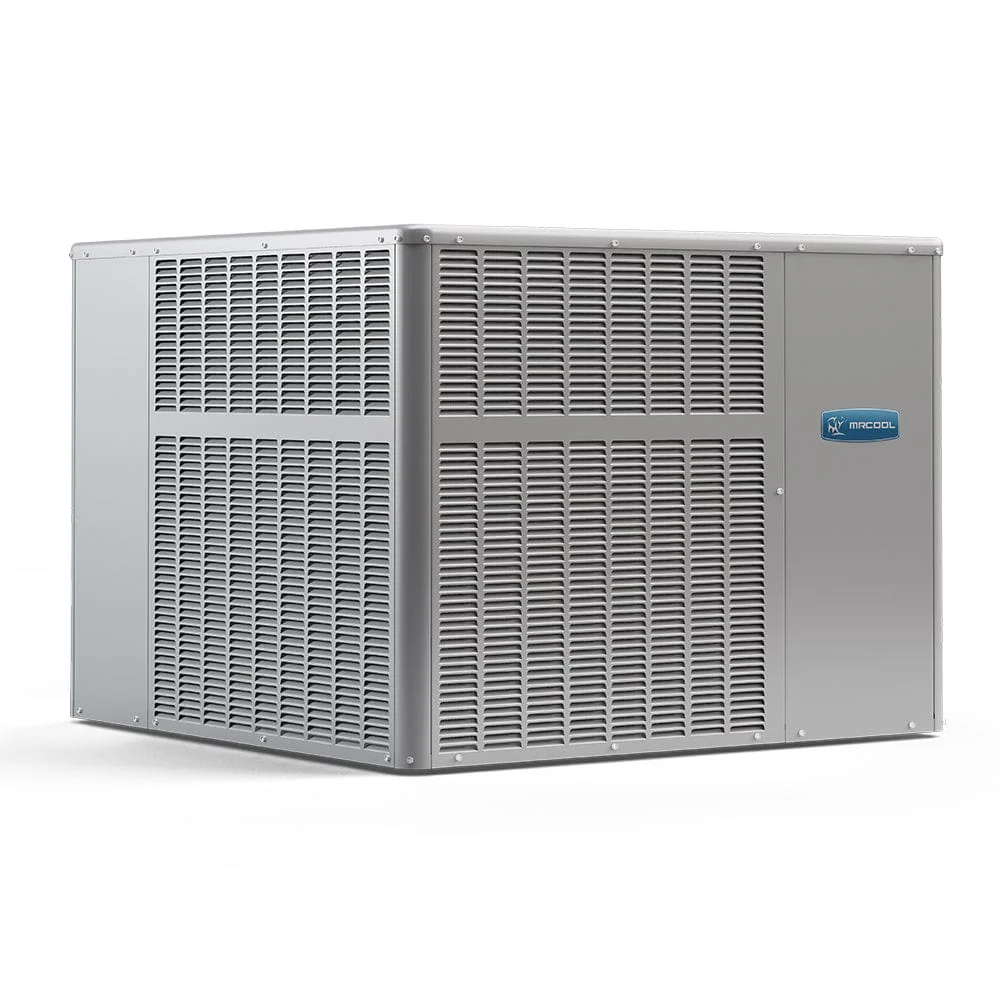

MRCOOL Signature 3.5 Ton 14 SEER Louvered Packaged A/C MPC421M414A
MRCOOL Signature 3.5 Ton 14 SEER Louvered Packaged Air Conditioner MPC421M414A
Why should you choose the MRCOOL Signature 3.5 Ton 14 SEER Louvered Packaged A/C for your home?
The MRCOOL Signature 3.5 Ton 14 SEER Louvered Packaged A/C is an excellent choice for homeowners seeking reliable and efficient cooling. This unit offers a balanced combination of performance and energy efficiency, meeting the 14 SEER standard which ensures reduced energy consumption and lower utility bills. Its compact, all-in-one design simplifies installation and maintenance, making it an ideal solution for homes with limited space. Additionally, the louvered design provides enhanced protection to the internal components,
MRCOOL Signature Louvered Packaged A/C Features
- Approved for installation in manufactured housing and mobile homes
- Multi-Positional Application
- Environmentally friendly R410A refrigerant
- Insulated to minimize heat loss and reduce sound
- Efficient multispeed motor for wide airflow range
- Low ambient kits available
- Utility connections on right side
- One piece base design for strength and stability
- Rounded corners for safety and an attractive, clean appearance
- Available in 2, 2.5, 3, 3.5, 4, and 5 TON capacities
- All units ETL and ETLC approved and AHRI Certified
- One piece no leak top design
Manuals
MRCOOL Signature Louvered Packaged A/C Manuals:
| Brochure |
| Install Manual |
| Specs |
| Owner Manual |
| Warranty Doc |
Specifications
MRCOOL Signature Louvered Packaged A/C Specifications:
|
Dimensions |
55.27" D x 40.88" H x 46.8" W |
|
SEER |
14 |
|
EER |
11 |
|
CFM |
1400 |
|
Tonnage |
3 1/2 |
|
Cooling Capacity |
40000 |
|
Voltage |
208-230 |
|
Phase |
1 |
|
Cycle |
60 |
|
Max Fuse Breaker |
40 |
|
Min Circuit Ampacity |
27.5 |
|
Color |
Gray |
|
Color Family |
Gray |
|
Rated Load |
15.9 |
|
Max Coverage Area |
1750 |
|
Refrigerant Type |
R-410A |
|
Refrigerant Volume |
108 |
|
Decibel Rating |
78 |
|
Min Ambient Heat |
0 |
|
Compressor Motor Type |
Single Stage |
|
Condenser Fan Motor Type |
ECM |
|
Condenser Fan Motor HP |
1/4 |
|
Blower Motor Type |
ECM |
|
Blower Motor HP |
3/4 |
|
Blower Motor Speeds |
Multi-speed |
|
Blower Motor RPM |
475-1540 |
|
Filter Type |
Replacable |
|
Filter Size |
20x20 |
|
Metering Device |
TXV |
|
Auxiliary Heater Included |
No |
|
Auxiliary Heater Available |
Yes |
|
Auxiliary Heater Sizes |
5kw, 7.5kw, 10kw, 15kw |
|
UL Reconized |
No |
|
UL Listed |
No |
|
ETL Listed |
Yes |
|
ETL Certified |
No |
|
LEED Certified |
No |
|
Ashrae Compliant |
No |
|
Energy Star Compliant |
No |
|
Energy Star Certified |
No |
|
AHRI Certified |
Yes |
|
Registered Warranty |
10-Year Parts Limited Warranty |
|
Base Warranty |
5 year base limited parts warranty |
|
Has Batteries |
No |
|
Contains Electronics |
Yes |
|
Contains Chemicals |
Yes |
|
Contains Aerosol |
Yes |
|
Contains Compressed GAS |
Yes |
|
Proposition 65 Warning |
Yes |
|
Restricted States |
No |
|
Net Weight |
405 |
|
Gross Depth |
48 |
|
Gross Height |
46 |
|
Gross Width |
57.5 |
|
Gross Weight |
433 |
|
Freight Class |
125 |
