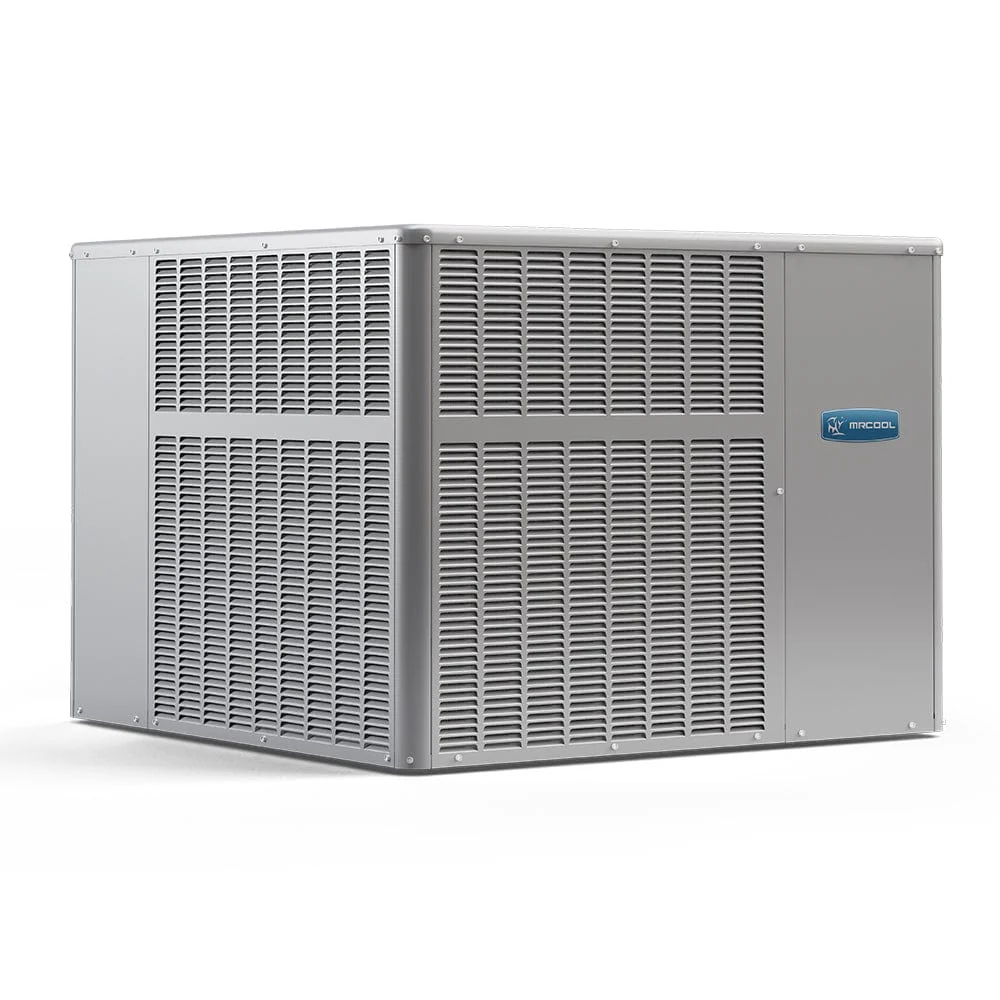

MRCOOL Signature 2 Ton 14 SEER Louvered Packaged A/C MPC241M414A
MRCOOL Signature 22.6K, 2 Ton, 14 SEER, Louvered Packaged Air Conditioner MPC241M414A
Why should you consider the MRCOOL Signature 2 Ton, 14 SEER Louvered Packaged A/C for your home cooling needs?
Considering the MRCOOL Signature 2 Ton, 14 SEER Louvered Packaged A/C for your home cooling needs is a smart choice due to its efficient and reliable performance. With a SEER rating of 14, it ensures energy savings while maintaining optimal comfort. The louvered design enhances durability by protecting internal components, making it a long-lasting solution. Additionally, this packaged unit simplifies installation and maintenance, providing a convenient and cost-effective option for residential cooling.
MRCOOL Signature Packaged A/C Features
- Approved for installation in manufactured housing and mobile homes
- Multi-Positional Application
- Environmentally friendly R410A refrigerant
- Insulated to minimize heat loss and reduce sound
- Efficient multispeed motor for wide airflow range
- Low ambient kits available
- Utility connections on right side
- One piece base design for strength and stability
- Rounded corners for safety and an attractive, clean appearance
- Available in 2, 2.5, 3, 3.5, 4, and 5 TON capacities
- All units ETL and ETLC approved and AHRI Certified
- One piece no leak top design
Manuals
MRCOOL Signature Packaged A/C Manuals:
| Brochure |
| Install Manual |
| Specs |
| Owner Manual |
| Warranty Doc |
Specifications
MRCOOL Signature Packaged A/C Specifications:
|
Dimensions |
46.77" D x 36.82" H x 46.8" W |
|
SEER |
14 |
|
EER |
11 |
|
CFM |
800 |
|
Tonnage |
2 |
|
Cooling Capacity |
22600 |
|
Voltage |
208-230 |
|
Phase |
1 |
|
Cycle |
60 |
|
Max Fuse Breaker |
20 |
|
Min Circuit Ampacity |
14.4 |
|
Color |
Gray |
|
Colorcolor Family |
Gray |
|
Rated Load |
8.6 |
|
Max Coverage Area |
1000 |
|
Refrigerant Type |
R-410A |
|
Refrigerant Volume |
72 |
|
Decibel Rating |
77 |
|
Min Ambient Heat |
0 |
|
Compressor Motor Type |
Single Stage |
|
Condenser Fan Motor Type |
ECM |
|
Condenser Fan Motor HP |
1/6 |
|
Blower Motor Type |
ECM |
|
Blower Motor HP |
1/3 |
|
Blower Motor Speeds |
Multi-speed |
|
Blower Motor RPM |
430-820 |
|
Filter Type |
Replacable |
|
Filter Size |
14x20 |
|
Metering Device |
TXV |
|
Auxiliary Heater Included |
No |
|
Auxiliary Heater Available |
Yes |
|
Auxiliary Heater Sizes |
5kw |
|
UL Reconized |
No |
|
UL Listed |
No |
|
ETL Listed |
Yes |
|
ETL Certified |
No |
|
LEED Certified |
No |
|
Ashrae Compliant |
No |
|
Energy Star Compliant |
No |
|
Energy Star Certified |
No |
|
AHRI Certified |
Yes |
|
Registered Warranty |
10-Year Parts Limited Warranty |
|
Base Warranty |
5 year base limited parts warranty |
|
Has Batteries |
No |
|
Contains Electronics |
Yes |
|
Contains Chemicals |
Yes |
|
Contains Aerosol |
Yes |
|
Contains Compressed GAS |
Yes |
|
Proposition 65 Warning |
Yes |
|
Restricted States |
No |
|
Net Weight |
308 |
|
Gross Depth |
48 |
|
Gross Height |
42.5 |
|
Gross Width |
48.75 |
|
Gross Weight |
315 |
|
Freight Class |
125 |
