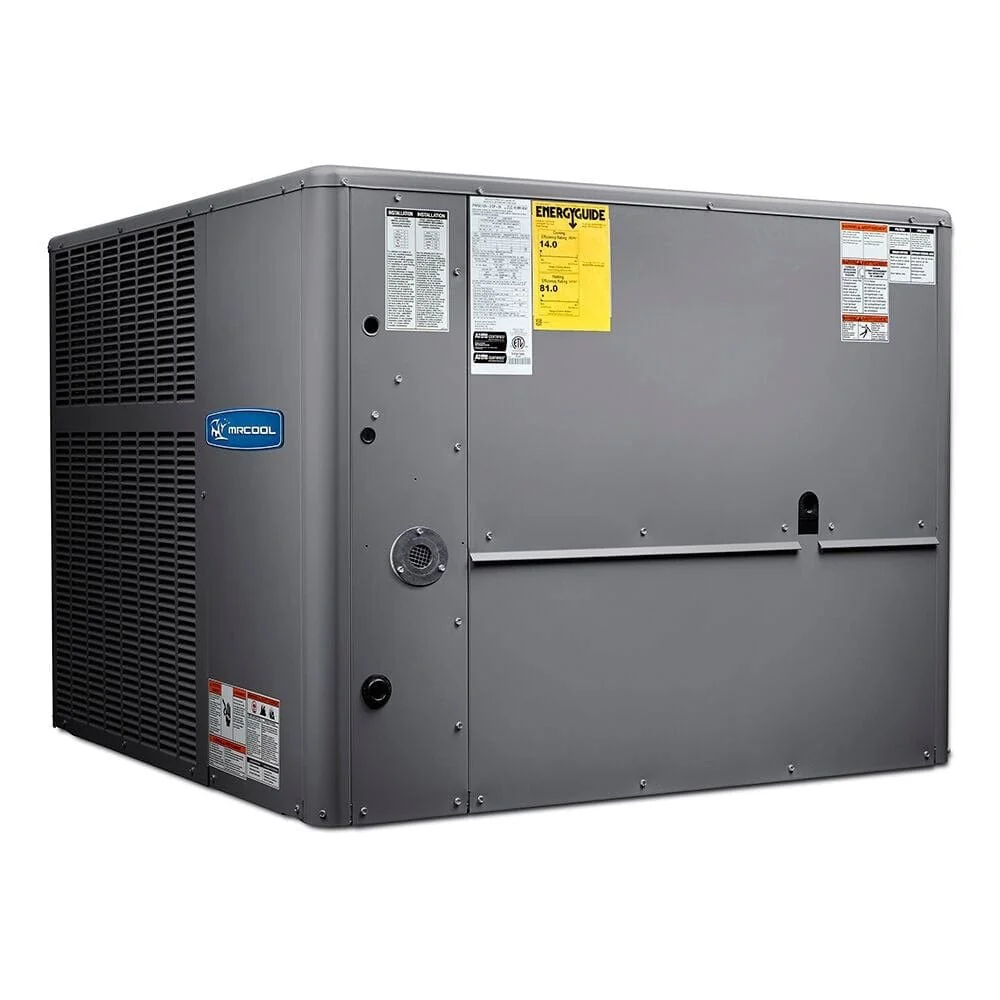

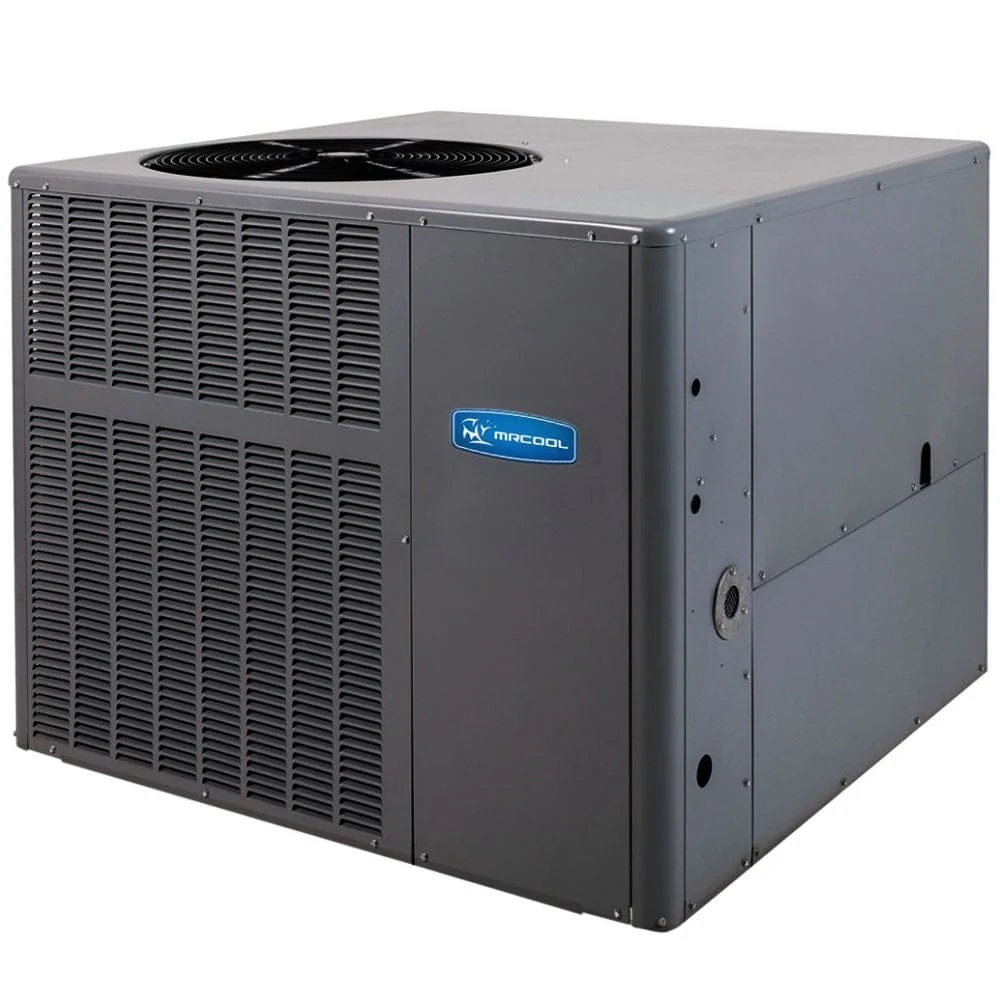

MRCOOL Signature 2.5 Ton Package A/C & Gas Furnace MPG30S054M414A
MRCOOL Signature 2.5 Ton 14 SEER R-410A 60,000 BTU Heat Horizontal or Down Flow Package A/C and Gas Furnace MPG30S054M414A
Why choose the MRCOOL Signature 2.5 Ton Package A/C & Gas Furnace for your home?
Opting for the MRCOOL Signature 2.5 Ton Package A/C & Gas Furnace offers numerous benefits for homeowners seeking an efficient and reliable HVAC solution. This system combines air conditioning and heating in one unit, simplifying installation and maintenance. The 2.5-ton capacity ensures effective cooling and heating for medium-sized homes, while the high SEER rating enhances energy efficiency, leading to lower utility bills. Additionally, the gas furnace component provides robust and consistent heating during colder months. The unit's packaged design saves space and improves overall system performance, making it an ideal choice for residential applications.
MRCOOL Signature Package A/C and Gas Furnace Features
- Warranty is 15 year on heat exchanger and 10 years on parts when registered
- Insulated low profile cabinet with rounded corners and one piece base is stable, safe and attractive
- Features a high efficiency compressor designed to operate smoothly, quietly, and consistently
- Architecturally compatible to fit a small footprint, convenient for installation and maintenance
- All units ETL and ETLC approved and AHRI certified
- Optional LP & High Altitude Kits available
- Approved for installation in manufactured housing and mobile homes
- Aluminized Tri-Dimple tubular heat exchanger for increased efficiency
- Uses evironmentally friendly R410A refrigerant
- Efficient multi-speed motor for wide airflow range
- Made in the USA
- 81% AFUE
Manuals
MRCOOL Signature Package A/C and Gas Furnace Manuals:
| Brochure |
| Install Manual |
| Specs |
| Owner Manual |
| Warranty Doc |
Specifications
MRCOOL Signature Package A/C and Gas Furnace Specifications:
|
Dimensions |
46.77" D x 36.82" H x 46.8" W |
|
SEER |
14 |
|
EER |
11 |
|
AFUE |
81% |
|
CFM |
1000 |
|
Tonnage |
2 1/2 |
|
Cooling Capacity |
28400 |
|
Heating Capacity |
43800 |
|
Fuel Type |
Natural Gas |
|
BTU Input |
54000 |
|
BTU Output |
43800 |
|
Voltage |
208/230 |
|
Phase |
1 |
|
Cycle |
60 |
|
Stage |
Single |
|
Max Fuse Breaker |
25 |
|
Min Circuit Ampacity |
18.5 |
|
Color |
Gray |
|
Color Family |
Gray |
|
Rated Load |
10.6 |
|
Max Coverage Area |
1250 |
|
Refrigerant Type |
R-410A |
|
Refrigerant Volume |
80 |
|
Decibel Rating |
79 |
|
Min Ambient Heat |
0 |
|
Compressor Motor Type |
Scroll |
|
Condenser Fan Motor Type |
ECM |
|
Condenser Fan Motor HP |
1/6 |
|
Blower Motor Type |
ECM |
|
Blower Motor HP |
1/4 |
|
Blower Motor Speeds |
Multi-speed |
|
Blower Motor RPM |
710-1050 |
|
Filter Type |
replaceable |
|
Filter Size |
14X20X1 |
|
Heat Exchanger Type |
Aluminized Tri-Dimple Tubular Heat Exchanger |
|
Ignition Type |
Direct Spark |
|
Metering Device |
Orifice |
|
LP KIT Included |
no |
|
LP KIT Available |
yes |
|
UL Reconized |
No |
|
UL Listed |
No |
|
ETL Listed |
yes |
|
ETL Certified |
no |
|
LEED Certified |
no |
|
Ashrae Compliant |
No |
|
Energy Star Compliant |
No |
|
Energy Star Certified |
No |
|
AHRI Certified |
yes |
|
Registered Warranty |
Registered 10 Year parts Warranty |
|
Base Warranty |
5-years on parts if not registered |
|
Registered Heat Exchanger Warranty |
Registered 15 Years Heat Exchanger Warranty |
|
Base Heat Exchanger Warranty |
15-years on Heat Exchanger |
|
Has Batteries |
No |
|
Contains Electronics |
Yes |
|
Contains Chemicals |
Yes |
|
Contains Aerosol |
Yes |
|
Contains Compressed GAS |
Yes |
|
Proposition 65 Warning |
Yes |
|
Restricted States |
Yes (California) |
|
Net Weight |
346 |
|
Gross Depth |
48 |
|
Gross Height |
42.5 |
|
Gross Width |
48.75 |
|
Gross Weight |
358 |
|
Freight Class |
125 |
