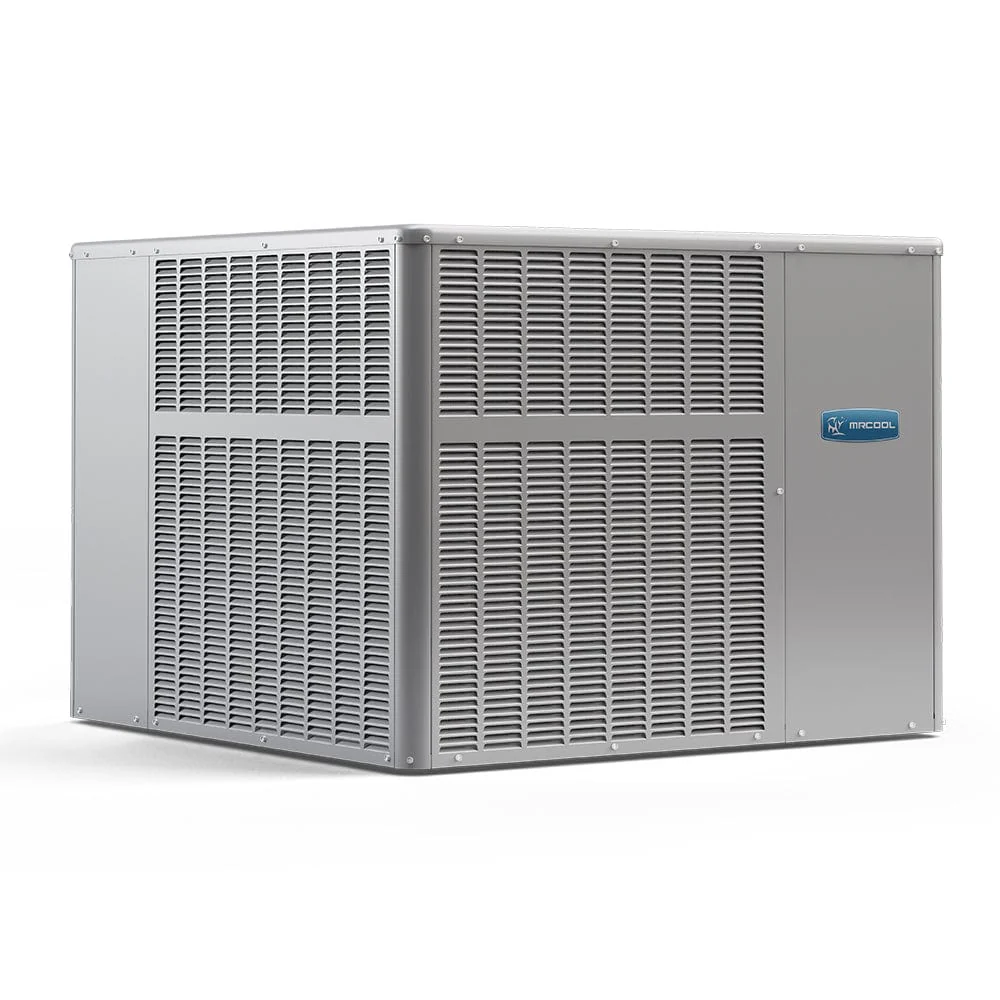

MRCOOL Signature 2.5 Ton Louvered Packaged A/C MPC301M414A
MRCOOL Signature 30K BTU 14 SEER 2.5 Ton Single Phase Packaged A/C Only MPC301M414A
Why choose the MRCOOL Signature 2.5 Ton 14 SEER Louvered Packaged A/C?
The MRCOOL Signature 2.5 Ton 14 SEER Louvered Packaged A/C is an excellent choice for its energy efficiency, durability, and easy installation. With a 14 SEER rating, it provides cost-effective cooling and helps lower energy bills. The louvered design offers superior protection against the elements, ensuring long-lasting performance. Its compact, all-in-one design simplifies installation, making it a convenient and reliable option for residential cooling needs.
Note: this is NOT a heat pump
MRCOOL Signature Louvered Packaged A/C Features:
- Approved for installation in manufactured housing and mobile homes
- Multi-Positional Application
- Environmentally friendly R410A refrigerant
- Insulated to minimize heat loss and reduce sound
- Efficient multispeed motor for wide airflow range
- Low ambient kits available
- Utility connections on right side
- One piece base design for strength and stability
- Rounded corners for safety and an attractive, clean appearance
- Available in 2, 2.5, 3, 3.5, 4, and 5 TON capacities
- All units ETL and ETLC approved and AHRI Certified
- One piece no leak top design
Manuals
MRCOOL Signature Louvered Packaged A/C Manuals:
Specifications
MRCOOL Signature Louvered Packaged A/C Specifications:
| Product Dimensions | 46.8"W x 46.77"D x 36.82"H |
| Product Weight | 319 lbs |
| Unit Type | Package AC |
| SEER | 14 |
| EER | 11 |
| CFM | 1000 |
| Tonnage | 2 1/2 |
| Cooling Capacity | 28400 |
| Voltage | Requires a minimum of 208V-230V/60HZ/25A (please check your home meets this electrical requirement prior to purchase) |
| Phase | 1 |
| Cycle | 60 |
| Max Fuse Breaker | 25 |
| Min Circuit Ampacity | 18.2 |
| Color | Gray |
| Rated Load | 10.6 |
| Max Coverage Area | 1250 |
| Refrigerant Type | R-410A |
| Refrigerant Volume | 80 |
| Decibel Rating | 79 |
| Min Ambient Heat | 0 |
| Compressor Motor Type | Single Stage |
| Condenser Fan Motor Type | ECM |
| Condenser Fan Motor HP | 1/6 |
| Blower Motor Type | ECM |
| Blower Motor HP | 1/2 |
| Blower Motor Speeds | Multi-Speed |
| Blower Motor RPM | 710-1050 |
| Filter Type | Replaceable |
| Filter Size | 14 x 20 |
| Metering Device | TXV |
| Auxiliary Heater | Yes |
| Auxiliary Heater Sizes | 5kw, 7.5kw |
| Certifications | ETL AHRI |
| Warranty | 10-Year Parts Limited Warranty |
| Base Warranty | 5 year base limited parts warranty |
