MRCOOL Hyper Heat Central Ducted 36K BTU Complete System (Air Handler and Heat Pump Condenser) CENTRAL-36-HP-230A00

Why is the MRCOOL Hyper Heat Central Ducted 36K BTU Complete System (Air Handler and Heat Pump Condenser) CENTRAL-36-HP-230A00 a smart choice for your home?

The MRCOOL Hyper Heat Central Ducted 36K BTU Complete System offers efficient and reliable heating and cooling for mid-sized spaces. Featuring advanced inverter technology, this system provides optimal energy savings and performance by adjusting its output to match the demand. With both an air handler and heat pump condenser included, it simplifies installation and delivers comprehensive climate control, enhancing comfort while reducing energy costs.

This System includes:

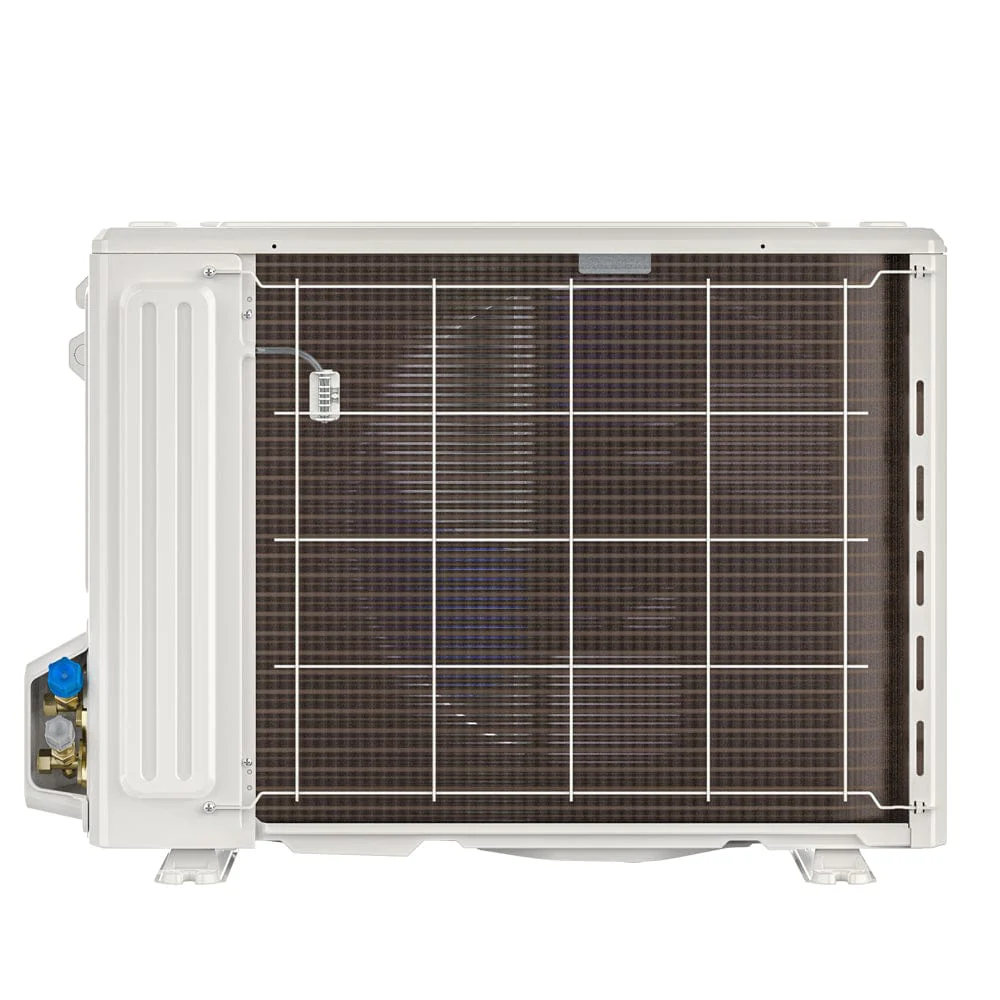

• MRCOOL 36K BTU Hyper Heat Central Ducted Heat Pump Condenser, CENTRAL-36-HP-C-230A00
• MRCOOL 36K BTU Hyper Heat Central Ducted Air Handler, CENTRAL-36-HP-MUAH230A00

Features:

• Energy Efficient. This heat pump system delivers up to 16 SEER2
• Extreme Temperature Performance. Live in an extremely cool or hot environment? This condenser runs when outdoor conditions range between -22°F to 122
• Modular Home Friendly. The Air Handler is made to accommodate high static requirements for manufactured and modular homes.
• Multi-Positional. The unit is compatible with upflow, downflow and horizontal configurations.

• Thermostat and Remote Included. The included wired thermostat has a variety of options to keep your home the temperature you want it to be.
• Buy Worry-Free. This system comes with a standard 10-year parts and labor warranty and 10-year compressor warranty.

Manuals

Manuals:

• Installation Manual

• Brochure

• AHRI Certificate

• Warranty Document

• Wired Thermostat Manual

Specifications

Specifications:

Condenser Dimensions	37.48"W x 16.14"D x 52.48"H
Condenser Weight	227.07 lbs
Air Handler Dimensions	21.02"W x 21.02"D x 49.02"H
Air Handler Weight	129.63 lbs
SEER2	16
EER2	10
HSPF2	hspf2-4/2-5: 9.5/8
Cooling Capacity	36,000 BTU
Heating Capacity	40,000 BTU
Condenser Electrical	Requires a minimum of 208-230V/60HZ/41 to 50A (please check your home meets this electrical requirement prior to purchase)
Air Handler Electrical	Requires a minimum of 208-230V/60HZ/5 to 15A (please check your home meets this electrical requirement prior to purchase)
Coverage Area	1,500 square feet
Refrigerant Type	R410A
Refrigerant Volume	165.79 oz
Condenser Decibel Rating	64
Air Handler Decibel Rating	41 to 45
Air Flow Direction	Downflow, Upflow, Horizontal Left, Horizontal Right
Cool Mode - Outdoor Operating Temperature Range	5°F to 122°F
Heat Mode - Outdoor Operating Temperature Range	-22°F to 75°F
Room Temperature	Cool: 61°F to 90°F Heat: 32°F to 86°F Dry: 50°F to 90°F
Line Set Included	No
Max Line Set Length	213.25 ft
Liquid Line Size	3/8 in
Suction Line Size	3/4 in
Auxiliary Heater Included	No
Auxiliary Heater Available	Yes
Auxiliary Heater Sizes	5kw, 8kw,10kw, 15kw
Adjustable Thermostat	Yes
Modes	Cool, Heat Dry, Auto, Fan
Includes	Remote Wired Thermostat
App Compatibility	No
Certificates	AHRI
Warranty	10 years parts and labor
