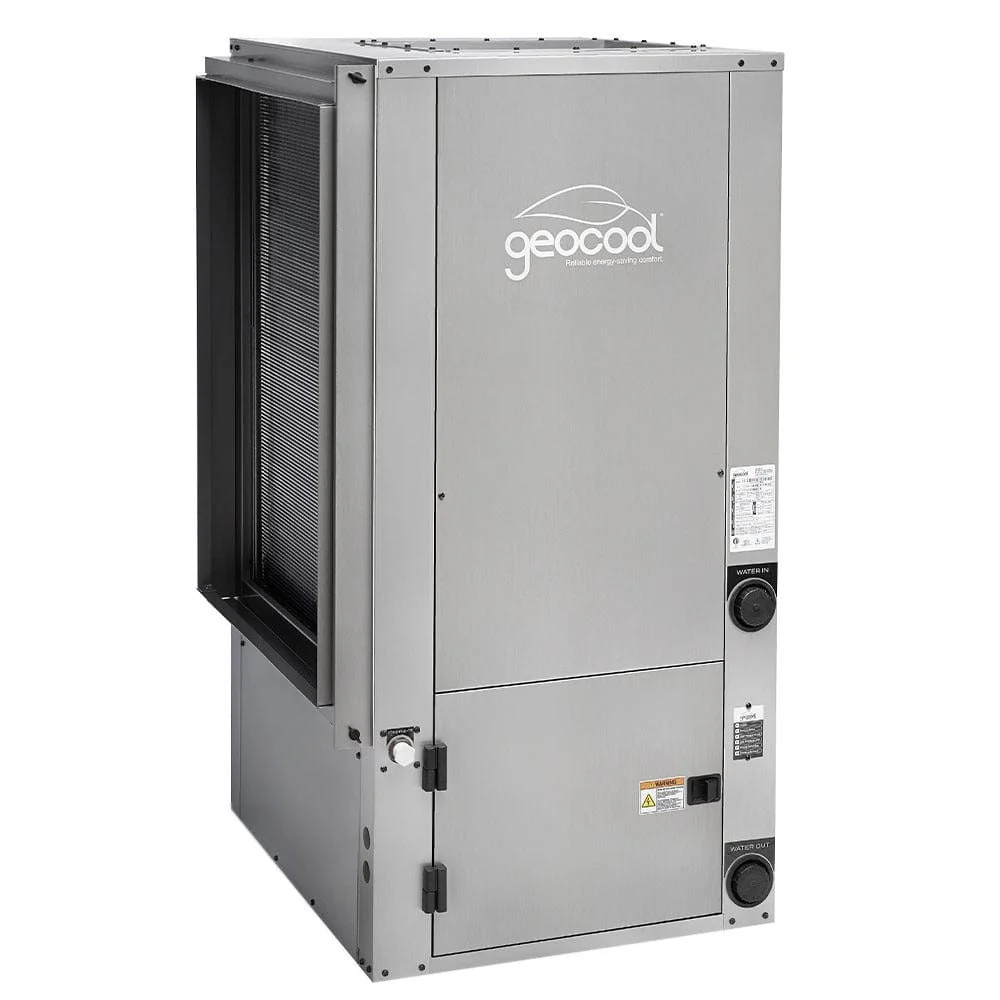

MRCOOL GeoCool 60K BTU 5 Ton Vertical Heat Pump with Desuperheater GCHPV060TGTANDR
MRCOOL GeoCool 60K BTU 5 Ton Vertical Two-Stage Right Return Geothermal Heat Pump with Desuperheater GCHPV060TGTANDR
Why is the MRCOOL GeoCool 60K BTU 5 Ton Vertical Two-Stage Right Return Geothermal Heat Pump with Desuperheater GCHPV060TGTANDR the top choice for efficient and sustainable home climate control?
The MRCOOL GeoCool 60K BTU 5 Ton Vertical Two-Stage Right Return Geothermal Heat Pump with Desuperheater GCHPV060TGTANDR is the top choice for efficient and sustainable home climate control. Its 60K BTU capacity and two-stage system ensure powerful, precise heating and cooling. The vertical design with right return offers flexible installation. The desuperheater enhances energy efficiency by preheating water, while geothermal technology reduces utility costs and environmental impact, providing reliable, eco-friendly comfort year-round.
Features
- Qualifies for federal tax credit, and other incentives
- Highest energy efficiency in its class
- Safety high and low pressure switches
- Quiet operation
- Full featured sinusoidal eon motor control technology
- Insulated sloped stainless steel drain pan
- Advanced unit control board with diagnostic LEDs
- Double O-ring water connections
- Easy service access
- Optional domestic water pre-heating
- Made in the USA
- 10 year compressor warranty
Manuals
Manuals:
- GCHP Customer Brochure
- GCHP Desuperheater Manual
- GCHP Installation Manual
- GCHP Specification Manual
- GCHP Warranty Sheet
Specifications
Specifications:
| Dimensions | 52" H x 32" D x 25.75" W |
| AHRI Certified | Yes |
| ASHRAE Compliant | No |
| Base Warranty | 5 year limited parts warranty |
| Blower Motor Hp | 3/4 |
| Blower Motor Type | Axial Flux (No Shaft) BLA |
| Color | Gray |
|
Color Family
|
Gray |
|
Compressor Motor Type
|
Scroll |
|
Contains Aerosol
|
Yes |
|
Contains Chemicals
|
Yes |
|
Contains Compressed Gas
|
Yes |
| Contains Electronics | Yes |
| Cooling Capacity | 57000 |
| COP 47 | 4.0-4.97 |
| COP 47 Part Load | 4.5-5.29 |
| Cycle | 60 |
| EER | 19.4-25.8 |
| EER Part Load | 26.1-32.8 |
| Energy Star Certified | Yes |
| Energy Star Compliant | Yes |
| ETL Certified | No |
| ETL Listed | Yes |
| Filter Size | 36X30 |
| Filter Type | Replaceable |
| Freight Class | 85 |
| Has Batteries | No |
| Heating Capacity | 57000 |
| LEED Certified | No |
| Max Coverage Area | 2500 |
| Max Fuse Breaker | 64(W/O Desuperh |
| Min Circuit Ampacity | 38.6 |
| Net Weight | 365 |
| Phase | 1 |
| Proposition 65 Warning | Yes |
| Refrigerant Type | R-410A |
| Registered Warranty | 10 year registered parts limited warranty & 10 year compressor warranty |
| Restricted States | No |
| Stage | Two-Stage |
| Tonnage | 5 |
| UL Listed | No |
| UL Reconized | No |
| Voltage | 230 |
