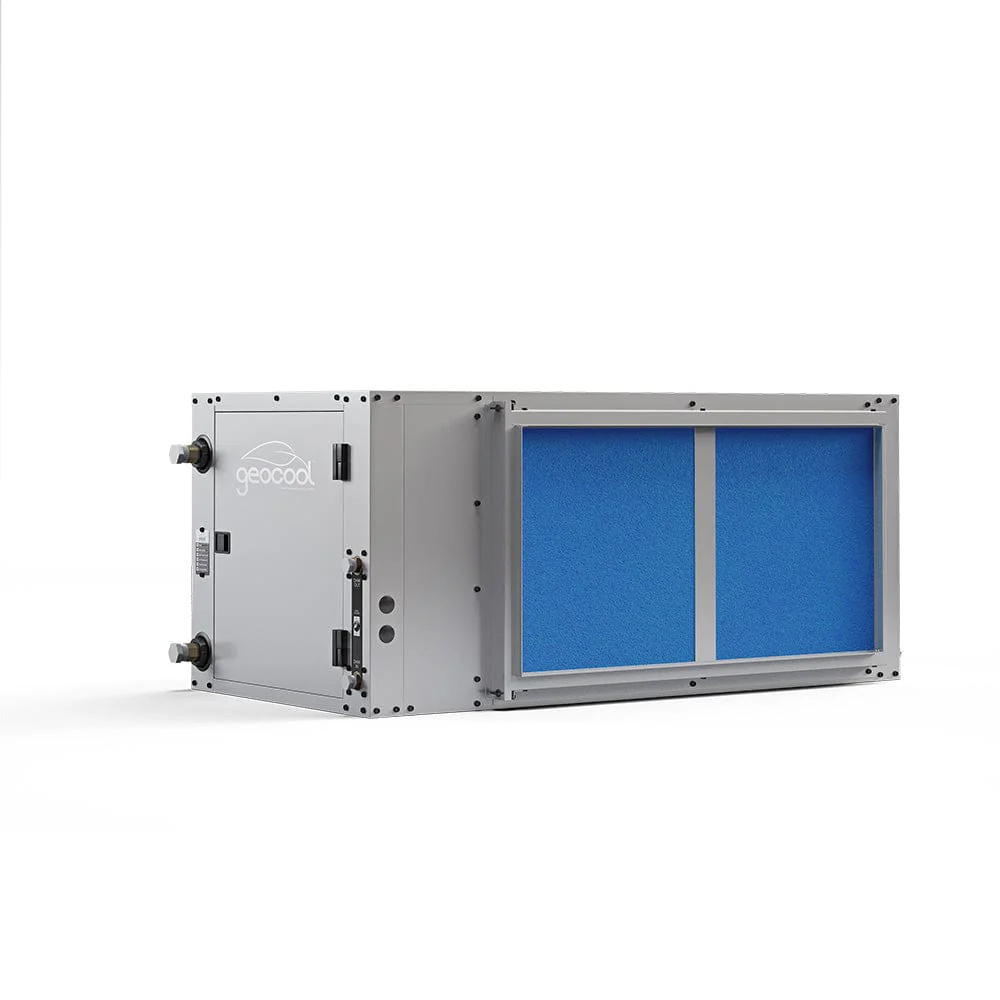

MRCOOL GeoCool 60K BTU 5 Ton Horizontal Heat Pump GCHPH060TGTANXL
MRCOOL GeoCool 60K BTU 5 Ton Horizontal Two-Stage Left Return Geothermal Heat Pump GCHPH060TGTANXL
Why is the MRCOOL GeoCool 60K BTU 5 Ton Horizontal Two-Stage Left Return Geothermal Heat Pump GCHPH060TGTANXL the ideal solution for efficient and flexible home climate control?
The MRCOOL GeoCool 60K BTU 5 Ton Horizontal Two-Stage Left Return Geothermal Heat Pump GCHPH060TGTANXL is ideal for efficient and flexible home climate control. Its 60K BTU capacity provides robust heating and cooling performance, while the two-stage system enhances energy efficiency and comfort. The horizontal design with left return allows for versatile installation in various settings. Leveraging geothermal energy, this unit offers sustainable operation, reducing energy costs and environmental impact for reliable, all-season comfort.
Features
- Qualifies for federal tax credit, and other incentives
- Highest energy efficiency in its class
- Safety high and low pressure switches
- Quiet operation
- Full featured sinusoidal eon motor control technology
- Insulated sloped stainless steel drain pan
- Advanced unit control board with diagnostic LEDs
- Double O-ring water connections
- Easy service access
- Optional domestic water pre-heating
- Made in the USA
- 10 year compressor warranty
Manuals
Manuals:
| Brochure |
| Install Manual |
| Specs |
| Owner Manual |
| Warranty Doc |
Specifications
Specifications:
|
Dimensions |
61" D x 23.125" H x 25.75" W |
|
EER |
Ground Water (FULL) 24.00 / Ground Loop (FULL) 15.17 |
|
EER Part Load |
Ground Water (PART) 31.00 / Ground Loop (PART) 23.17 |
|
COP 47 |
Ground Water (FULL) 4.90 / Ground Loop 4.00 (FULL) |
|
COP 47 Part Load |
Ground Water (PART) 5.20 / Ground Loop 4.60 (PART) |
|
HSPF |
Ground Water Fluid Flow Rate | COOLING: (PART) 14 - 15 (FULL) / HEATING: (PART) 14 - 15 (FULL) |
|
AFUE |
Ground Loop Fluid Flow Rate | COOLING: (PART) 14 - 15 (FULL) / HEATING: (PART) 14 - 15 (FULL) |
|
CFM |
COOLING (PART) 1950 - 2300 (FULL) / HEATING (PART) 1850 - 2200 (FULL) |
|
Tonnage |
5 |
|
Cooling Capacity |
Ground Water (PART) 55200 - 72500 (FULL) / Ground Loop (PART) 53400 - 66500 (FULL) |
|
Heating Capacity |
Ground Water (PART) 47000 - 64500 (FULL) / Ground Loop (PART) 41000 - 46900 (FULL) |
|
Voltage |
230 |
|
Phase |
1 |
|
Cycle |
60 |
|
Stage |
Two-Stage |
|
Max Fuse Breaker |
64(W/O Desuperh |
|
Min Circuit Ampacity |
38.6( |
|
Color |
Gray |
|
Color Family |
Gray |
|
Max Coverage Area |
2500 |
|
Refrigerant Type |
R-410A |
|
Compressor Motor Type |
Scroll |
|
Blower Motor Type |
Axial Flux (No Shaft) BLA |
|
Blower Motor Hp |
3/4 |
|
Filter Type |
Replaceable |
|
Filter Size |
20x25 & 20x22 |
|
UL Reconized |
No |
|
UL Listed |
No |
|
ETL Listed |
Yes |
|
ETL Certified |
No |
|
LEED Certified |
No |
|
ASHRAE Compliant |
No |
|
Energy Star Compliant |
Yes |
|
Energy Star Certified |
Yes |
|
AHRI Certified |
Yes |
|
Registered Warranty |
10 year registered parts limited warranty & 10 year compressor warranty |
|
Base Warranty |
5 year limited parts warranty |
|
Has Batteries |
No |
|
Contains Electronics |
Yes |
|
Contains Chemicals |
Yes |
|
Contains Aerosol |
Yes |
|
Contains Compressed Gas |
Yes |
|
Proposition 65 Warning |
Yes |
|
Restricted States |
No |
|
Net Weight |
380 |
|
Freight Class |
70 |
