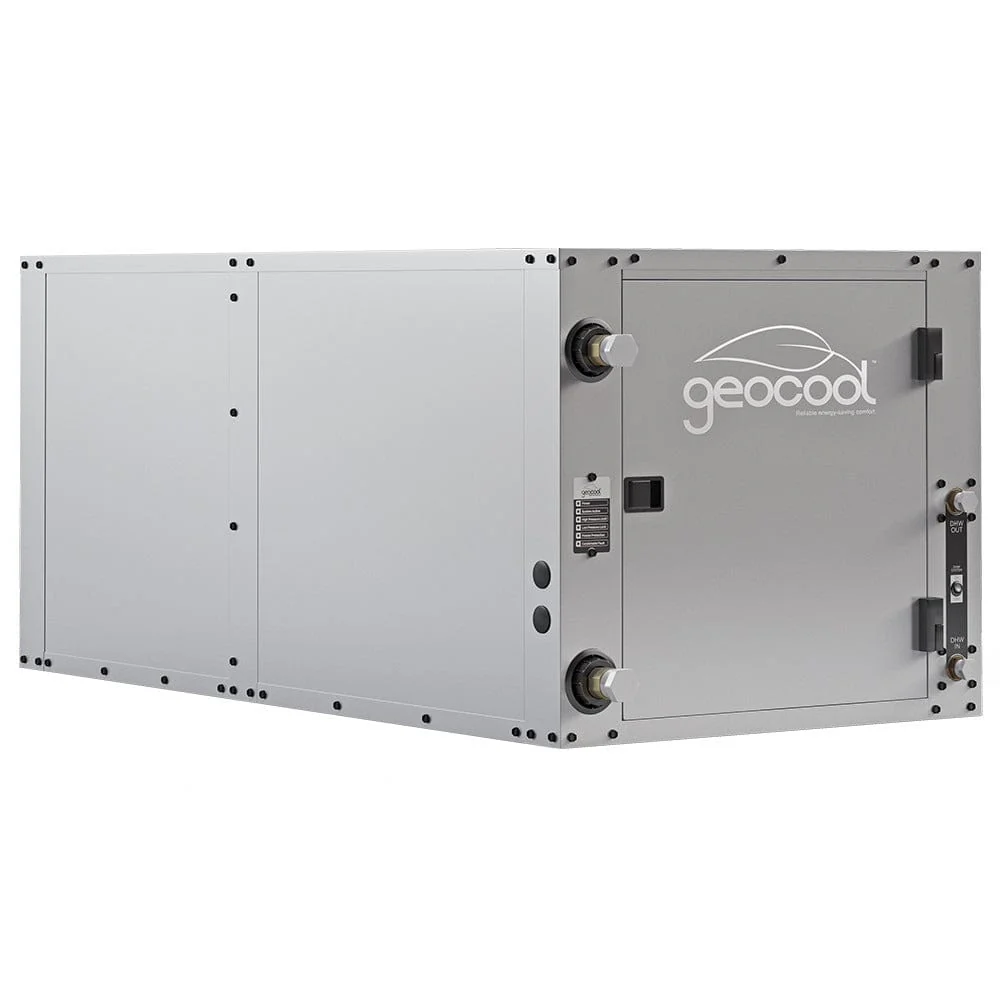

MRCOOL GeoCool 60K BTU 5 Ton Horizontal Geothermal Heat Pump with Desuperheater GCHPH060TGTANDL
MRCOOL GeoCool 60K BTU 5 Ton Horizontal Two-Stage Left Return Geothermal Heat Pump with Desuperheater GCHPH060TGTANDL
Why is the MRCOOL GeoCool 60K BTU 5 Ton Horizontal Two-Stage Left Return Geothermal Heat Pump with Desuperheater GCHPH060TGTANDL the best choice for efficient, all-season home comfort and energy savings?
The MRCOOL GeoCool 60K BTU 5 Ton Horizontal Two-Stage Left Return Geothermal Heat Pump with Desuperheater GCHPH060TGTANDL is the best choice for efficient, all-season home comfort and energy savings. Its 60K BTU capacity and two-stage operation ensure powerful and precise heating and cooling. The horizontal design with left return provides flexible installation options. The integrated desuperheater boosts energy savings by preheating water, while geothermal technology reduces utility costs and environmental impact.
Features
- Qualifies for federal tax credit, and other incentives
- Highest energy efficiency in its class
- Safety high and low pressure switches
- Quiet operation
- Full featured sinusoidal eon motor control technology
- Insulated sloped stainless steel drain pan
- Advanced unit control board with diagnostic LEDs
- Double O-ring water connections
- Easy service access
- Optional domestic water pre-heating
- Made in the USA
- 10 year compressor warranty
Manuals
Manuals:
- GCHP Customer Brochure
- GCHP Desuperheater Manual
- GCHP Installation Manual
- GCHP Specification Manual
- GCHP Warranty Sheet
Specifications
Specifications:
| Dimensions | 23.125" H x 61" D x 25.75" W |
| AHRI Certified | Yes |
| ASHRAE Compliant | No |
|
Base Warranty |
5 year limited parts warranty |
|
Blower Motor Hp |
3/4 |
|
Blower Motor Type |
Axial Flux (No Shaft) BLA |
| Color | Gray |
|
Color Family
|
Gray |
|
Compressor Motor Type
|
Scroll |
|
Contains Aerosol
|
Yes |
|
Contains Chemicals
|
Yes |
|
Contains Compressed Gas
|
Yes |
| Contains Electronics | Yes |
| Contains Electronics | 57000 |
| COP 47 | 4.0-4.97 |
| COP 47 Part Load | 4.5-5.29 |
| CYCLE | 60 |
| EER | 19.4-25.8 |
| EER Part Load | 26.1-32.8 |
| Energy Star Certified | Yes |
| Energy Star Compliant | Yes |
| ETL Certified | No |
| ETL Listed | Yes |
| Filter Size | 20x25 & 20x22 |
| Filter Type | Replaceable |
| Freight Class | 70 |
| Has Batteries | No |
| Heating Capacity | 57000 |
| LEED Certified | No |
| Max Coverage Area | 2500 |
| Max Fuse Breaker | 64(W/O Desuperh |
| Min Circuit Ampacity | 38.6 |
| Net Weight | 380 |
| Phase | 1 |
| Proposition 65 Warning | Yes |
| Refrigerant Type | R-410A |
| Registered Warranty | 10 year registered parts limited warranty & 10 year compressor warranty |
| Restricted States | No |
| Stage | Two-Stage |
| Tonnage | 5 |
| UL Listed | No |
| UL Reconized | No |
| Voltage | 230 |
