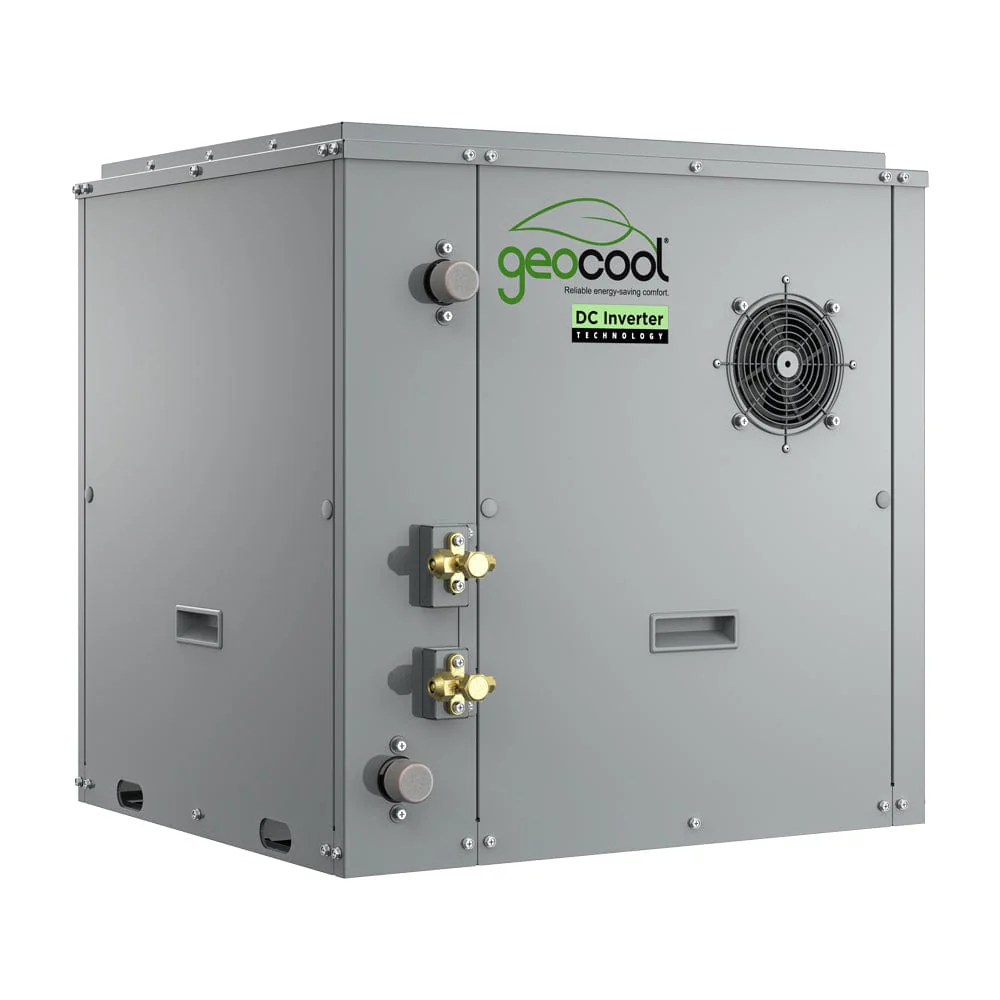

MRCOOL GeoCool 60K BTU 5 Ton Multi Positional DC Inverter Compressor Geothermal Heat Pump GCSHPM060IN

Why is the MRCOOL GeoCool 60K BTU 5 Ton Multi-Positional DC Inverter Compressor Geothermal Heat Pump GCSHPM060IN the best option for high-efficiency, versatile home heating and cooling?

Experience top-tier performance and energy efficiency with the MRCOOL® GeoCool® Geothermal Split System Compressor. Equipped with a DC inverter system and precise electronic expansion valve, it offers quiet operation, stable temperatures, and substantial energy savings. Achieve up to 70 EER with its open loop water-to-air system and lower utility bills. Installation is hassle-free with the MRCOOL® GeoCool® No-Vac® Line Set, available in vertical, horizontal, and split options for various spaces. Its robust construction, co-axial copper-nickel heat exchanger, and built-in protections ensure long-lasting reliability and resistance to corrosion. Enjoy silent cooling and heating at just 58dBA and benefit from a 10-year parts and 5-year labor warranty for lasting peace of mind.

Features

• Up to 70 EER
• DC Inverter technology
• Closed loop - Full load - Cooling Current Input: 17 Heating Current Input: 18 || Open Loop- Full Load - Cooling Current Input: 12.6 Heating Current Input: 19
• Open loop Operating Pressure Range: Min: 25 psi || Max: 50 psi
• Closed loop Operating Pressure Range: Min: 25 psi || Max: 50 psi
• Cooling Operating Range: Inlet: 44.6F - 107.6F || Ambient: 50F - 100.4F || Return Air: 60.8F - 89.6F
• Heating Operating Range: Inlet 21.2F - 89.6F || Ambient: 39.2F - 84.2F || Return Air: 50F - 80.6F
• Open loop - Full load - EER: 21.39 COP: 3.7 || Open Loop- Part Load - EER: 70.97 COP: 5.9
• Closed loop - Full load - EER: 14.4 COP:3.2 || Closed Loop- Part Load - EER: 48.8 COP: 5.1
• Full Fluid Flow (GPM): 7.93 || Partial Fluid Flow (GPM): 7.93
• Open loop - Full load - Cooling Capacity: 62000 BTU Heating Capacity: 55000 BTU || Open Loop- Part Load - Cooling Capacity: 13300 BTU Heating Capacity: 9800 BTU
• Closed loop - Full load - Cooling Capacity: 55600 BTU Heating Capacity: 45000 BTU || Closed Loop- Part Load -Cooling Capacity: 14500 BTU Heating Capacity: 11000 BTU

Manuals

Manuals:

Brochure

Install Manual

Warranty Doc



Specifications

Specifications:

Dimensions	24.81 in D x 29.94 in H x 22.43 in W
EER	Up to 70
Cooling Capacity	Up to 62000 BTU
Heating Capacity	Up to 55000 BTU
Voltage	208V / 230V
Phase	1
Cycle	60Hz
Max Fuse Breaker	35 A
Min Circuit Ampacity	26 A
Color	Gray
Color Family	Gray
Rated Load	28 A
Refrigerant Type	R410a
Inverter	DC
Liquid Line Size	3/8
Suction Line Size	3/4
Compressor Motor Type	Rotary Inverter
Overload Protection	yes
UL Listed	yes
Energy Star Certified	yes
AHRI Certified	yes
Base Parts Warranty	10 years
Base Labor Warranty	5 Year Limited
Has Batteries	No
Contains Electronics	Yes
Contains Chemicals	Yes
Contains Aerosol	Yes
Contains Compressed Gas	Yes
Proposition 65 Warning	Yes
Gross Weight	253.5 lbs
