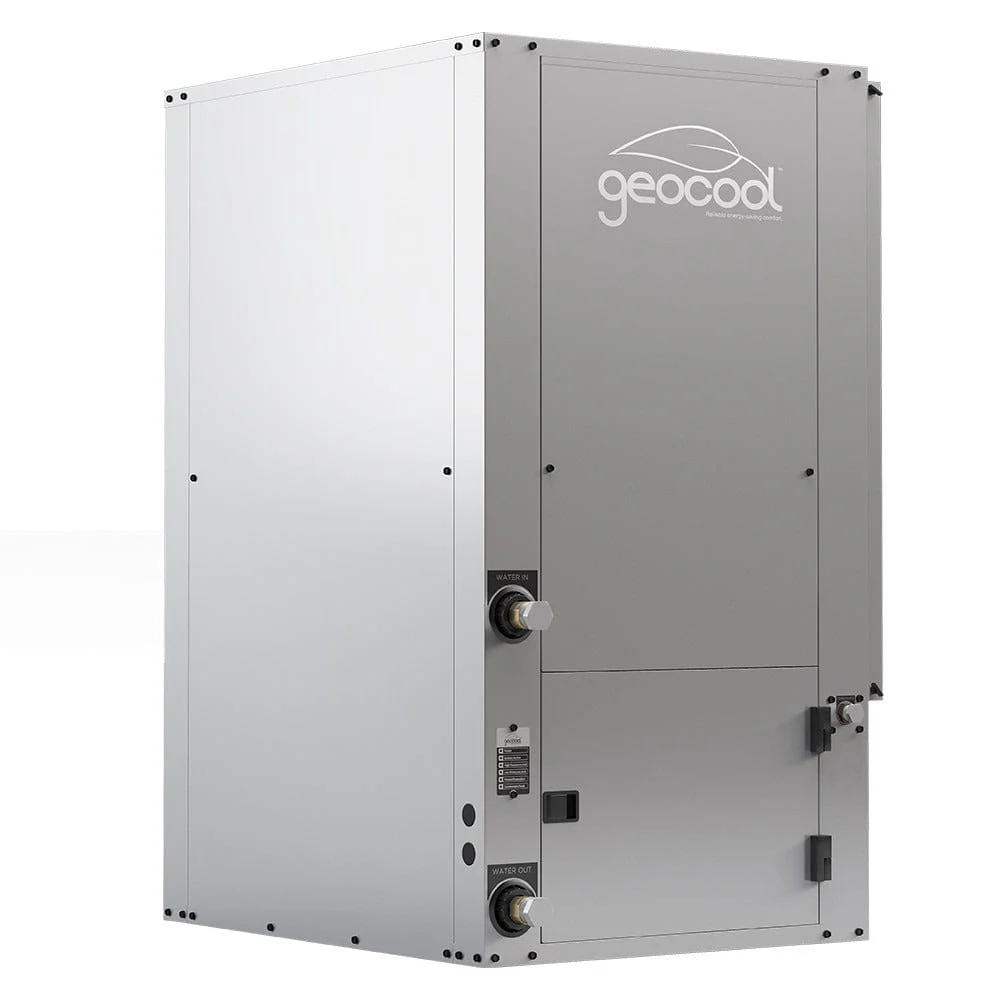

MRCOOL GeoCool 48K BTU 4 Ton Vertical Heat Pump with Desuperheater GCHPV048TGTANDR
MRCOOL GeoCool 48K BTU 4 Ton Vertical Two-Stage Right Return Geothermal Heat Pump with Desuperheater GCHPV048TGTANDR
Why should you choose the MRCOOL GeoCool 48K BTU 4 Ton Vertical Two-Stage Right Return Geothermal Heat Pump with Desuperheater GCHPV048TGTANDR for superior home climate control?
The MRCOOL GeoCool 48K BTU 4 Ton Vertical Two-Stage Right Return Geothermal Heat Pump with Desuperheater GCHPV048TGTANDR is an exceptional choice for superior home climate control. Its two-stage system ensures efficient and consistent heating and cooling, while the desuperheater boosts energy savings by preheating water. Utilizing geothermal energy, this unit offers a sustainable and eco-friendly solution, reducing energy bills and environmental impact. Ideal for homeowners seeking reliable, high-performance comfort.
Features
- Qualifies for federal tax credit, and other incentives
- Highest energy efficiency in its class
- Safety high and low-pressure switches
- Quiet operation
- Full-featured sinusoidal eon motor control technology
- Insulated sloped stainless steel drain pan
- Advanced unit control board with diagnostic LEDs
- Double O-ring water connections
- Easy service access
- Optional domestic water pre-heating
- Made in the USA
- 10-year compressor warranty
Manuals
Manuals:
- GCHP Customer Brochure
- GCHP Desuperheater Manual
- GCHP Installation Manual
- GCHP Specification Manual
- GCHP Warranty Sheet
Specifications
Specifications:
| Dimensions | 48" H x 32" D x 25.75" W |
| AHRI Certified | Yes |
| ASHRAE Compliant | No |
| Base Warranty | 5 year limited parts warranty |
| Blower Motor Hp | 3/4 |
| Blower Motor Type | Axial Flux (No Shaft) BLA |
| Color | Gray |
|
Color Family
|
Gray |
|
Compressor Motor Type
|
Scroll |
|
Contains Aerosol
|
Yes |
|
Contains Chemicals
|
Yes |
|
Contains Compressed Gas
|
Yes |
| Contains Electronics | Yes |
| Cooling Capacity | 48000 |
| COP 47 | 4.1-5.0 |
| COP 47 Part Load | 4.5-5.3 |
| Cycle | 60 |
| EER | 20.0-28.6 |
| EER Part Load | 26.6-35 |
| Energy Star Certified | Yes |
| Energy Star Compliant | Yes |
| ETL Certified | No |
| ETL Listed | Yes |
| Filter Size | 32x30 |
| Filter Type | Replaceable |
| Freight Class | 85 |
| Has Batteries | No |
| Heating Capacity | 48000 |
| LEED Certified | No |
| Max Coverage Area | 2000 |
| Max Fuse Breaker | 57.9(W/O Desupe |
| Min Circuit Ampacity | 32 |
| Net Weight | 330 |
| Phase | 1 |
| Proposition 65 Warning | Yes |
| Refrigerant Type | R-410A |
| Registered Warranty | 10 year registered parts limited warranty & 10 year compressor warranty |
| Restricted States | No |
| Stage | Two-Stage |
| Tonnage | 4 |
| UL Listed | No |
| UL Reconized | No |
| Voltage | 230 |
