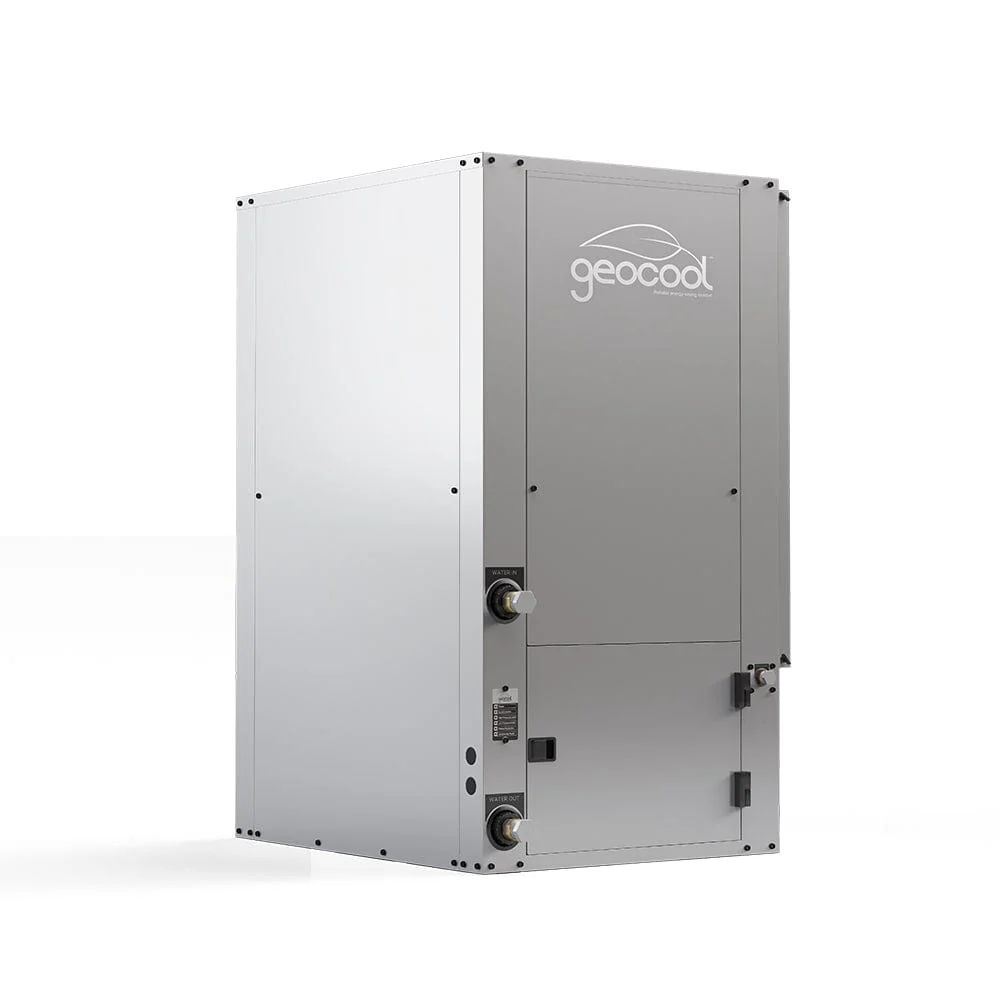

MRCOOL GeoCool 48K BTU 4 Ton Vertical Heat Pump GCHPV048TGTANXR
MRCOOL GeoCool 48K BTU 4 Ton Vertical Two-Stage Right Return Geothermal Heat Pump GCHPV048TGTANXR
Why is the MRCOOL GeoCool 48K BTU 4 Ton Vertical Two-Stage Right Return Geothermal Heat Pump GCHPV048TGTANXR the best choice for efficient, high-performance home climate control?
The MRCOOL GeoCool 48K BTU 4 Ton Vertical Two-Stage Right Return Geothermal Heat Pump GCHPV048TGTANXR is the best choice for efficient, high-performance home climate control. With its 48K BTU capacity and two-stage system, it delivers powerful, precise heating and cooling. The vertical design with right return offers versatile installation options. Utilizing geothermal energy, this unit minimizes utility costs and environmental impact, providing reliable, eco-friendly comfort for larger homes seeking energy-efficient solutions.
Features
- Qualifies for federal tax credit, and other incentives
- Highest energy efficiency in its class
- Safety high and low pressure switches
- Quiet operation
- Full featured sinusoidal eon motor control technology
- Insulated sloped stainless steel drain pan
- Advanced unit control board with diagnostic LEDs
- Double O-ring water connections
- Easy service access
- Optional domestic water pre-heating
- Made in the USA
- 10 year compressor warranty
Manuals
Manuals:
| Brochure |
| Install Manual |
| Specs |
| Owner Manual |
| Warranty Doc |
Specifications
Specifications:
|
Dimensions |
32" D x 48" H x 25.75" W |
|
EER |
Ground Water (FULL) 26.00 / Ground Loop (FULL) 16.65 |
|
EER Part Load |
Ground Water (PART) 33.00 / Ground Loop (PART) 24.06 |
|
COP 47 |
Ground Water (FULL) 4.90 / Ground Loop 4.00 (FULL) |
|
COP 47 Part Load |
Ground Water (PART) 5.00 / Ground Loop 4.50 (PART) |
|
HSPF |
Ground Water Fluid Flow Rate | COOLING: (PART) 11 - 12 (FULL) / HEATING: (PART) 11 - 12 (FULL) |
|
AFUE |
Ground Loop Fluid Flow Rate | COOLING: (PART) 11 - 12 (FULL) / HEATING: (PART) 11 - 12 (FULL) |
|
CFM |
COOLING (PART) 1550 - 1850 (FULL) / HEATING (PART) 1500 - 1750 (FULL) |
|
Tonnage |
4 |
|
Cooling Capacity |
Ground Water (PART) 41000 - 56000 (FULL) / Ground Loop (PART) 38000 - 50000 (FULL) |
|
Heating Capacity |
Ground Water (PART) 34500 - 50000 (FULL) / Ground Loop (PART) 38000 - 50000 (FULL) |
|
Voltage |
230 |
|
Phase |
1 |
|
Cycle |
60 |
|
Stage |
Two-Stage |
|
Max Fuse Breaker |
57.9(W/O Desupe |
|
Min Circuit Ampacity |
35.2( |
|
Color |
Gray |
|
Color Family |
Gray |
|
Max Coverage Area |
2000 |
|
Refrigerant Type |
R-410A |
|
Compressor Motor Type |
Scroll |
|
Blower Motor Type |
Axial Flux (No Shaft) BLA |
|
Blower Motor Hp |
3/4 |
|
Filter Type |
Replaceable |
|
Filter Size |
32x30 |
|
UL Reconized |
No |
|
UL Listed |
No |
|
ETL Listed |
Yes |
|
ETL Certified |
No |
|
LEED Certified |
No |
|
ASHRAE Compliant |
No |
|
Energy Star Compliant |
Yes |
|
Energy Star Certified |
Yes |
|
AHRI Certified |
Yes |
|
Registered Warranty |
10 year registered parts limited warranty & 10 year compressor warranty |
|
Base Warranty |
5 year limited parts warranty |
|
Has Batteries |
No |
|
Contains Electronics |
Yes |
|
Contains Chemicals |
Yes |
|
Contains Aerosol |
Yes |
|
Contains Compressed Gas |
Yes |
|
Proposition 65 Warning |
Yes |
|
Restricted States |
No |
|
Net Weight |
330 |
|
Freight Class |
85 |
