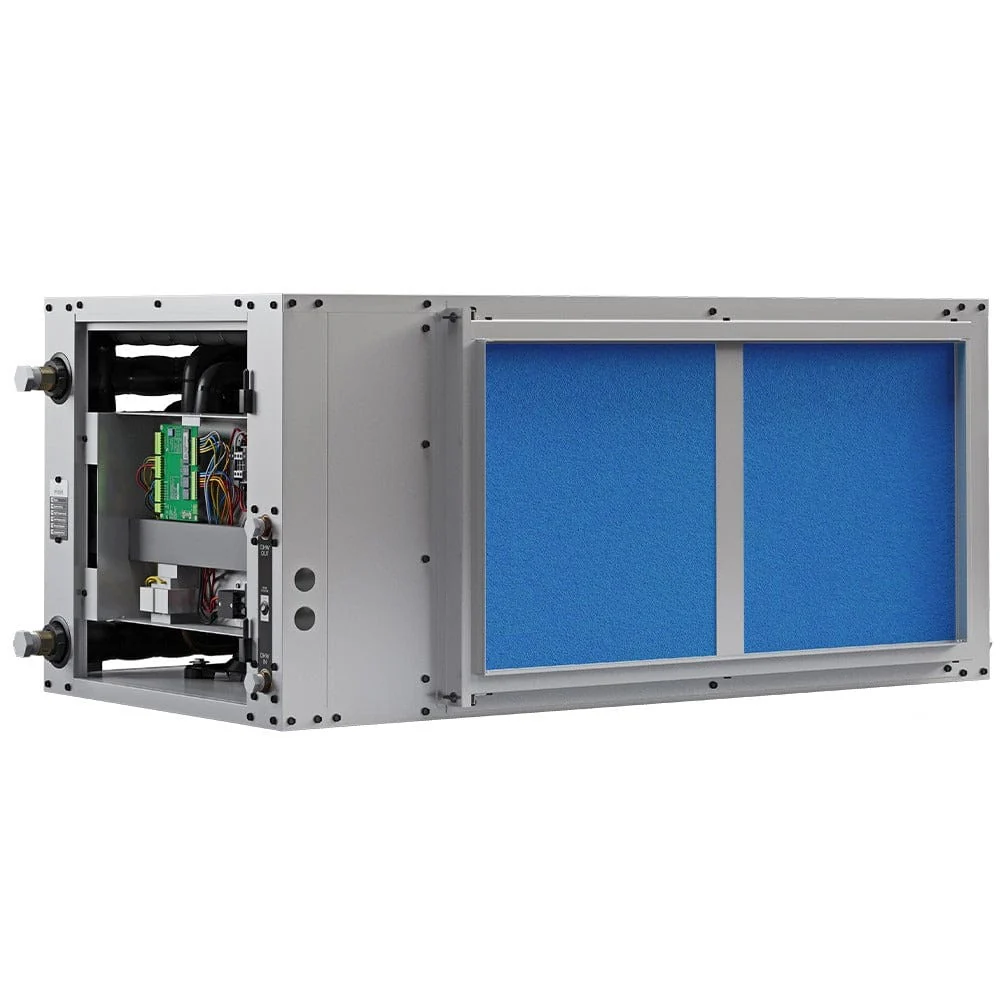

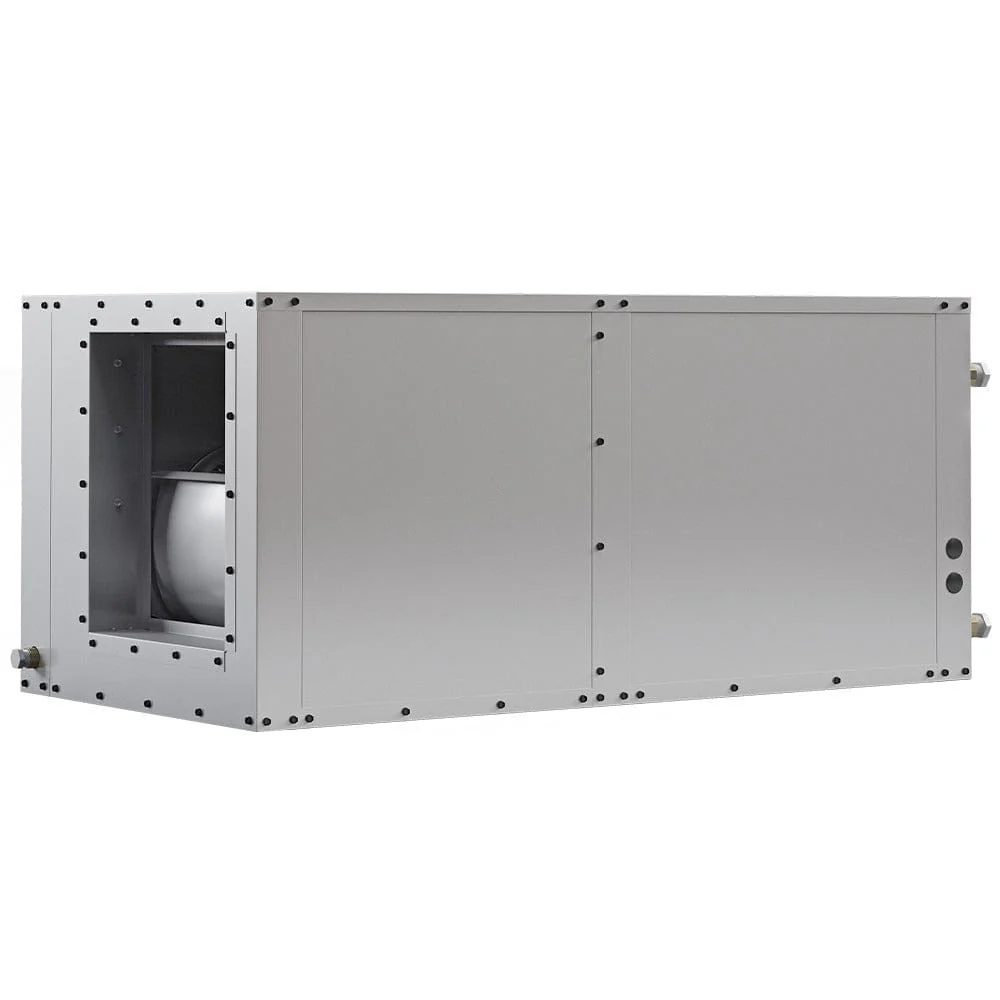

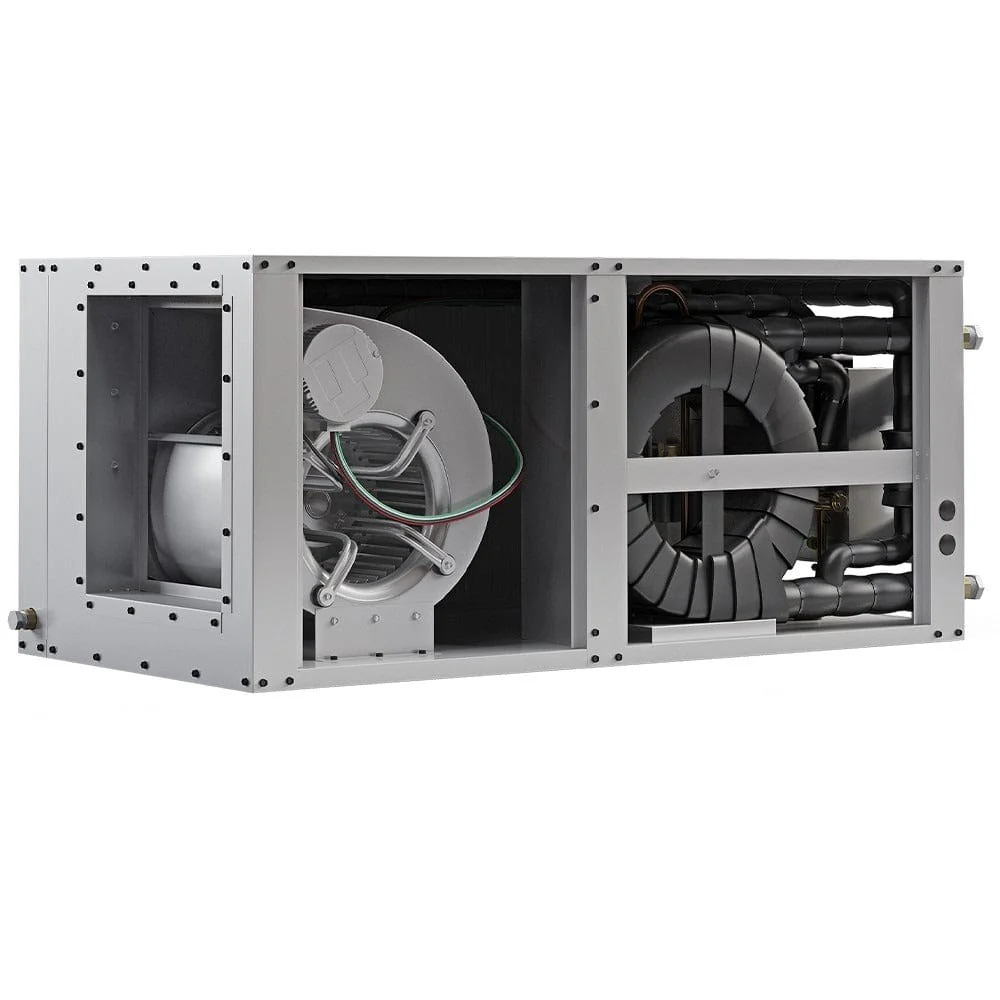

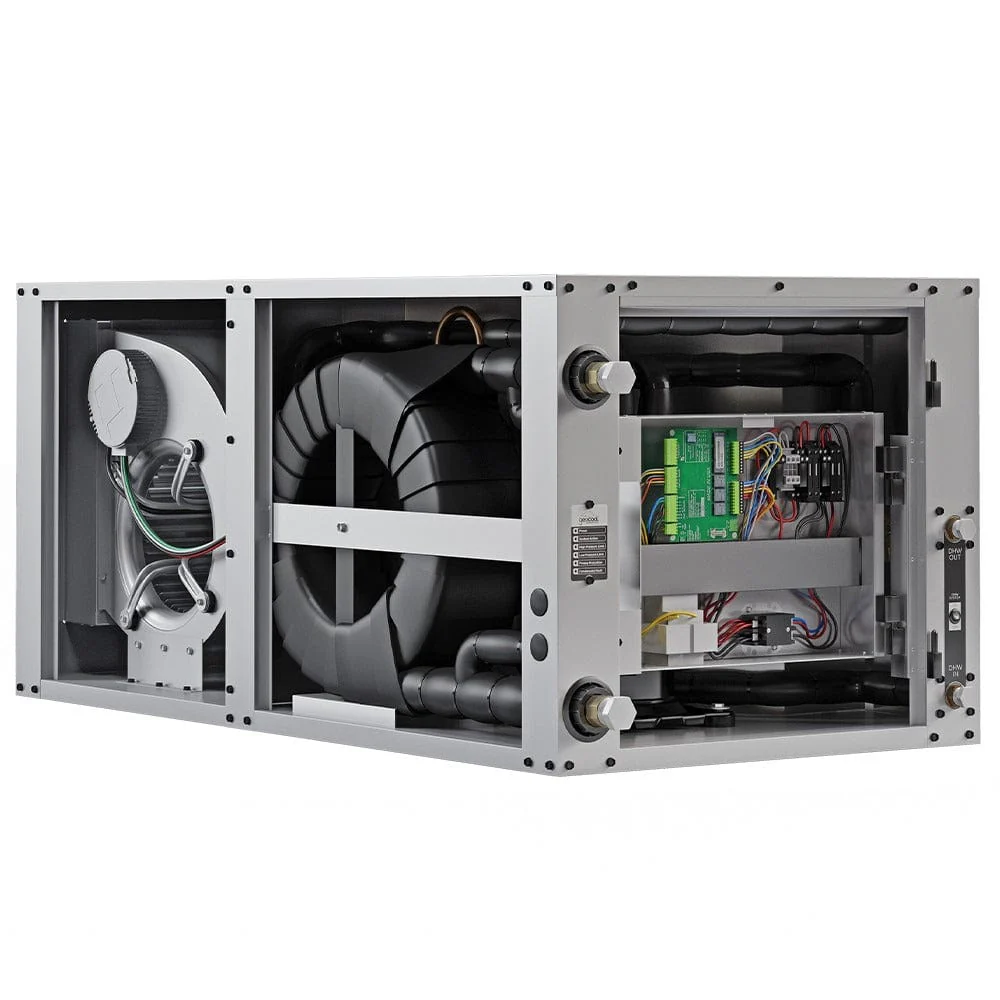

MRCOOL GeoCool 48K BTU 4 Ton Horizontal Heat Pump with Desuperheater GCHPH048TGTANDL
MRCOOL GeoCool 48K BTU 4 Ton Horizontal Two-Stage Left Return Geothermal Heat Pump with Desuperheater GCHPH048TGTANDL
Why is the MRCOOL GeoCool 48K BTU 4 Ton Horizontal Two-Stage Left Return Geothermal Heat Pump with Desuperheater GCHPH048TGTANDL the best choice for efficient home heating and cooling?
The MRCOOL GeoCool 48K BTU 4 Ton Horizontal Two-Stage Left Return Geothermal Heat Pump with Desuperheater GCHPH048TGTANDL is the best choice for efficient home heating and cooling due to its high energy efficiency, reducing utility bills. Its two-stage operation provides precise temperature control, while the desuperheater offers additional energy savings by preheating water. This eco-friendly unit is ideal for homeowners seeking sustainable, reliable, and cost-effective climate control solutions.
Features
- Qualifies for federal tax credit, and other incentives
- Highest energy efficiency in its class
- Safety high and low-pressure switches
- Quiet operation
- Full featured sinusoidal eon motor control technology
- Insulated sloped stainless steel drain pan
- Advanced unit control board with diagnostic LEDs
- Double O-ring water connections
- Easy service access

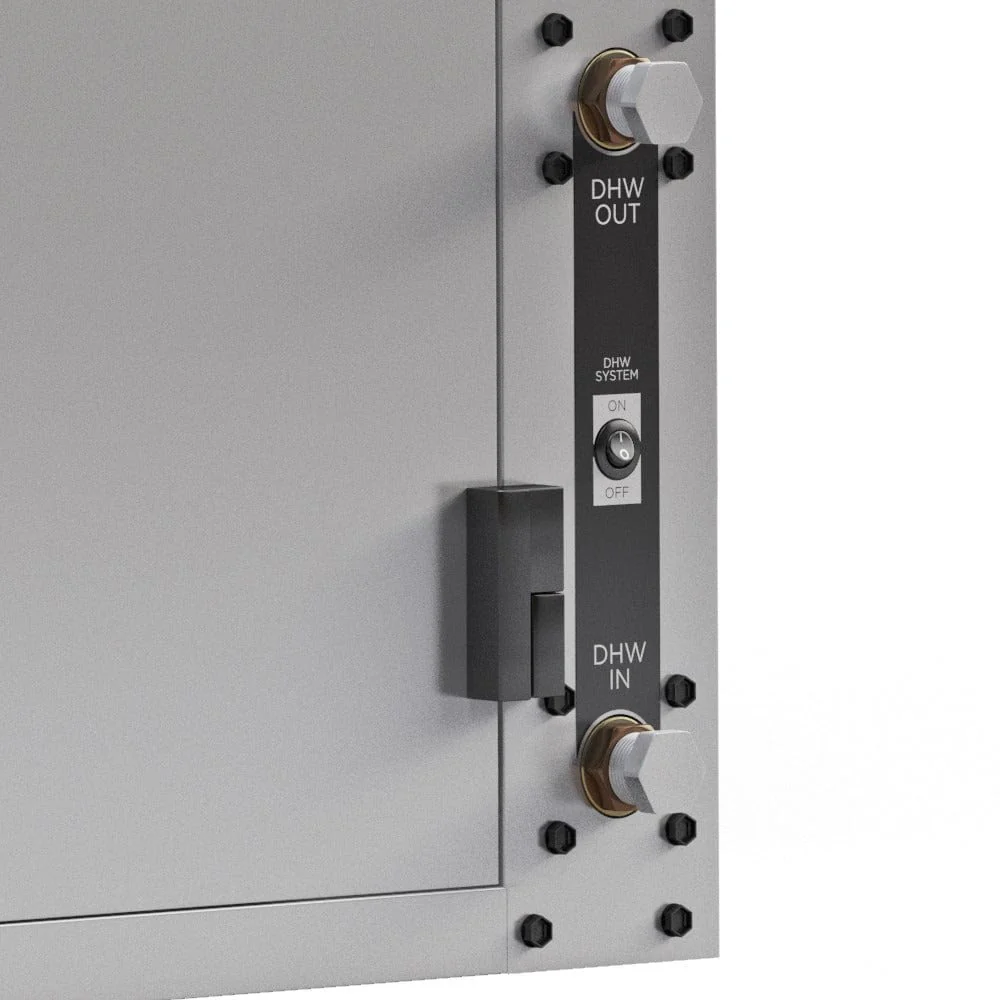

- Optional domestic water pre-heating
- Made in the USA
- 10 year compressor warranty
Manuals
Manuals:
- GCHP Customer Brochure
- GCHP Desuperheater Manual
- GCHP Installation Manual
- GCHP Specification Manual
- GCHP Warranty Sheet
Specifications
Specifications:
| Dimensions | 23.125" H x 56" D x 25.75" W |
| AHRI Certified | Yes |
| ASHRAE Compliant | No |
| Base Warranty | 5 year limited parts warranty |
| Blower Motor Hp | 3/4 |
| Blower Motor Type | Axial Flux (No Shaft) BLA |
| Color | Gray |
|
Color Family
|
Gray |
|
Compressor Motor Type
|
Scroll |
|
Contains Aerosol
|
Yes |
|
Contains Chemicals
|
Yes |
|
Contains Compressed Gas
|
Yes |
| Contains Electronics | Yes |
| Cooling Capacity | 48000 |
| COP 47 | 4.1-5.0 |
| COP 47 Part Load | 4.3-5.0 |
| Cycle | 60 |
| EER | 20.0-28.6 |
| EER Part Load | 26.6-35 |
| Energy Star Certified | Yes |
| Energy Star Compliant | Yes |
| ETL Certified | No |
| ETL Listed | Yes |
| Filter Size | 20x22 & 20x20 |
| Filter Type | Replaceable |
| Freight Class | 70 |
| Has Batteries | No |
| Heating Capacity | 48000 |
| LEED Certified | No |
| Max Coverage Area | 2000 |
| Max Fuse Breaker | 57.9(W/O Desupe |
| Min Circuit Ampacity | 35.2 |
| Net Weight | 345 |
| Phase | 1 |
| Proposition 65 Warning | Yes |
| Refrigerant Type | R-410A |
| Registered Warranty | 10 year registered parts limited warranty & 10 year compressor warranty |
| Restricted States | No |
| Stage | Two-Stage |
| Tonnage | 4 |
| UL Listed | No |
| UL Reconized | No |
| Voltage | 230 |
MRCOOL GeoCool 48K BTU 4 Ton Horizontal Two-Stage Left Return Geothermal Heat Pump with Desuperheater GCHPH048TGTANDL
Why is the MRCOOL GeoCool 48K BTU 4 Ton Horizontal Two-Stage Left Return Geothermal Heat Pump with Desuperheater GCHPH048TGTANDL the best choice for efficient home heating and cooling?
The MRCOOL GeoCool 48K BTU 4 Ton Horizontal Two-Stage Left Return Geothermal Heat Pump with Desuperheater GCHPH048TGTANDL is the best choice for efficient home heating and cooling due to its high energy efficiency, reducing utility bills. Its two-stage operation provides precise temperature control, while the desuperheater offers additional energy savings by preheating water. This eco-friendly unit is ideal for homeowners seeking sustainable, reliable, and cost-effective climate control solutions.
Features
- Qualifies for federal tax credit, and other incentives
- Highest energy efficiency in its class
- Safety high and low-pressure switches
- Quiet operation
- Full featured sinusoidal eon motor control technology
- Insulated sloped stainless steel drain pan
- Advanced unit control board with diagnostic LEDs
- Double O-ring water connections
- Easy service access
- Optional domestic water pre-heating
- Made in the USA
- 10 year compressor warranty
Manuals
Manuals:
- GCHP Customer Brochure
- GCHP Desuperheater Manual
- GCHP Installation Manual
- GCHP Specification Manual
- GCHP Warranty Sheet
Specifications
Specifications:
| Dimensions | 23.125" H x 56" D x 25.75" W |
| AHRI Certified | Yes |
| ASHRAE Compliant | No |
| Base Warranty | 5 year limited parts warranty |
| Blower Motor Hp | 3/4 |
| Blower Motor Type | Axial Flux (No Shaft) BLA |
| Color | Gray |
|
Color Family
|
Gray |
|
Compressor Motor Type
|
Scroll |
|
Contains Aerosol
|
Yes |
|
Contains Chemicals
|
Yes |
|
Contains Compressed Gas
|
Yes |
| Contains Electronics | Yes |
| Cooling Capacity | 48000 |
| COP 47 | 4.1-5.0 |
| COP 47 Part Load | 4.3-5.0 |
| Cycle | 60 |
| EER | 20.0-28.6 |
| EER Part Load | 26.6-35 |
| Energy Star Certified | Yes |
| Energy Star Compliant | Yes |
| ETL Certified | No |
| ETL Listed | Yes |
| Filter Size | 20x22 & 20x20 |
| Filter Type | Replaceable |
| Freight Class | 70 |
| Has Batteries | No |
| Heating Capacity | 48000 |
| LEED Certified | No |
| Max Coverage Area | 2000 |
| Max Fuse Breaker | 57.9(W/O Desupe |
| Min Circuit Ampacity | 35.2 |
| Net Weight | 345 |
| Phase | 1 |
| Proposition 65 Warning | Yes |
| Refrigerant Type | R-410A |
| Registered Warranty | 10 year registered parts limited warranty & 10 year compressor warranty |
| Restricted States | No |
| Stage | Two-Stage |
| Tonnage | 4 |
| UL Listed | No |
| UL Reconized | No |
| Voltage | 230 |
Original: $8,579.20
-70%$8,579.20
$2,573.76Description
MRCOOL GeoCool 48K BTU 4 Ton Horizontal Two-Stage Left Return Geothermal Heat Pump with Desuperheater GCHPH048TGTANDL
Why is the MRCOOL GeoCool 48K BTU 4 Ton Horizontal Two-Stage Left Return Geothermal Heat Pump with Desuperheater GCHPH048TGTANDL the best choice for efficient home heating and cooling?
The MRCOOL GeoCool 48K BTU 4 Ton Horizontal Two-Stage Left Return Geothermal Heat Pump with Desuperheater GCHPH048TGTANDL is the best choice for efficient home heating and cooling due to its high energy efficiency, reducing utility bills. Its two-stage operation provides precise temperature control, while the desuperheater offers additional energy savings by preheating water. This eco-friendly unit is ideal for homeowners seeking sustainable, reliable, and cost-effective climate control solutions.
Features
- Qualifies for federal tax credit, and other incentives
- Highest energy efficiency in its class
- Safety high and low-pressure switches
- Quiet operation
- Full featured sinusoidal eon motor control technology
- Insulated sloped stainless steel drain pan
- Advanced unit control board with diagnostic LEDs
- Double O-ring water connections
- Easy service access
- Optional domestic water pre-heating
- Made in the USA
- 10 year compressor warranty
Manuals
Manuals:
- GCHP Customer Brochure
- GCHP Desuperheater Manual
- GCHP Installation Manual
- GCHP Specification Manual
- GCHP Warranty Sheet
Specifications
Specifications:
| Dimensions | 23.125" H x 56" D x 25.75" W |
| AHRI Certified | Yes |
| ASHRAE Compliant | No |
| Base Warranty | 5 year limited parts warranty |
| Blower Motor Hp | 3/4 |
| Blower Motor Type | Axial Flux (No Shaft) BLA |
| Color | Gray |
|
Color Family
|
Gray |
|
Compressor Motor Type
|
Scroll |
|
Contains Aerosol
|
Yes |
|
Contains Chemicals
|
Yes |
|
Contains Compressed Gas
|
Yes |
| Contains Electronics | Yes |
| Cooling Capacity | 48000 |
| COP 47 | 4.1-5.0 |
| COP 47 Part Load | 4.3-5.0 |
| Cycle | 60 |
| EER | 20.0-28.6 |
| EER Part Load | 26.6-35 |
| Energy Star Certified | Yes |
| Energy Star Compliant | Yes |
| ETL Certified | No |
| ETL Listed | Yes |
| Filter Size | 20x22 & 20x20 |
| Filter Type | Replaceable |
| Freight Class | 70 |
| Has Batteries | No |
| Heating Capacity | 48000 |
| LEED Certified | No |
| Max Coverage Area | 2000 |
| Max Fuse Breaker | 57.9(W/O Desupe |
| Min Circuit Ampacity | 35.2 |
| Net Weight | 345 |
| Phase | 1 |
| Proposition 65 Warning | Yes |
| Refrigerant Type | R-410A |
| Registered Warranty | 10 year registered parts limited warranty & 10 year compressor warranty |
| Restricted States | No |
| Stage | Two-Stage |
| Tonnage | 4 |
| UL Listed | No |
| UL Reconized | No |
| Voltage | 230 |
