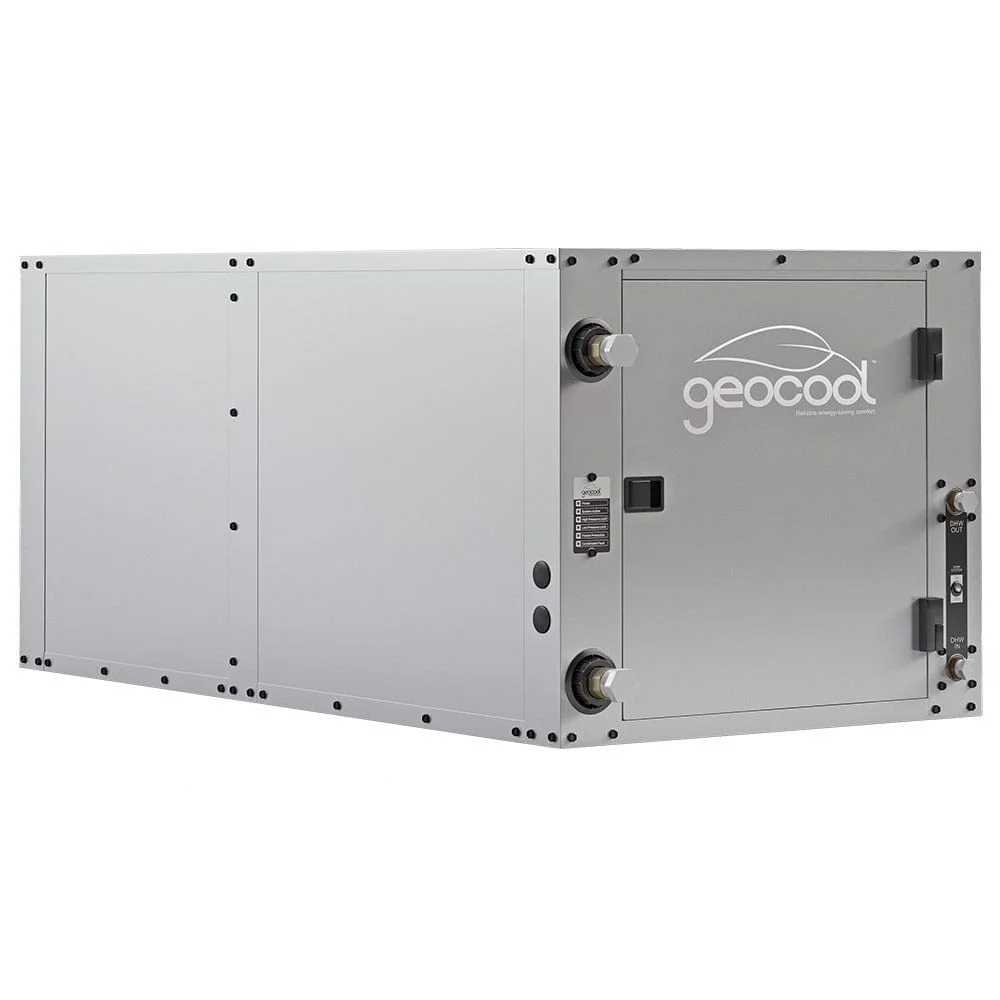

MRCOOL GeoCool 36K BTU 3 Ton Horizontal Heat Pump with Desuperheater GCHPH036TGTANDL
MRCOOL GeoCool 36K BTU 3 Ton Horizontal Two-Stage Left Return Geothermal Heat Pump with Desuperheater GCHPH036TGTANDL
Why is the MRCOOL GeoCool 36K BTU 3 Ton Horizontal Two-Stage Left Return Geothermal Heat Pump with Desuperheater GCHPH036TGTANDL the optimal choice for energy-efficient heating and cooling?
The MRCOOL GeoCool 36K BTU 3 Ton Horizontal Two-Stage Left Return Geothermal Heat Pump with Desuperheater GCHPH036TGTANDL is the optimal choice for energy-efficient heating and cooling. Its 36K BTU capacity and two-stage operation provide powerful, precise temperature control. The horizontal design with a left return allows for versatile installation. The built-in desuperheater enhances efficiency by repurposing waste heat for water heating, maximizing energy savings and delivering superior performance.
Features
- Qualifies for federal tax credit, and other incentives
- Highest energy efficiency in its class
- Safety high and low pressure switches
- Quiet operation
- Full featured sinusoidal eon motor control technology
- Insulated sloped stainless steel drain pan
- Advanced unit control board with diagnostic LEDs
- Double O-ring water connections
- Easy service access
- Optional domestic water pre-heating
- Made in the USA
- 10 year compressor warranty
Manuals
Manuals:
- GCHP Customer Brochure
- GCHP Desuperheater Manual
- GCHP Installation Manual
- GCHP Specification Manual
- GCHP Warranty Sheet
Specifications
Specifications:
| Dimensions | 23.125" H x 51" D x 25.75" W |
| AHRI Certified | Yes |
| ASHRAE Compliant | No |
| Base Warranty | 5 year limited parts warranty |
| Blower Motor HP | 3/4 |
| Blower Motor Type | Axial Flux (No Shaft) BLA |
| Color | Gray |
|
Color Family
|
Gray |
|
Compressor Motor Type
|
Scroll |
|
Contains Aerosol
|
Yes |
|
Contains Chemicals
|
Yes |
|
Contains Compressed Gas
|
Yes |
| Contains Electronics | Yes |
| Cooling Capacity | 36000 |
| COP 47 | 4.2-5.2 |
| COP 47 Part Load | 4.6-5.4 |
| CYCLE | 60 |
| EER | 20.6-28.7 |
| EER Part Load | 27.6-35.3 |
| Energy Star Certified | Yes |
| Energy Star Compliant | Yes |
| ETL Certified | No |
| ETL Listed | Yes |
| Filter Size | 20x37 |
| Filter Type | Replaceable |
| Freight Class | 70 |
| Has Batteries | No |
| Heating Capacity | 36000 |
| LEED Certified | No |
| Max Coverage Area | 1500 |
| Max Fuse Breaker | 42.1(W/O Desupe |
| Min Circuit Ampacity | 26.4 |
| Net Weight | 330 |
| Phase | 1 |
| Proposition 65 Warning | Yes |
| Refrigerant Type | R-410A |
| Registered Warranty | 10 year registered parts limited warranty & 10 year compressor warranty |
| Restricted States | No |
| Stage | Two-Stage |
| Tonnage | 3 |
| UL Listed | No |
| UL Recognized | No |
| Voltage | 230 |
MRCOOL GeoCool 36K BTU 3 Ton Horizontal Two-Stage Left Return Geothermal Heat Pump with Desuperheater GCHPH036TGTANDL
Why is the MRCOOL GeoCool 36K BTU 3 Ton Horizontal Two-Stage Left Return Geothermal Heat Pump with Desuperheater GCHPH036TGTANDL the optimal choice for energy-efficient heating and cooling?
The MRCOOL GeoCool 36K BTU 3 Ton Horizontal Two-Stage Left Return Geothermal Heat Pump with Desuperheater GCHPH036TGTANDL is the optimal choice for energy-efficient heating and cooling. Its 36K BTU capacity and two-stage operation provide powerful, precise temperature control. The horizontal design with a left return allows for versatile installation. The built-in desuperheater enhances efficiency by repurposing waste heat for water heating, maximizing energy savings and delivering superior performance.
Features
- Qualifies for federal tax credit, and other incentives
- Highest energy efficiency in its class
- Safety high and low pressure switches
- Quiet operation
- Full featured sinusoidal eon motor control technology
- Insulated sloped stainless steel drain pan
- Advanced unit control board with diagnostic LEDs
- Double O-ring water connections
- Easy service access
- Optional domestic water pre-heating
- Made in the USA
- 10 year compressor warranty
Manuals
Manuals:
- GCHP Customer Brochure
- GCHP Desuperheater Manual
- GCHP Installation Manual
- GCHP Specification Manual
- GCHP Warranty Sheet
Specifications
Specifications:
| Dimensions | 23.125" H x 51" D x 25.75" W |
| AHRI Certified | Yes |
| ASHRAE Compliant | No |
| Base Warranty | 5 year limited parts warranty |
| Blower Motor HP | 3/4 |
| Blower Motor Type | Axial Flux (No Shaft) BLA |
| Color | Gray |
|
Color Family
|
Gray |
|
Compressor Motor Type
|
Scroll |
|
Contains Aerosol
|
Yes |
|
Contains Chemicals
|
Yes |
|
Contains Compressed Gas
|
Yes |
| Contains Electronics | Yes |
| Cooling Capacity | 36000 |
| COP 47 | 4.2-5.2 |
| COP 47 Part Load | 4.6-5.4 |
| CYCLE | 60 |
| EER | 20.6-28.7 |
| EER Part Load | 27.6-35.3 |
| Energy Star Certified | Yes |
| Energy Star Compliant | Yes |
| ETL Certified | No |
| ETL Listed | Yes |
| Filter Size | 20x37 |
| Filter Type | Replaceable |
| Freight Class | 70 |
| Has Batteries | No |
| Heating Capacity | 36000 |
| LEED Certified | No |
| Max Coverage Area | 1500 |
| Max Fuse Breaker | 42.1(W/O Desupe |
| Min Circuit Ampacity | 26.4 |
| Net Weight | 330 |
| Phase | 1 |
| Proposition 65 Warning | Yes |
| Refrigerant Type | R-410A |
| Registered Warranty | 10 year registered parts limited warranty & 10 year compressor warranty |
| Restricted States | No |
| Stage | Two-Stage |
| Tonnage | 3 |
| UL Listed | No |
| UL Recognized | No |
| Voltage | 230 |
Original: $8,173.60
-70%$8,173.60
$2,452.08Description
MRCOOL GeoCool 36K BTU 3 Ton Horizontal Two-Stage Left Return Geothermal Heat Pump with Desuperheater GCHPH036TGTANDL
Why is the MRCOOL GeoCool 36K BTU 3 Ton Horizontal Two-Stage Left Return Geothermal Heat Pump with Desuperheater GCHPH036TGTANDL the optimal choice for energy-efficient heating and cooling?
The MRCOOL GeoCool 36K BTU 3 Ton Horizontal Two-Stage Left Return Geothermal Heat Pump with Desuperheater GCHPH036TGTANDL is the optimal choice for energy-efficient heating and cooling. Its 36K BTU capacity and two-stage operation provide powerful, precise temperature control. The horizontal design with a left return allows for versatile installation. The built-in desuperheater enhances efficiency by repurposing waste heat for water heating, maximizing energy savings and delivering superior performance.
Features
- Qualifies for federal tax credit, and other incentives
- Highest energy efficiency in its class
- Safety high and low pressure switches
- Quiet operation
- Full featured sinusoidal eon motor control technology
- Insulated sloped stainless steel drain pan
- Advanced unit control board with diagnostic LEDs
- Double O-ring water connections
- Easy service access
- Optional domestic water pre-heating
- Made in the USA
- 10 year compressor warranty
Manuals
Manuals:
- GCHP Customer Brochure
- GCHP Desuperheater Manual
- GCHP Installation Manual
- GCHP Specification Manual
- GCHP Warranty Sheet
Specifications
Specifications:
| Dimensions | 23.125" H x 51" D x 25.75" W |
| AHRI Certified | Yes |
| ASHRAE Compliant | No |
| Base Warranty | 5 year limited parts warranty |
| Blower Motor HP | 3/4 |
| Blower Motor Type | Axial Flux (No Shaft) BLA |
| Color | Gray |
|
Color Family
|
Gray |
|
Compressor Motor Type
|
Scroll |
|
Contains Aerosol
|
Yes |
|
Contains Chemicals
|
Yes |
|
Contains Compressed Gas
|
Yes |
| Contains Electronics | Yes |
| Cooling Capacity | 36000 |
| COP 47 | 4.2-5.2 |
| COP 47 Part Load | 4.6-5.4 |
| CYCLE | 60 |
| EER | 20.6-28.7 |
| EER Part Load | 27.6-35.3 |
| Energy Star Certified | Yes |
| Energy Star Compliant | Yes |
| ETL Certified | No |
| ETL Listed | Yes |
| Filter Size | 20x37 |
| Filter Type | Replaceable |
| Freight Class | 70 |
| Has Batteries | No |
| Heating Capacity | 36000 |
| LEED Certified | No |
| Max Coverage Area | 1500 |
| Max Fuse Breaker | 42.1(W/O Desupe |
| Min Circuit Ampacity | 26.4 |
| Net Weight | 330 |
| Phase | 1 |
| Proposition 65 Warning | Yes |
| Refrigerant Type | R-410A |
| Registered Warranty | 10 year registered parts limited warranty & 10 year compressor warranty |
| Restricted States | No |
| Stage | Two-Stage |
| Tonnage | 3 |
| UL Listed | No |
| UL Recognized | No |
| Voltage | 230 |
