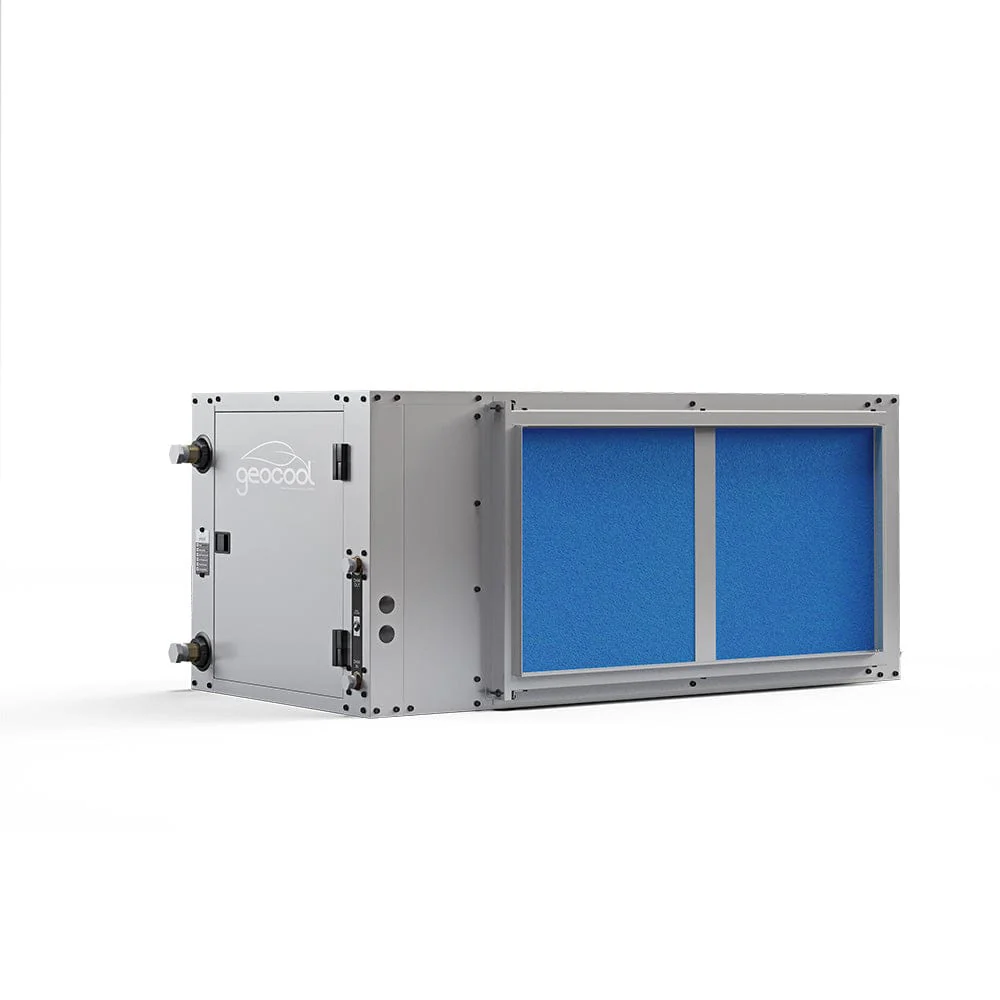

MRCOOL GeoCool 36K BTU 3 Ton Horizontal Heat Pump GCHPH036TGTANXL
MRCOOL GeoCool 36K BTU 3 Ton Horizontal Two-Stage Left Return Geothermal Heat Pump GCHPH036TGTANXL
Why is the MRCOOL GeoCool 36K BTU 3 Ton Horizontal Two-Stage Left Return Geothermal Heat Pump GCHPH036TGTANXL an ideal choice for high-efficiency climate control in large spaces?
The MRCOOL GeoCool 36K BTU 3 Ton Horizontal Two-Stage Left Return Geothermal Heat Pump GCHPH036TGTANXL is ideal for high-efficiency climate control in large spaces. Its 36K BTU capacity and two-stage operation provide powerful and precise temperature regulation, enhancing comfort. The horizontal design with a left return allows for flexible installation in various setups. This geothermal heat pump delivers exceptional energy efficiency and reliable performance, making it perfect for managing climate in sizable areas.
Features
- Qualifies for federal tax credit, and other incentives
- Highest energy efficiency in its class
- Safety high and low pressure switches
- Quiet operation
- Full featured sinusoidal eon motor control technology
- Insulated sloped stainless steel drain pan
- Advanced unit control board with diagnostic LEDs
- Double O-ring water connections
- Easy service access
- Optional domestic water pre-heating
- Made in the USA
- 10 year compressor warranty
Manuals
Manuals:
| Brochure |
| Install Manual |
| Specs |
| Owner Manual |
| Warranty Doc |
Specifications
Specifications:
|
Dimensions |
51" D x 23.125" H x 25.75" W |
|
EER |
Ground Water (FULL) 27.20 / Ground Loop (FULL)17.86 |
|
EER Part Load |
Ground Water (PART) 35.70 / Ground Loop (PART) 25.84 |
|
COP 47 |
Ground Water (FULL) 5.30 / Ground Loop 4.40 (FULL) |
|
COP 47 Part Load |
Ground Water (PART) 5.60 / Ground Loop 4.80 (PART) |
|
HSPF |
Ground Water Fluid Flow Rate | COOLING: (PART) 8 - 9 (FULL) / HEATING: (PART) 8 - 9 (FULL) |
|
AFUE |
Ground Loop Fluid Flow Rate | COOLING: (PART) 8 - 9 (FULL) / HEATING: (PART) 8 - 9 (FULL) |
|
CFM |
COOLING (PART) 1150 - 1350 (FULL) / HEATING (PART) 1100 - 1100 (FULL) |
|
Tonnage |
3 |
|
Cooling Capacity |
Ground Water (PART) 33000 - 43000 (FULL) / Ground Loop (PART) 30300 - 39000 (FULL) |
|
Heating Capacity |
Ground Water (PART) 27500 - 38000 (FULL) / Ground Loop (PART) 24000 - 26900 (FULL) |
|
Voltage |
230 |
|
Phase |
1 |
|
Cycle |
60 |
|
Stage |
Two-Stage |
|
Max Fuse Breaker |
42.1(W/O Desupe |
|
Min Circuit Ampacity |
26.4( |
|
Color |
Gray |
|
Color Family |
Gray |
|
Max Coverage Area |
1500 |
|
Refrigerant Type |
R-410A |
|
Compressor Motor Type |
Scroll |
|
Blower Motor Type |
Axial Flux (No Shaft) BLA |
|
Blower Motor Hp |
3/4 |
|
Filter Type |
Replaceable |
|
Filter Size |
20x37 |
|
UL Reconized |
No |
|
UL Listed |
No |
|
ETL Listed |
Yes |
|
ETL Certified |
No |
|
LEED Certified |
No |
|
ASHRAE Compliant |
No |
|
Energy Star Compliant |
Yes |
|
Energy Star Certified |
Yes |
|
AHRI Certified |
Yes |
|
Registered Warranty |
10 year registered parts limited warranty & 10 year compressor warranty |
|
Base Warranty |
5 year limited parts warranty |
|
Has Batteries |
No |
|
Contains Electronics |
Yes |
|
Contains Chemicals |
Yes |
|
Contains Aerosol |
Yes |
|
Contains Compressed Gas |
Yes |
|
Proposition 65 Warning |
Yes |
|
Restricted States |
No |
|
Net Weight |
330 |
|
Freight Class |
70 |
