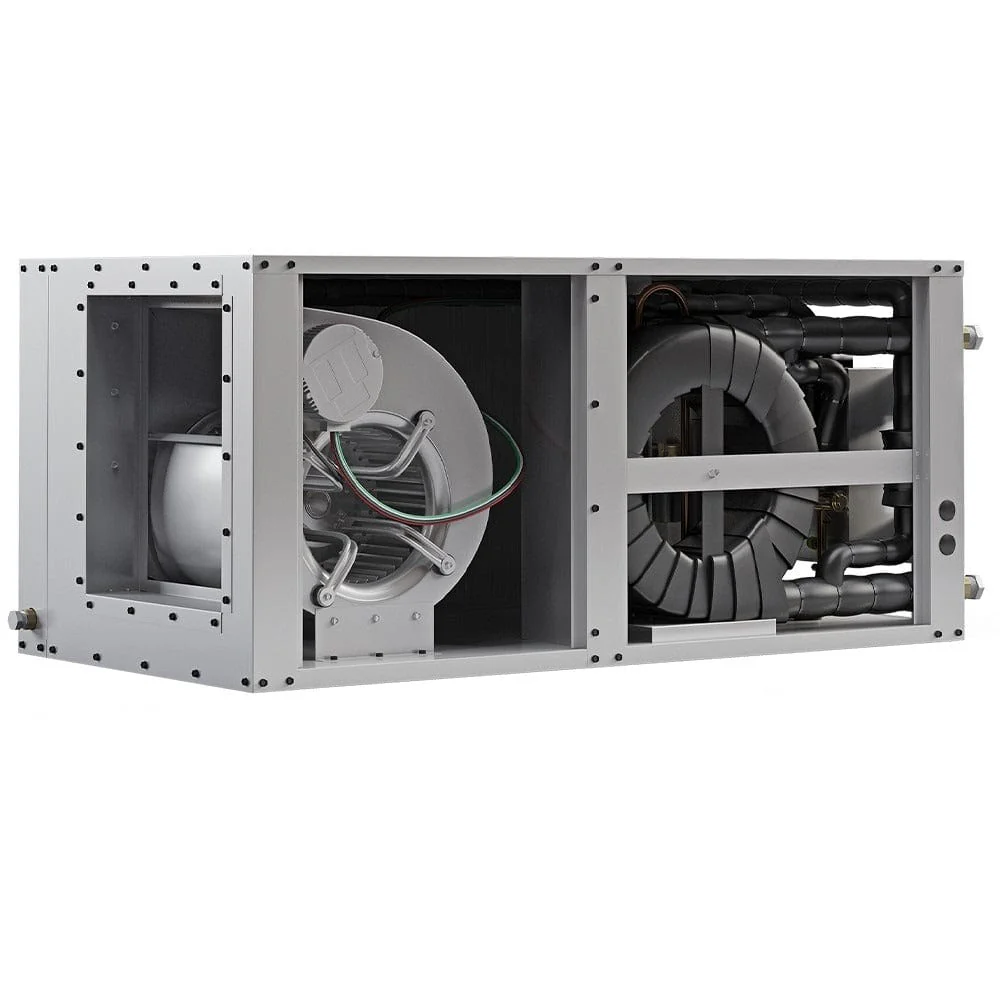

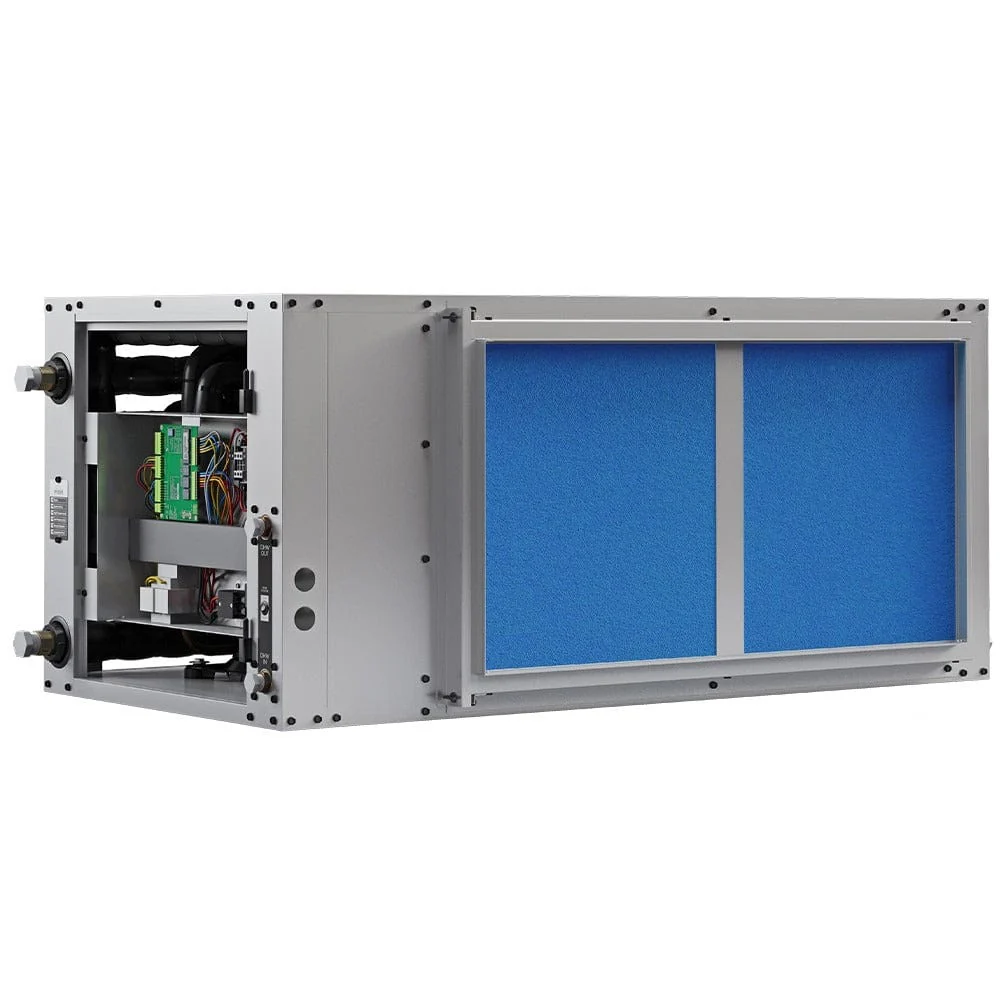

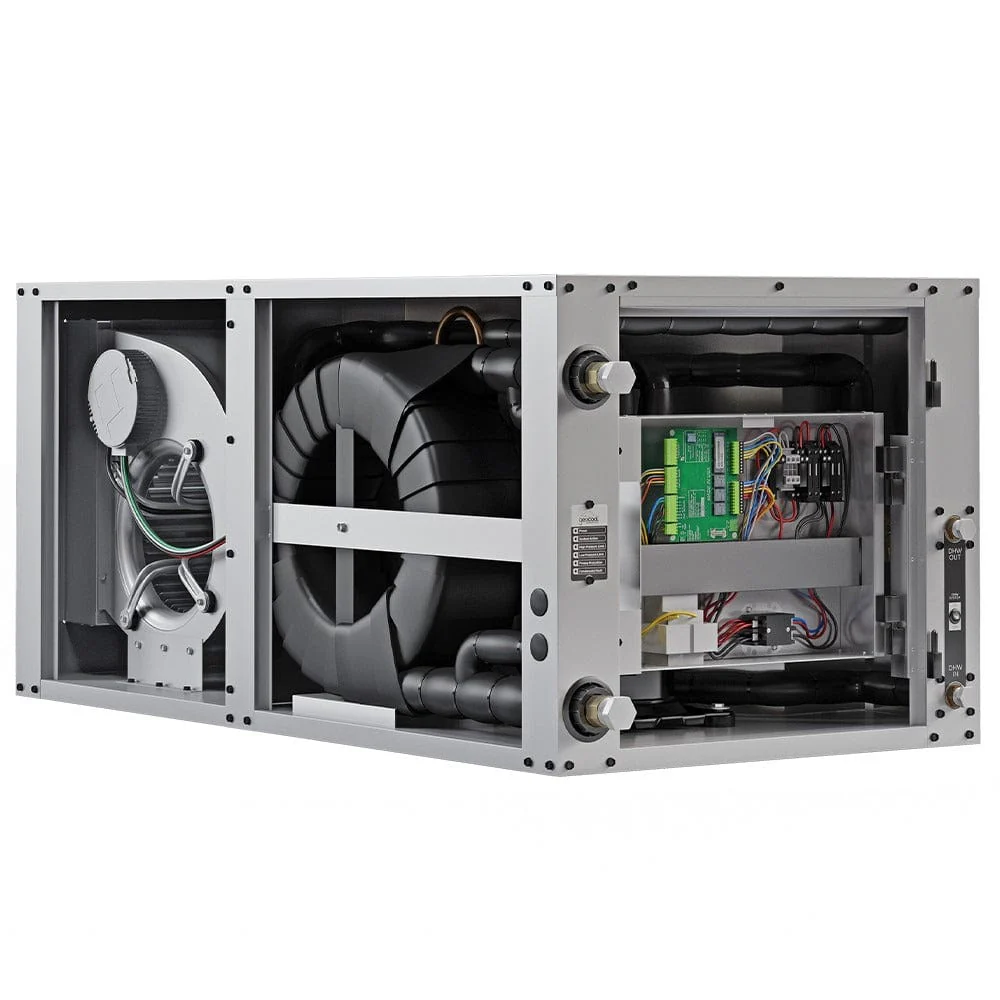

MRCOOL GeoCool 24K BTU 2 Ton Horizontal Heat Pump with Desuperheater GCHPH024TGTANDR
MRCOOL GeoCool 24K BTU 2 Ton Horizontal Two-Stage Right Return Geothermal Heat Pump with Desuperheater GCHPH024TGTANDR
Why is the MRCOOL GeoCool 24K BTU 2 Ton Horizontal Two-Stage Right Return Geothermal Heat Pump with Desuperheater GCHPH024TGTANDR the ideal solution for efficient and sustainable home heating and cooling?
The MRCOOL GeoCool 24K BTU 2 Ton Horizontal Two-Stage Right Return Geothermal Heat Pump with Desuperheater GCHPH024TGTANDR is the ideal solution for efficient and sustainable home heating and cooling. With a 24K BTU capacity and two-stage system, it provides precise temperature control. The horizontal design with right return ensures flexible installation options. The integrated desuperheater enhances efficiency by generating additional hot water. Utilizing geothermal energy, it reduces utility costs and environmental impact.
Features
- Qualifies for federal tax credit, and other incentives
- Highest energy efficiency in its class
- Safety high and low pressure switches
- Quiet operation
- Full featured sinusoidal eon motor control technology
- Insulated sloped stainless steel drain pan
- Advanced unit control board with diagnostic LEDs
- Double O-ring water connections
- Easy service access
- Optional domestic water pre-heating
- Made in the USA
- 10 year compressor warranty
Manuals
Manuals:
- GCHP Customer Brochure
- GCHP Desuperheater Manual
- GCHP Installation Manual
- GCHP Specification Manual
- GCHP Warranty Sheet
Specifications
Specifications:
| Dimensions | 23.125" H x 51" D x 25.75" W |
| AHRI Certified | Yes |
| Ashrae Compliant | No |
| Base Warranty | 5 year limited parts warranty |
| Blower Motor HP | 3/4 |
| Blower Motor Type | Axial Flux (No Shaft) BLA |
| Color | Gray |
|
Color Family
|
Gray |
|
Compressor Motor Type
|
Scroll |
|
Contains Aerosol
|
Yes |
|
Contains Chemicals
|
Yes |
|
Contains Compressed Gas
|
Yes |
| Contains Electronics | Yes |
| Cooling Capacity | 24000 |
| COP 47 | 4.1-5.2 |
| COP 47 Part Load | 4.5-5.3 |
| Cycle | 60 |
| EER | 21.3-28.8 |
| EER Part Load | 27.6-32.7 |
| Energy Star Certified | Yes |
| Energy Star Compliant | Yes |
| ETL Certified | No |
| ETL Listed | Yes |
| Filter Size | 20X37 |
| Filter Type | Replaceable |
| Freight Class | 85 |
| Has Batteries | No |
| Heating Capacity | 24000 |
| Leed Certified | No |
| Max Coverage Area | 1000 |
| Max Fuse Breaker | 34.0(W/O Desupe |
| Min Circuit Ampacity | 21.9 |
| Net Weight | 305 |
| Phase | 1 |
| Proposition 65 Warning | Yes |
| Refrigerant Type | R-410A |
| Registered Warranty | 10 year registered parts limited warranty & 10 year compressor warranty |
| Restricted States | No |
| Stage | Two-Stage |
| Tonnage | 2 |
| UL Listed | No |
| UL Reconized | No |
| Voltage | 230 |
