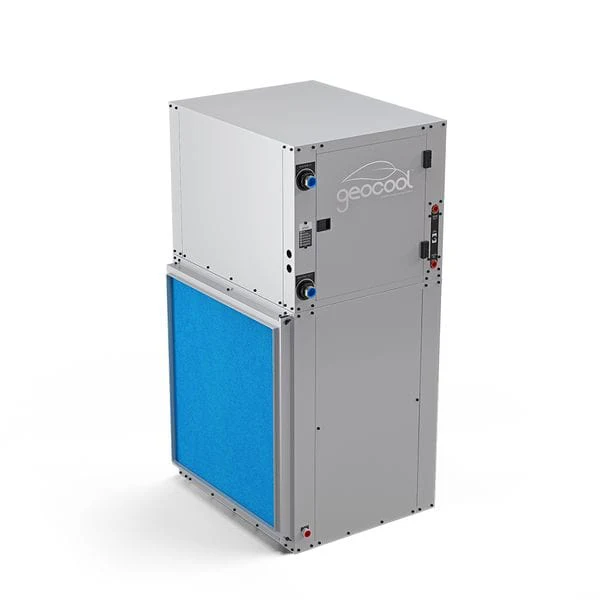

MRCOOL GeoCool 24K BTU 2 Ton Downflow Heat Pump with Heater GCHPD024TGTANDR
MRCOOL GeoCool 24K BTU 2 Ton Downflow Two-Stage Right Return Geothermal Heat Pump with Heater GCHPD024TGTANR
Why is the MRCOOL GeoCool 24K BTU 2 Ton Downflow Two-Stage Right Return Geothermal Heat Pump with Heater GCHPD024TGTANR a top choice for energy-efficient and effective home climate control?
The MRCOOL GeoCool 24K BTU 2 Ton Downflow Two-Stage Right Return Geothermal Heat Pump with Heater GCHPD024TGTANR is a top choice for energy-efficient and effective home climate control. With its 24K BTU capacity and two-stage operation, it delivers precise temperature management and enhanced comfort. The downflow design with a right return ensures versatile installation, and the integrated heater offers additional warmth during colder months. This geothermal heat pump provides reliable performance and year-round efficiency.
Features
- Color: Grey
- Size: 25 Inches
- Dimensions: 25 3/4" W x 56" H x 32" D
- Quiet operation
- Made in the USA
- Easy service access
- 5-year limited parts warranty
- Double O-ring water connections
- Highest energy efficiency in its class
- Optional domestic water pre-heating
- Safety high and low-pressure switches
- Insulated sloped stainless steel drain pan
- Advanced unit control board with diagnostic LEDs
- Qualifies for a federal tax credit, and other incentives
- Full-featured sinusoidal eon motor control technology
- 10-year registered parts limited warranty and 10-year compressor warranty
- Desuperheaters provide heat exchange which removes heat energy from compressor discharge gas
- Cooling Capacity: Ground Water (PART) 23000 - 29000 (FULL) / Ground Loop (PART) 21900 - 27000 (FULL)
- Heating Capacity: Ground Water (PART) 19000 - 25700 (FULL) / Ground Loop (PART) 16500 - 18500 (FULL)
- EER Rating Full: Ground Water (FULL) 27.40 / Ground Loop (FULL) 17.95
- EER Rating Part: Ground Water (PART) 36.50 / Ground Loop (PART) 25.93
- Voltage: 230 V
- Max Coverage: 1,000 Sq Ft
- Listings: ETL, Energy Star, AHRI
* Please Note: Installation by a licensed professional is required where applicable.
*Also Note: Warranties apply when registered and when installed by a licensed professional.
Designed with a downflow blower orientation the Mr. Cool Geothermal Downflow Two-Stage 1-Phase 60Hz CuNi Coil with Desuperheater is ideal for installation in attics. The two-stage compressor only uses the amount of energy necessary to cool/heat your room and does not constantly run on full load like single-stage units. This saves on both energy consumption and on your monthly electric bill! The Desuperheater makes the unit even more efficient. Check out the power and savings with the Mr. Cool Geothermal Downflow Two-Stage 1-Phase 60Hz CuNi Coil with Desuperheater!
Manuals
Manuals:
- GCHP Customer Brochure
- GCHP Desuperheater Manual
- GCHP Installation Manual
- GCHP Specification Manual
- GCHP Warranty Sheet
Specifications
Specifications:
| Part Number | GCHPD024TGTANDR |
| Application Type | All Purposes |
| Connection Type | Wired |
| Cooling Capacity | 23000 BTU/H |
| Electrical Phase | 1 Ph |
| Heating Technology | Electric |
| Inner Package | 1 |
| Made in USA | YES |
| Maximum Voltage | 230V |
| Refrigerant | R-410A |
| Warranty | 10 Yr |
| Zones | Single |
| Product Dimensions | 56-in X 32-in X 25.75-in |
| Weight | 335.00-lb |
| UPC | 818545023398 |
