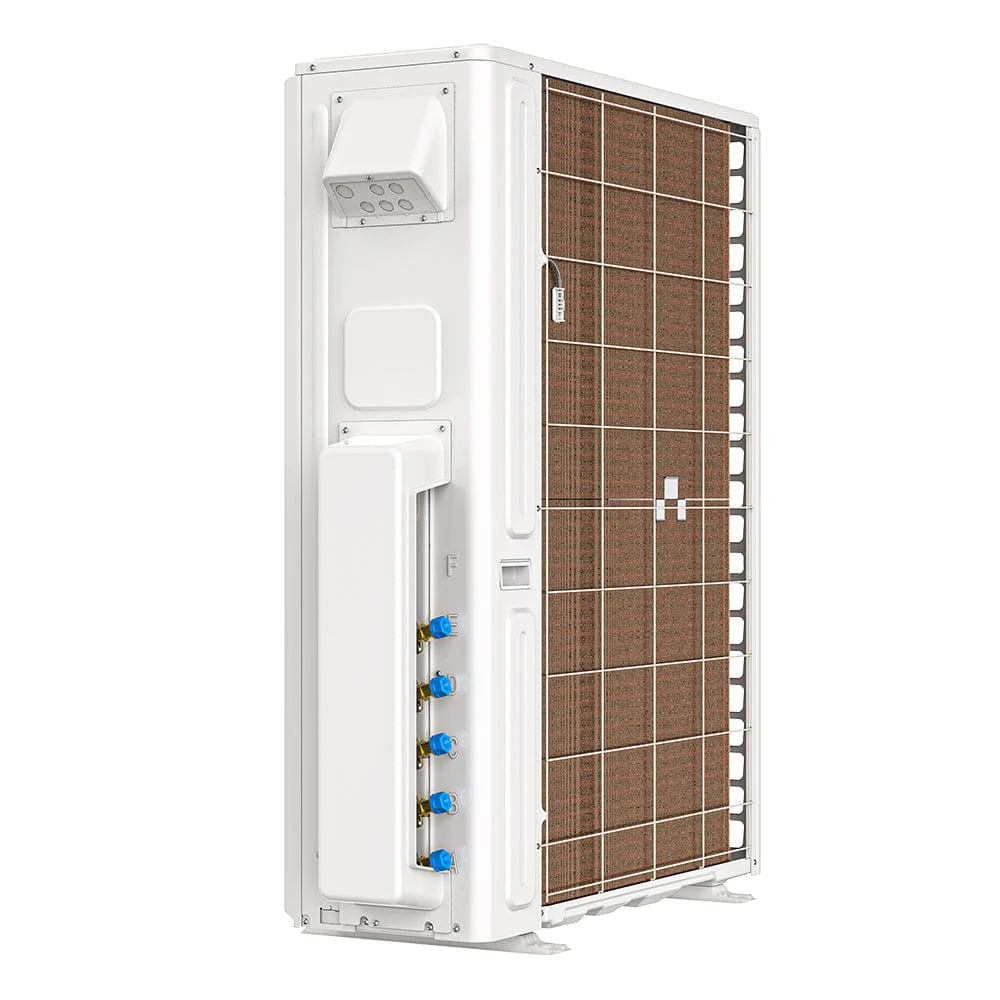

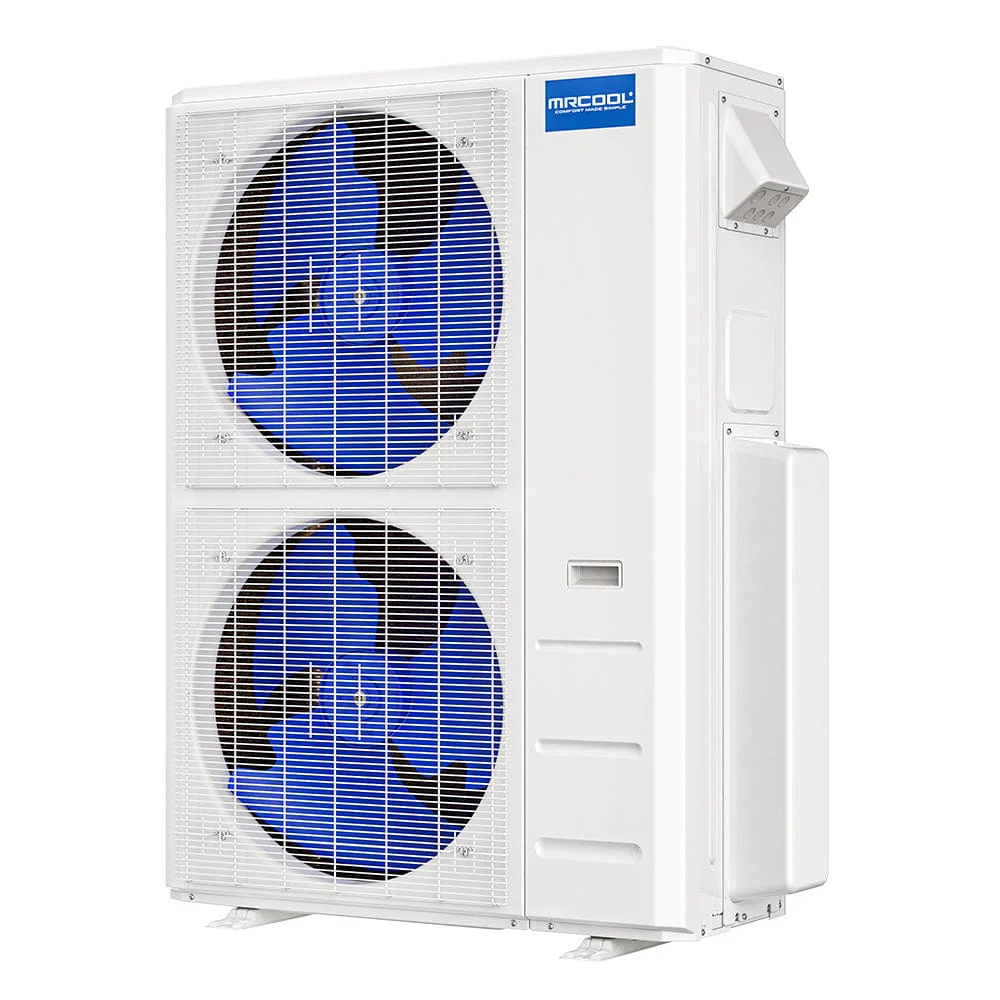

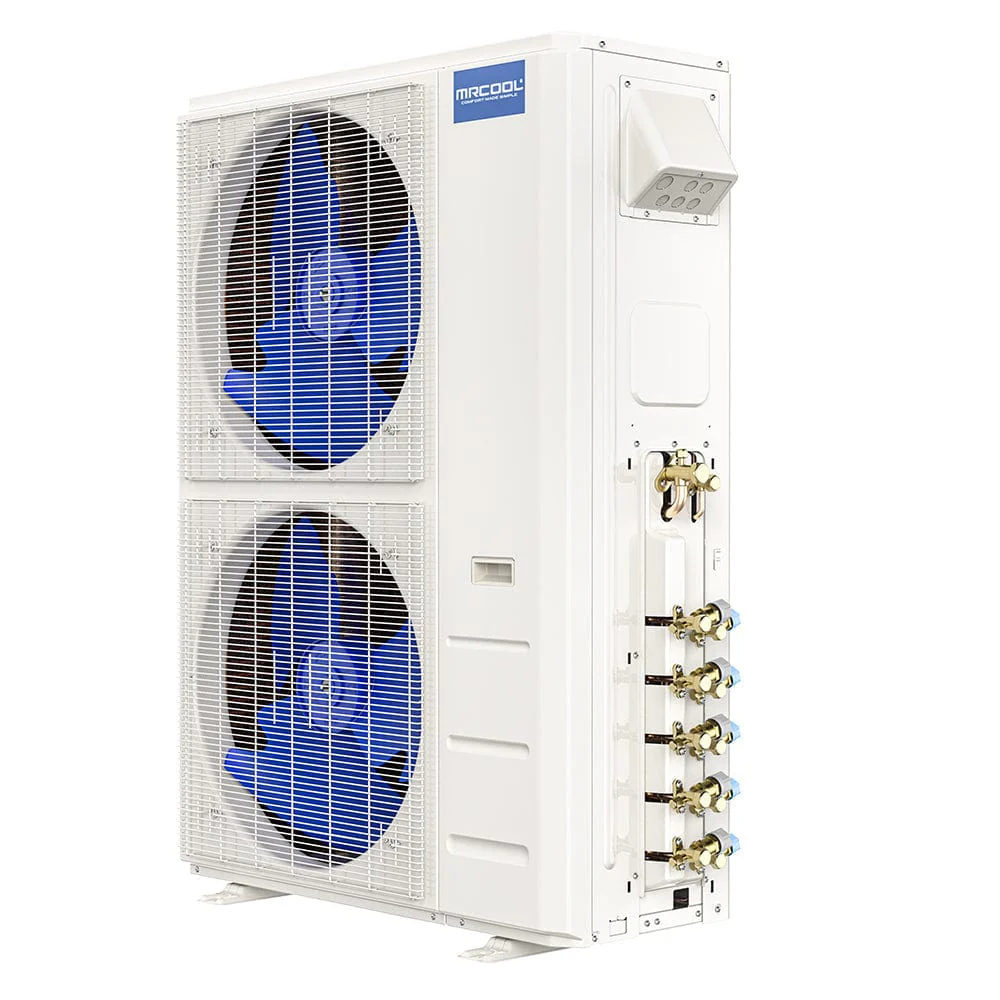

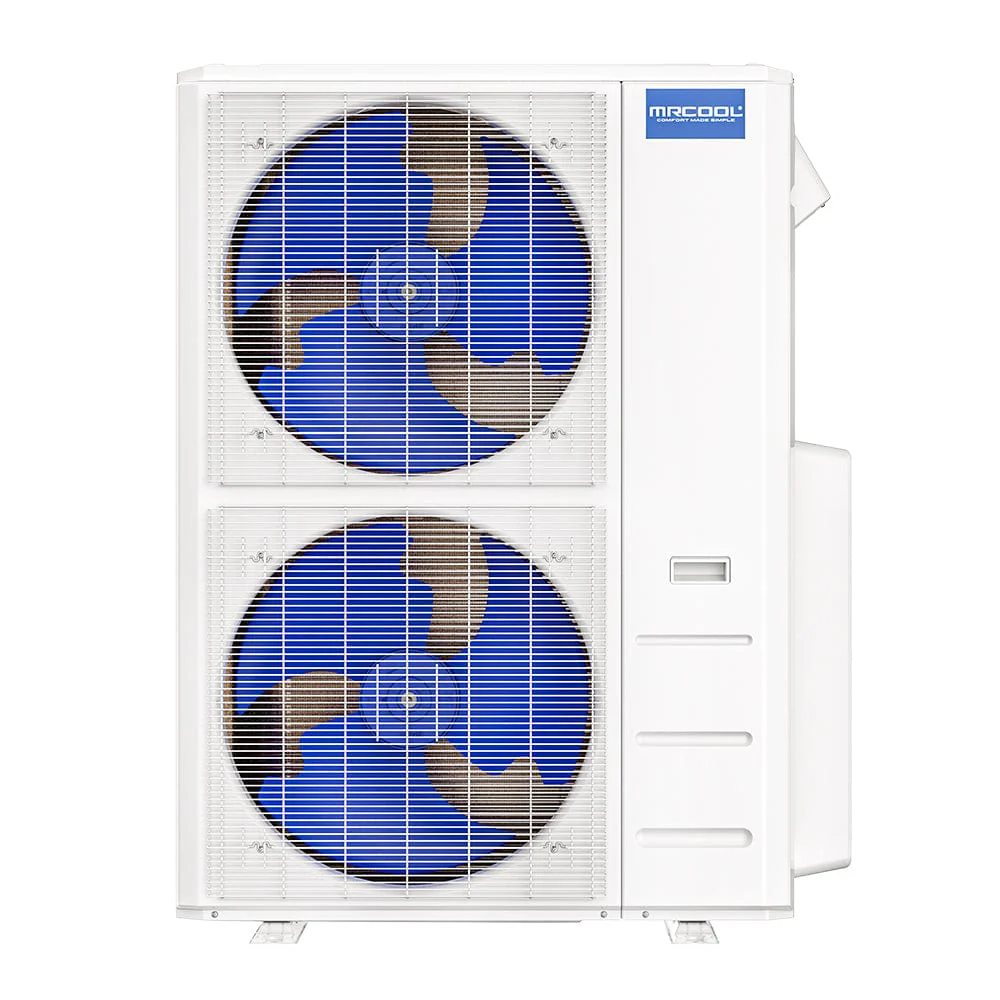

MRCOOL DIY Multi Zone 5-Zone 48K BTU Condenser DIY-MULTI5-48HP230C
MRCOOL DIY 4th Gen Multi Zone 48K BTU 5-Zone Condenser DIY-MULTI5-48HP230C
Low Stock – Call for Availability
This item is currently in low stock. For the latest availability or assistance, contact our sales team at +1-800-583-0045 or email us at [email protected]
Why is the MRCOOL DIY 4th Gen Multi Zone 48K BTU 4 Ton 5-Zone Condenser DIY-MULTI5-48HP230C a superior choice for versatile and efficient climate control?
The MRCOOL DIY 4th Gen Multi Zone 48K BTU 4 Ton 5-Zone Condenser DIY-MULTI5-48HP230C excels in providing versatile and efficient climate control across multiple zones. With a robust 48K BTU capacity and 5-zone capability, it offers tailored heating and cooling for various areas of a large home or building. Its DIY installation feature reduces installation costs, while its high energy efficiency lowers utility bills. This system is ideal for homeowners seeking customizable and cost-effective climate management throughout multiple rooms or zones.
Features:
- Up to 20.5 SEER
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- Energy Efficient DC Inverter
- R-410A environmentally friendly refrigerant
- Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
Manuals
Manuals:
- Installation Manual
- Product Brochure
- Performance Specifications
- Warranty
- Energy Guide
- AHRI Certificate
Specifications
Specifications:
| Product Dimensions | 37.48"W x 16.34"D x 52.48"H |
| Product Weight | 222.89 lbs |
| SEER2 | 20.50 |
| EER2 | 11 |
| HSPF2 | 9.2 |
| SEER | 20.5 |
| EER | 11 |
| HSPF | hspf4/hspf5 : 11/8.5 |
| CFM | 4500 |
| Cooling Capacity | 48,000 BTU |
| Heating Capacity | 48,000 BTU |
| Voltage |
Requires a minimum of 208V-230V/60HZ/40-60A (please check your home meets this electrical requirement prior to purchase) |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker |
60 A |
| Min Circuit Ampacity | 40 A |
| Color | White |
| Zone Capacity | 5 |
| Refrigerant Type | R-410A |
| Refrigerant Volume | 162 oz |
| Decibel Rating | 61.5 dBA |
| Inverter | Yes |
| Min Ambient Cool | 5°F ~ 122°F |
| Min Ambient Heat | 5°F ~ 75.2°F |
| Max Lineset Length | 221.5 ft TOTAL |
| Liquid Line Size | 1/4in |
| Suction Line Size | 3/8in +1/2in |
| Compressor Motor Type | Rotary |
| Condenser Fan Motor RPM | 900/850/800/750 |
| Wifi Compatibility | Yes |
| App Compatibility | Yes |
| Compatible with | IOS Android |
| Warranty | 5-year Parts/7-year Compressor Registered Warranty: Limited Lifetime Compressor |
