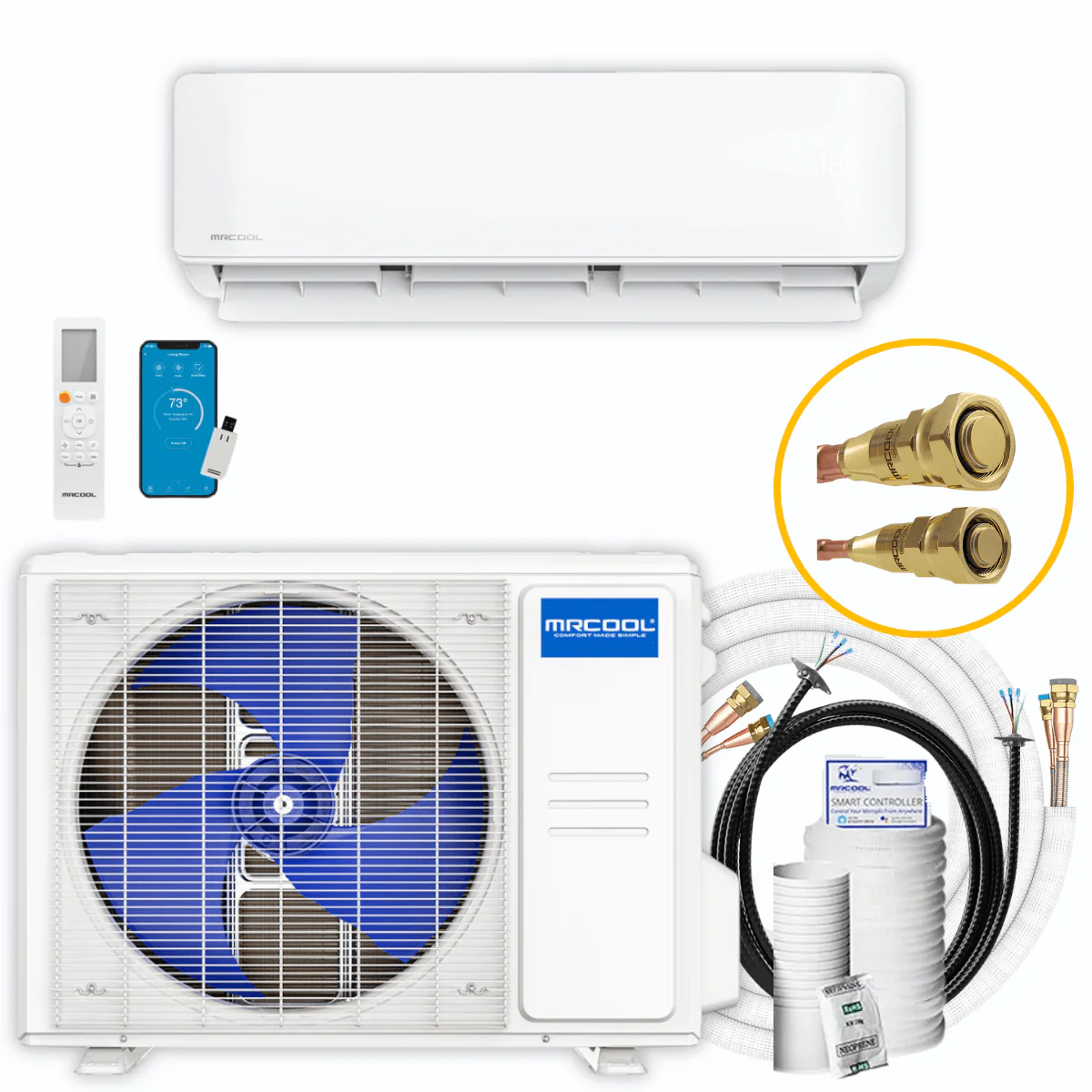

MRCOOL DIY 4th Generation Energy Star 36K BTU 3 Ton Ductless Mini Split Heat Pump Complete System DIY-36-HP-WM-230C25

This product is no longer available, Our sales professionals can help you in finding something similar that matches your style, space, and budget. Feel free to contact us today at +1-800-583-0045 or email us at [email protected]

The MRCOOL DIY 4th Generation Energy Star 36K BTU 3 Ton Ductless Mini Split Heat Pump DIY-36-HP-WM-230C25 offers powerful and efficient climate control with its 36K BTU capacity, making it perfect for larger spaces. Its DIY installation feature simplifies setup and cuts labor costs, while its Energy Star rating ensures high energy efficiency, reducing utility bills. This system provides reliable heating and cooling, making it a top choice for homeowners seeking effective climate management and cost savings.

Features:

• Up to 18.5 SEER2
• Gold Fin® condenser: corrosion-resistant coastal living - don't worry, our condenser is built to resist long-term corrosion
• Variable-speed DC inverter compressor technology cuts operating costs
• R-410A environmentally friendly refrigerant
• Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

Manuals

Manuals:

• Installation Manual

• Product Brochure

• Performance Specifications

• Service Manual

• Remote Control

• Warranty
• Energy Guide

• AHRI Certificate

Specifications

Specifications:

Condenser Dimensions	37.24"W x 16.14"D x 31.89"H
Condenser Weight	147.27 lbs
Air Handler Dimensions	49.57"W x 11.10"D x 14.25"H
Air Handler Weight	47.84 lbs
SEER2	18.30
EER2	8.7
SEER	18
EER	8.7
COP 47	2.81
HSPF	hspf4/hspf5 : 12/9
HSPF2	8
CFM	673.53/502.94/367.65
Tonnage	3
Cooling Capacity	36,000 BTU
Heating Capacity	36,000 BTU
Voltage	Requires a minimum of 208-230V/60HZ/28-35A (please check your home meets this electrical requirement prior to purchase)
Phase	1
Cycle	60 Hz
Max Fuse Breaker	35 A
Min Circuit Ampacity	28 A
Color	White
Rate Load	0.50 A
Max Coverage Area	Up to 1,500 sqft
Zone Capacity	1
Refrigerant Type	R-410A
Refrigerant Volume	111.1 oz
Decibel Rating	52/45/34
Decibel Rating Low	34 dBA
Decibel Rating High	52 dBA
Oscillation	4-W
Inverter	Yes
Min Ambient Cool	5F - 122F
Min Ambient Heat	5F - 75F
Line Set Length	25ft
Max Lineset Length	98.42 ft
Liquid Line Size	3/8 in
Suction Line Size	5/8 in
Compressor Motor Type	Rotary
Condenser Fan Motor RPM	950/250
Blower Motor RPM	1200/950/750
Auxiliary Heater Available	No
Modes	Fan Only Quiet Mode Auto Cool
Wifi Compatibility	Yes
App Compatibility	Yes
Compatible with	IOS Android
Includes	Remote Batteries
Certifications	UL Listed Energy Star AHRI
Registered Warranty	7 Years Replacement on Condenser, 5 Years Parts
Restricted States	GU;PR;VI
