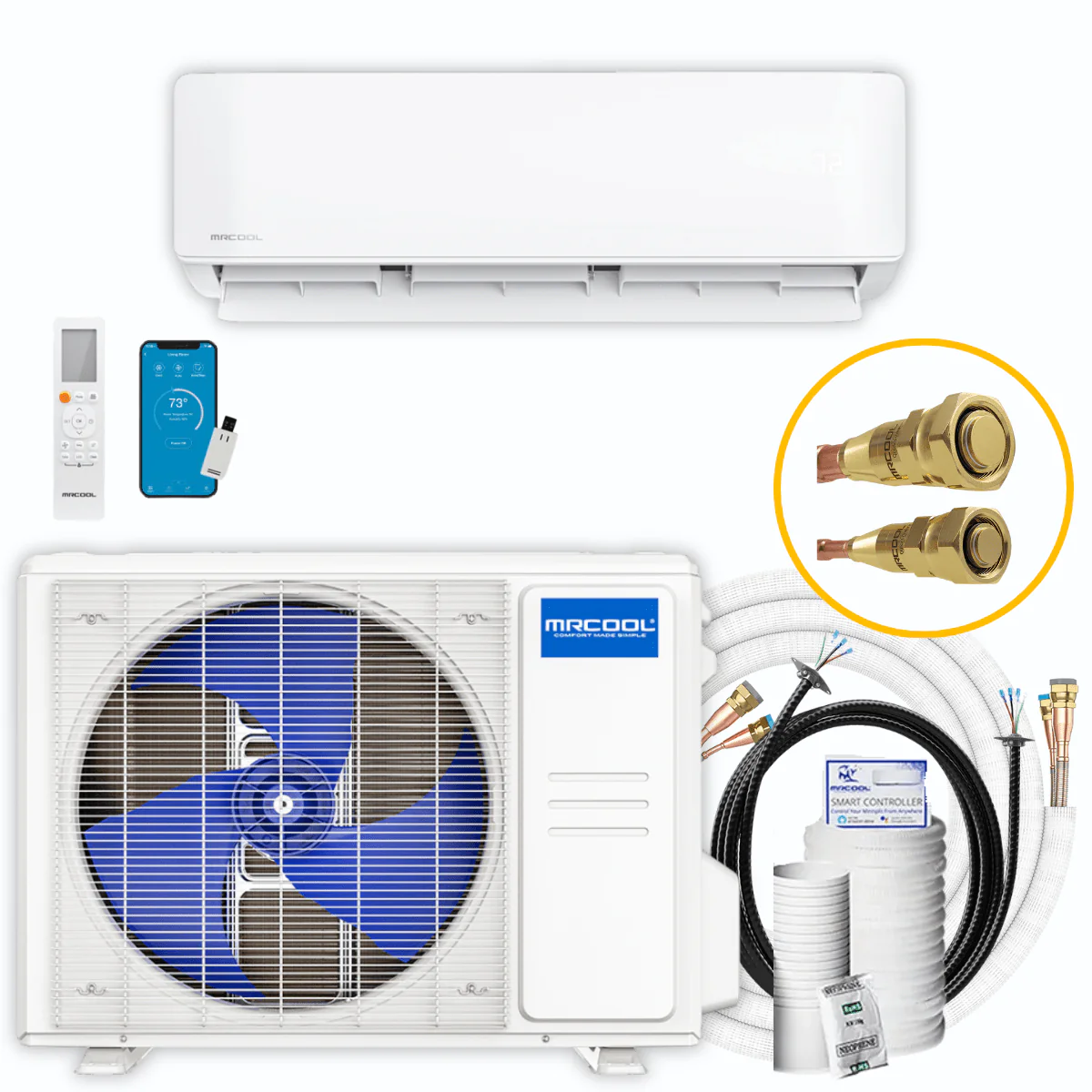

MRCOOL DIY 4th Generation Energy Star 24K BTU 2 Ductless Mini Split Heat Pump Complete System DIY-24-HP-WM-230C25

This product is no longer available, Our sales professionals can help you in finding something similar that matches your style, space, and budget. Feel free to contact us today at +1-800-583-0045 or email us at [email protected]

The MRCOOL DIY 4th Gen E STAR 24K BTU 2 Ductless Mini Split Heat Pump DIY-24-HP-WM-230C25 is ideal for larger spaces, offering effective heating and cooling with its 24K BTU capacity. Its dual ductless design ensures flexibility and efficiency in climate control. The easy DIY installation saves on professional labor costs, while its high SEER rating delivers superior energy efficiency, reducing utility bills and providing a cost-effective solution for maintaining a comfortable environment in larger areas.

Features:

• Up to 20.5 SEER2
• Gold Fin® condenser: corrosion-resistant coastal living - don't worry, our condenser is built to resist long-term corrosion
• Variable-speed DC inverter compressor technology cuts operating costs
• R-410A environmentally friendly refrigerant
• Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

Manuals

Manuals:

• Installation Manual

• Product Brochure

• Performance Specifications

• Service Manual

• Remote Control

• Warranty
• Energy Guide

• AHRI Certificate

Specifications

Specifications:

Condenser Dimensions	37.24"W x 16.14"D x 31.89"H
Condenser Weight	125.22 lbs
Air Handler Dimensions	42.52"W x 8.90"D x 13.19"H
Air Handler Weight	35.27
SEER2	20.50
EER2	12.50
SEER	20.5
EER	12.5
COP 47	3.15
HSPF	hspf4/hspf5 : 10.5/9
HSPF2	9.20
CFM	605.88/505.88/364.71
Tonnage	2
Cooling Capacity	23,000BTU
Heating Capacity	25,000 BTU
Voltage	Requires a minimum of 208-230V/60HZ/22-35A (please check your home meets this electrical requirement prior to purchase)
Phase	1
Cycle	60 Hz
Max Fuse Breaker	35 A
Min Circuit Ampacity	22 A
Color	White
Rate Load	0.45 A
Max Coverage Area	Up to 1000 sqft
Zone Capacity	1
Refrigerant Type	R-410A
Refrigerant Volume	81.13 oz
Decibel Rating	48.5/43.5/33
Decibel Rating Low	33 dBA
Decibel Rating High	48.5 dBA
Oscillation	4-W
Inverter	Yes
Min Ambient Cool	-13F - 122F
Min Ambient Heat	-13F - 75F
Line Set Length	25ft
Max Lineset Length	98.42 ft
Liquid Line Size	3/8 in
Suction Line Size	5/8 in
Compressor Motor Type	Twin-Rotary
Condenser Fan Motor RPM	850/750/700
Blower Motor RPM	1200/1000/700
Auxiliary Heater Available	No
Modes	Fan Only Quiet Mode Auto Cool
Wifi Compatibility	Yes
App Compatibility	Yes
Compatible with	IOS Android
Includes	Remote Batteries
Certifications	UL Listed Energy Star AHRI
Registered Warranty	7 Years Replacement on Condenser, 5 Years Parts
Restricted States	GU;PR;VI
