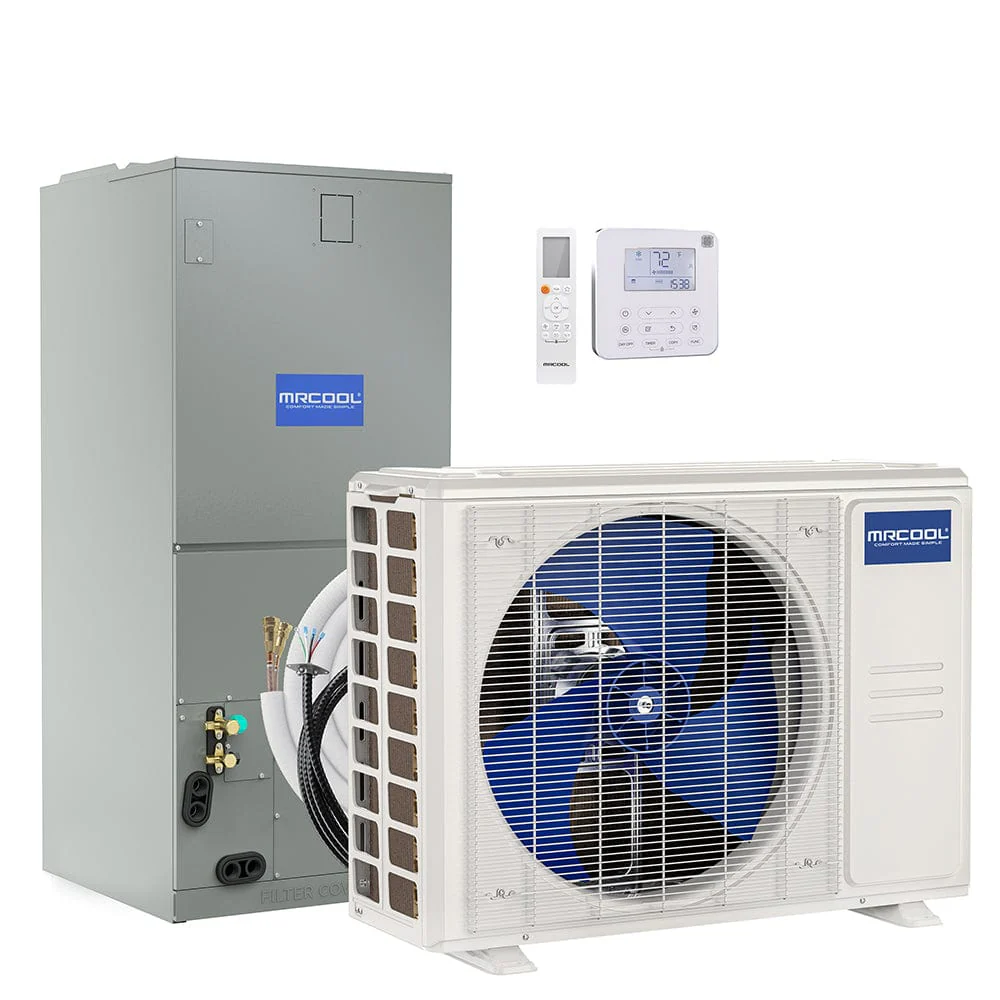

MRCOOL Central Ducted 24K BTU Complete Unitary System CENTRAL-24-HP-230-25
MRCOOL Central Ducted 24K BTU 2 Ton 19.2 SEERÂ
Complete Unitary System CENTRAL-30-HP-230-25
Why choose the MRCOOL Central Ducted 24K BTU 2 Ton 19.2 SEER Complete Unitary System CENTRAL-30-HP-230-25 for your HVAC needs?
The MRCOOL Central Ducted 24K BTU 2 Ton 19.2 SEER Complete Unitary System CENTRAL-30-HP-230-25 offers exceptional efficiency and performance with its high 19.2 SEER rating. This model provides superior cooling and heating while minimizing energy costs, making it a cost-effective solution for your home. Its complete unitary design ensures easy installation and reliable operation, delivering optimal comfort and energy savings throughout the year.
Features:

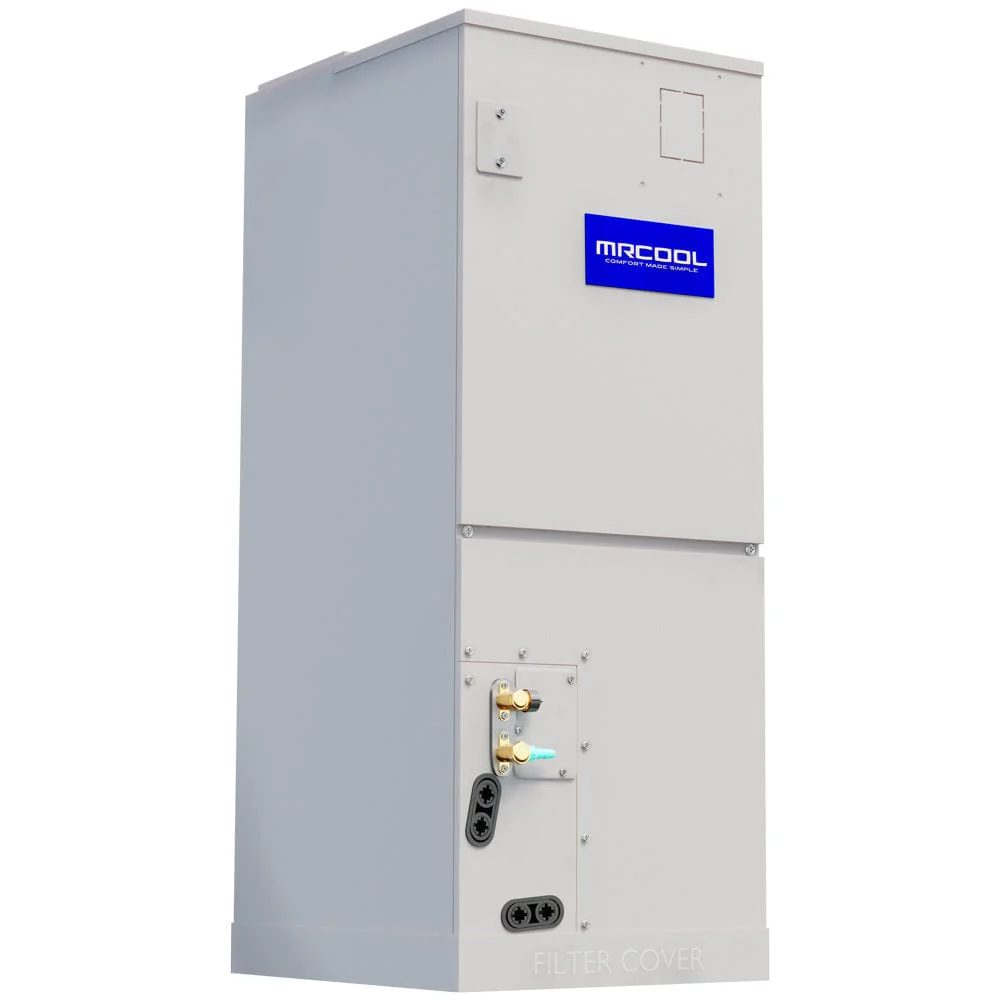

- High Static. The Central Ducted Air Handler is made to accommodate high static requirements for manufactured and modular homes.
-
Multi-Positional. The unit is compatible with upflow, counterflow, downflow and horizontal configurations.
- Thermostat and Remote Included. Wired thermostat (.78 in x 4.72 in x 4.72in) has a variety of options to keep your home the temperature you want!
- Follow Me Function. The Central Ducted Unit will track the air temperature around you using the remote to ensure you receive maximum comfort.
- 10 year parts and labor warranty. This system comes with a Standard 10-year parts and labor warranty and 10-year compressor warranty.
- Optional heating kit available
- R-410A environmentally friendly refrigerant
Manuals
Manuals:
Specifications
Specifications:
| Condenser Dimensions | 37.24"W x 16.14"D x 31.89"H |
| Condenser Weight | 125.22 lbs |
| Air Handler Dimensions | 21.02"W x 17.52"D x 45"H |
| Air Handler Weight | 106.48 lbs |
| SEER | 19.2 |
| EER | 12.5 |
| HSPF | hspf4/hspf5: 10/8.5 |
| CFM | 752.94/682.35/611.76 |
| Cooling Capacity | 24,000 BTU |
| Heating Capacity | 24,000 BTU |
| Voltage | Requires a minimum of 208-230V/60HZ/35A (please check your home meets this electrical requirement prior to purchase) |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker | 35 |
| Min Circuit Ampacity | 22 |
| Color | Gray |
| Rate Load | 0.6 |
| Zone Capacity | 1 |
| Coverage Area | 1,000 square feet |
| Refrigerant Type | R410A |
| Refrigerant Volume | 81.13 oz |
| Decibel Rating | 43.0/41.5/38.0 |
| Decibel Rating Low | 38 |
| Decibel Rating High | 43 |
| Air Flow Direction | Multi-position |
| Min Ambient Cool | -13F~122F |
| Min Ambient Heat | -13~75.2F |
| Lineset Included | Yes |
| Lineset Length | 25ft |
| Liquid Line Size | 3/8 in |
| Suction Line Size | 5/8in |
| Compressor Motor Type | Twin-Rotary |
| Condenser Fan Motor RPM | 850/750/700 |
| Filter Type | Replaceable |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | Yes |
| Auxiliary Heater Sizes | 5kw, 8kw,10kw, 15kw |
| Adjustable Thermostat | Yes |
| Modes | Fan Sleep Auto Cool |
| Includes | Remote Battery |
| App Compatibility | No |
| Certificates | AHRI |
| Warranty | 10 years parts and labor |
Â
MRCOOL Central Ducted 24K BTU 2 Ton 19.2 SEERÂ
Complete Unitary System CENTRAL-30-HP-230-25
Why choose the MRCOOL Central Ducted 24K BTU 2 Ton 19.2 SEER Complete Unitary System CENTRAL-30-HP-230-25 for your HVAC needs?
The MRCOOL Central Ducted 24K BTU 2 Ton 19.2 SEER Complete Unitary System CENTRAL-30-HP-230-25 offers exceptional efficiency and performance with its high 19.2 SEER rating. This model provides superior cooling and heating while minimizing energy costs, making it a cost-effective solution for your home. Its complete unitary design ensures easy installation and reliable operation, delivering optimal comfort and energy savings throughout the year.
Features:
- High Static. The Central Ducted Air Handler is made to accommodate high static requirements for manufactured and modular homes.
-
Multi-Positional. The unit is compatible with upflow, counterflow, downflow and horizontal configurations.
- Thermostat and Remote Included. Wired thermostat (.78 in x 4.72 in x 4.72in) has a variety of options to keep your home the temperature you want!
- Follow Me Function. The Central Ducted Unit will track the air temperature around you using the remote to ensure you receive maximum comfort.
- 10 year parts and labor warranty. This system comes with a Standard 10-year parts and labor warranty and 10-year compressor warranty.
- Optional heating kit available
- R-410A environmentally friendly refrigerant
Manuals
Manuals:
Specifications
Specifications:
| Condenser Dimensions | 37.24"W x 16.14"D x 31.89"H |
| Condenser Weight | 125.22 lbs |
| Air Handler Dimensions | 21.02"W x 17.52"D x 45"H |
| Air Handler Weight | 106.48 lbs |
| SEER | 19.2 |
| EER | 12.5 |
| HSPF | hspf4/hspf5: 10/8.5 |
| CFM | 752.94/682.35/611.76 |
| Cooling Capacity | 24,000 BTU |
| Heating Capacity | 24,000 BTU |
| Voltage | Requires a minimum of 208-230V/60HZ/35A (please check your home meets this electrical requirement prior to purchase) |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker | 35 |
| Min Circuit Ampacity | 22 |
| Color | Gray |
| Rate Load | 0.6 |
| Zone Capacity | 1 |
| Coverage Area | 1,000 square feet |
| Refrigerant Type | R410A |
| Refrigerant Volume | 81.13 oz |
| Decibel Rating | 43.0/41.5/38.0 |
| Decibel Rating Low | 38 |
| Decibel Rating High | 43 |
| Air Flow Direction | Multi-position |
| Min Ambient Cool | -13F~122F |
| Min Ambient Heat | -13~75.2F |
| Lineset Included | Yes |
| Lineset Length | 25ft |
| Liquid Line Size | 3/8 in |
| Suction Line Size | 5/8in |
| Compressor Motor Type | Twin-Rotary |
| Condenser Fan Motor RPM | 850/750/700 |
| Filter Type | Replaceable |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | Yes |
| Auxiliary Heater Sizes | 5kw, 8kw,10kw, 15kw |
| Adjustable Thermostat | Yes |
| Modes | Fan Sleep Auto Cool |
| Includes | Remote Battery |
| App Compatibility | No |
| Certificates | AHRI |
| Warranty | 10 years parts and labor |
Â
$1,307.69
Original: $4,358.96
-70%MRCOOL Central Ducted 24K BTU Complete Unitary System CENTRAL-24-HP-230-25â
$4,358.96
$1,307.69Description
MRCOOL Central Ducted 24K BTU 2 Ton 19.2 SEERÂ
Complete Unitary System CENTRAL-30-HP-230-25
Why choose the MRCOOL Central Ducted 24K BTU 2 Ton 19.2 SEER Complete Unitary System CENTRAL-30-HP-230-25 for your HVAC needs?
The MRCOOL Central Ducted 24K BTU 2 Ton 19.2 SEER Complete Unitary System CENTRAL-30-HP-230-25 offers exceptional efficiency and performance with its high 19.2 SEER rating. This model provides superior cooling and heating while minimizing energy costs, making it a cost-effective solution for your home. Its complete unitary design ensures easy installation and reliable operation, delivering optimal comfort and energy savings throughout the year.
Features:
- High Static. The Central Ducted Air Handler is made to accommodate high static requirements for manufactured and modular homes.
-
Multi-Positional. The unit is compatible with upflow, counterflow, downflow and horizontal configurations.
- Thermostat and Remote Included. Wired thermostat (.78 in x 4.72 in x 4.72in) has a variety of options to keep your home the temperature you want!
- Follow Me Function. The Central Ducted Unit will track the air temperature around you using the remote to ensure you receive maximum comfort.
- 10 year parts and labor warranty. This system comes with a Standard 10-year parts and labor warranty and 10-year compressor warranty.
- Optional heating kit available
- R-410A environmentally friendly refrigerant
Manuals
Manuals:
Specifications
Specifications:
| Condenser Dimensions | 37.24"W x 16.14"D x 31.89"H |
| Condenser Weight | 125.22 lbs |
| Air Handler Dimensions | 21.02"W x 17.52"D x 45"H |
| Air Handler Weight | 106.48 lbs |
| SEER | 19.2 |
| EER | 12.5 |
| HSPF | hspf4/hspf5: 10/8.5 |
| CFM | 752.94/682.35/611.76 |
| Cooling Capacity | 24,000 BTU |
| Heating Capacity | 24,000 BTU |
| Voltage | Requires a minimum of 208-230V/60HZ/35A (please check your home meets this electrical requirement prior to purchase) |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker | 35 |
| Min Circuit Ampacity | 22 |
| Color | Gray |
| Rate Load | 0.6 |
| Zone Capacity | 1 |
| Coverage Area | 1,000 square feet |
| Refrigerant Type | R410A |
| Refrigerant Volume | 81.13 oz |
| Decibel Rating | 43.0/41.5/38.0 |
| Decibel Rating Low | 38 |
| Decibel Rating High | 43 |
| Air Flow Direction | Multi-position |
| Min Ambient Cool | -13F~122F |
| Min Ambient Heat | -13~75.2F |
| Lineset Included | Yes |
| Lineset Length | 25ft |
| Liquid Line Size | 3/8 in |
| Suction Line Size | 5/8in |
| Compressor Motor Type | Twin-Rotary |
| Condenser Fan Motor RPM | 850/750/700 |
| Filter Type | Replaceable |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | Yes |
| Auxiliary Heater Sizes | 5kw, 8kw,10kw, 15kw |
| Adjustable Thermostat | Yes |
| Modes | Fan Sleep Auto Cool |
| Includes | Remote Battery |
| App Compatibility | No |
| Certificates | AHRI |
| Warranty | 10 years parts and labor |
Â
