WhisperKOOL Phantom 3500 Fully Ducted Self-Contained System
WhisperKOOL Phantom 3500 Fully Ducted Self-Contained System Review
Looking for a powerful wine cooler unit with flexible installation options? WhisperKOOL Phantom 3500 Fully Ducted Self-Contained System might be the one for you!
NOTE: A qualified HVAC-R technician is required for the installation of your WhisperKOOL Phantom 3500. Failure to adhere to this requirement will void the warranty.

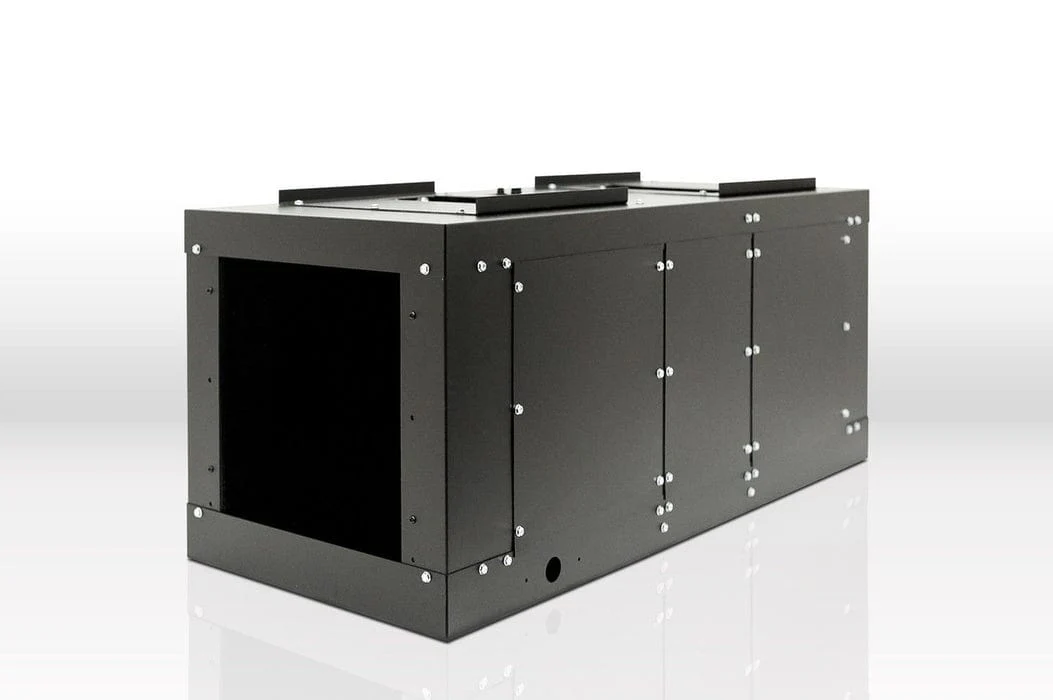

The WhisperKOOL Phantom 3500 Fully Ducted Self-Contained Wine Cellar Cooling System offers strong cooling performance and versatile installation options. It's ideal for those with limited cellar space and requires a fully ducted unit.
The Phantom Series of WhisperKOOL Wine Cellar Cooling Units come with a range of features to ensure optimal performance and ease of use. Additionally, the Phantom offers numerous ducting options and the powerful blowers can be directed to the right, left, or top, allowing you to customize the unit to fit your specific needs.
One of the most noteworthy features is the optional add-on of a UV-C Lighting System, which helps protect the unit from mold and other microorganisms. This WhisperKOOL Wine Cooling Unit also comes with a WhisperKOOL thermostat/Remote KDT Plus controller, which allows you to easily monitor and adjust the temperature from a distance. Another great feature is the corrosion-resistant drip tray, which makes cleaning and maintenance a breeze. The units are also designed with a sleek black powder-coated paint scheme and are suitable for operation in ambient temperatures as high as 110°F.
Other sizes: WhisperKOOL Phantom 5000 for 1250 cu.ft. wine cellar & WhisperKOOL Phantom 8000 for 2000 cu.ft wine cellar.
Advantages of WhisperKOOL Fully Ducted Systems
WhisperKOOL Fully Ducted Wine Cooling Systems are one of the quietest wine cellar cooling units. Designed to keep your wine at the perfect temperature while minimizing noise levels in the cellar. These systems are installed in a location that is out of sight such as an attic or a utility room that is adjacent to the wine room. Operating quietly and efficiently without disrupting the ambiance of the wine cellar.
You can browse our other Fully Ducted – Self Contained Wine Cellar Systems. Want to check your options? Check out other WhisperKOOL Wine Cellar Cooling Systems.
Looking for modern wine racks for your cellar? Discover the best wine racks at Ultra Wine Racks & Cellars!
WHY BUY FROM US: Luxury Appliances Direct is a trusted dealer of specialty wine cellar air conditioners, commercial wine cellar refrigeration units, and residential wine cellar coolers. More WhisperKOOL wine cellar cooling unit reviews can be found on our Customer Reviews page.
Contact us for any questions or concerns. For information on order processing, shipping options, and delivery times, please visit our Shipping Policy.
Buy WhisperKOOL Phantom 3500 Fully Ducted Self-Contained System today and enjoy your amazing wines at their best temperature!
Features
Features:
-
TOUCH DISPLAY
The KDT Digital Touch Display can be placed as far as 50 feet from the unit and features Advanced System Protection including alarm notifications for when certain conditions are not met.
-
BOTTLE PROBE
WhisperKOOL cooling units precisely measure the temperature of the wine in the cellar with the WhisperKOOL Bottle Probe. This liquid temperature measuring probe gives a more accurate reading of the temperature of the wines stored in the cellar as compared to measuring the air temperature.
-
COMPONENTS PANEL
WhisperKOOL bottle probe port and fan switch can be accessed from the top of the unit. Powered by a standard electrical outlet.
-
FLEXIBLE INSTALLATION
You can adjust the direction of its powerful blowers to the right, left, or top of the unit. This gives you installation flexibility, and you can choose the ducting configuration that works best for your space, even when it's limited. The supply collar is 8″ and the return is 10″.
-
AIR PURIFICATION SYSTEM
WhisperKOOL cooling units are protected from mold and bacterial growth by adding UV-C Light Technology. This will improve the quality of the air within the cellar.
Manuals
Manuals:
Please click below to read and download the system manual for this cooling system.
Please click below to view all product specifications for the WhisperKOOL Phantom Series.
A limited 2-year product/5-year compressor warranty is offered with all self-contained cooling units at the date of purchase.
New and advanced 24-volt thermostat conversion kit for WhisperKOOL split systems!
Need assistance? Talk to an Expert at +1 (800) 583-0045 or email: [email protected] to get the best-suited wine cooling system for your needs.
Specifications
Specifications:
- Model: Phantom 3500
-
Cellar Size: Approx. 800 cu.ft. when wine cellar is fully insulated and sealed with a proper vapor barrier
- CFM: 326 with blowers in top orientation | 312 with blowers in a side orientation
- BTU/h (85°F condenser air intake temperature: 4060
- Dimensions (L x W x H): 37" x 15.75" x 15.75" (without duct plenums) | 48" x 15.75" x 22.75" (duct plenums on top of unit), 48" x 22.75" x 15.75" (duct plenums on side of unit)
- Refrigerant: R-134a
- Refrigeration Tons: 0.33
- Weight (lbs): 115
- HP: 1/4
- Voltage Rating: 115V (20 amp dedicated circuit required)
- Amps: 6 (running amps)
- Drain line: 1/2" ID clear plastic tubing (NOT PROVIDED)
- Installation: Can be installed up to 25 duct feet away from the cellar
- Thermostat: Advanced digital display (50-ft. cable), liquid-temperature-measuring bottle probe (50-ft. cable)
- Temp. Delta: Can maintain a 55°F cellar temperature with up to 110°F condenser air intake temperature
- WhisperKOOL Warranty: Two-year limited warranty (parts and labor) | Five-year limited warranty (compressor)
*NOTE: A wine cellar cooling unit works best in a well-insulated and sealed room with a proper vapor barrier. Every wine cellar is different and has its own cooling needs. It's important to perform heat load calculations before choosing a cooling system for wine cellars.
BTU/h
BTU/h
4060
The BTU/h value range shown here is an estimate and not a guarantee. There may be instances where a cellar design requires a larger unit due to variables not included in the calculation. These variables can be building materials (such as glass, stone, concrete, etc.) that do not provide enough insulation to maintain the ideal wine cellar environment.
We recommend purchasing a unit with a higher capacity to compensate for these unforeseen variables. Choosing an undersized unit may result in premature failure and may not be able to achieve your desired wine cellar temperature.
Product Video
GET TO KNOW Phantom 3500 Fully Ducted Self-Contained WINE CELLAR COOLING SYSTEM
"My wine cellar room is higher than 800 cu.ft. What wine cooling system can accommodate a bigger wine cellar room?"
Click here: 👉Phantom 5000 for 1250 cu.ft. wine cellar👈
24V THERMOSTAT CONVERSION KIT (OPTIONAL)
24V THERMOSTAT CONVERSION KIT (OPTIONAL)
Introducing our new 24-volt thermostat conversion kit for WhisperKOOL split systems! Utilize industry-leading technology from major manufacturers to monitor the environment of your cellar.
- Connect your thermostat to Wi‑Fi to control the temperature from your phone, tablet, or laptop.
- Monitor run time and energy usage.
- Set alarm notifications.
- View your cellar conditions from your mobile device.
*PLEASE NOTE: WhisperKOOL does not provide smart thermostats. If you choose the 24V Thermostat Conversion Kit, you acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will need to purchase your own 24V smart thermostat to operate the equipment. The WhisperKOOL Customer Satisfaction Team will not provide support for issues related to smart thermostats.
For more information, check out 24V Thermostat Conversion Kit.
WhisperKOOL Accessories
WhisperKOOL Accessories (Optional)
You may add WhisperKOOL replacement parts and accessories to enhance the performance and longevity of your wine cooling systems. These add-ons include items that upgrade and protect the system. Check out the other WhisperKOOL Parts & Accessories.

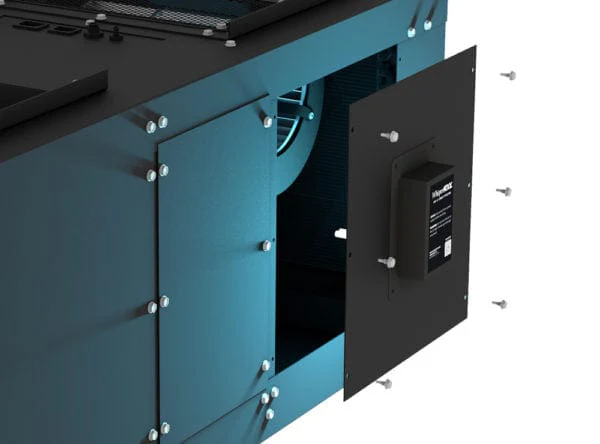

UV-C Light Technology
Adding UV-C Light Technology to WhisperKOOL wine cellar coolers enhances the overall indoor air quality inside the wine cellar and improves the system's performance. The UV-C light bulb inside the cooling system will protect it from mold and bacterial growth, extending the lifespan of the unit.
