Secure and Compliant 24-Inch Upright Pharmaceutical Freezer for Vaccine and Medication Storage

Need a reliable upright freezer that ensures CDC-compliant vaccine storage between –30°C and –10°C?

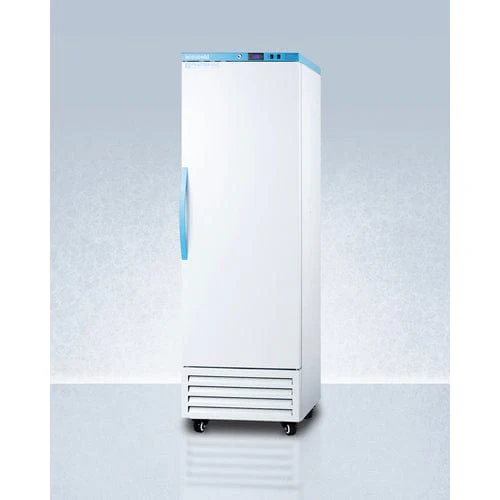

The Accucold AFS17PV is a professional-grade 24-inch upright freezer designed to meet the demanding needs of vaccine and pharmaceutical storage. This frost-free unit offers a microprocessor temperature controller with a buffered probe, visual and audible alarms, six adjustable shelves, a factory-installed lock, and an antimicrobial handle. With hospital-grade power and eco-friendly design, it's ideal for clinics, pharmacies, and laboratories.

Why Choose Summit?

Summit and Accucold provide dependable medical refrigeration designed for healthcare, offering precise control, advanced safety features, and CDC-compliant performance.

Key Features

• Application Description: Full-sized frost-free freezer designed for medical and life science storage
• Performance Series Freezer: Purpose-built all-freezer for vaccine storage in medical, pharmaceutical, and life science applications
• Purpose-Built Design: Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC/VFA guidelines
• Spacious Capacity: Over 14.5 cu. ft. of storage inside
• Frost-Free Operation: No-frost operation for minimal user maintenance
• +/-1ºC Variation: The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24-hour test period

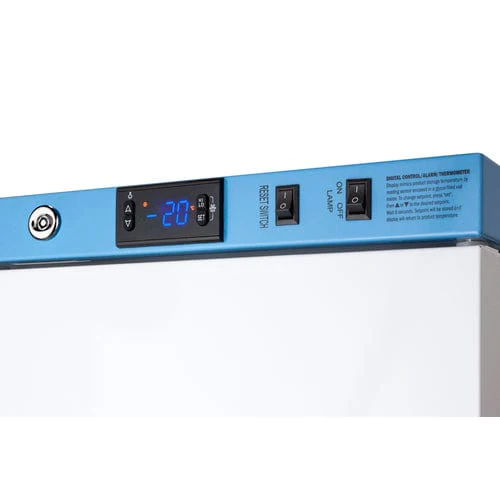

• Microprocessor Control Panel: Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management
• Adjustable Temperature: Intuitive controls let you adjust the interior temperature between -30°C to -10ºC
• High/Low Temperature Alarm: Visual and audible alarms alert if the interior temperature rises or falls out of set range
• Remote Alarm Contacts: Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)

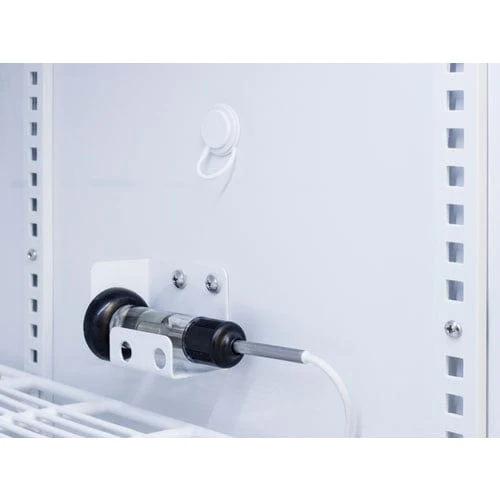

• Buffered Temperature Probe: Thermometer probe is encased in a glass bead-filled bottle to better simulate temperature readings closest to stored contents
• Open Door Alarm: Alarm will sound if the door is left ajar for over 4 minutes (adjustable from 1–99 minutes)
• Audible Power Failure Alarm: Battery-powered alarm sounds if the power connection is interrupted
• Sensor Failure Alarm: Audible and visual alarm warns if the sensor is disrupted
• Access Port: Includes a pre-installed 1/2" probe hole in the right interior wall to allow easier connection to user-provided monitoring equipment
• Password Protection: Control panel requires password entry to adjust the parameters beyond the set point
• Resettable Min/Max Display: Control panel provides a readout of the low and high temperatures in 15-minute increments
• Interior Light: Energy-efficient LED lighting with internal on/off switch
• Durable Interior: Walls are constructed from white powder-coated metal for added strength and improved temperature retention

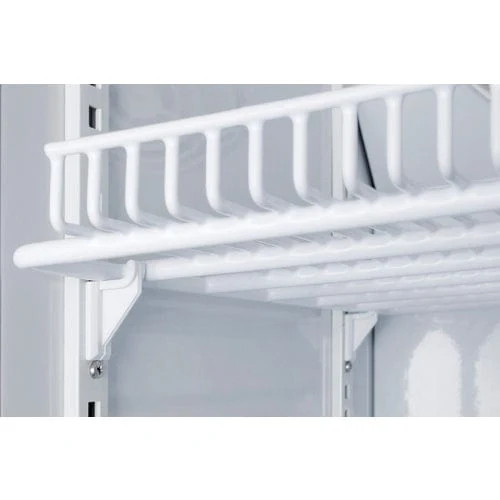

• Adjustable Plastic-Coated Wire Shelves: Six shelves can be positioned with a front lip for small storage items or reversed to a flat position to better hold larger items, with multiple shelf positions spaced at 1/2" to accommodate virtually any size
• Flat Door Liner: No door storage to allow for the interior to accommodate deeper trays
• Self-Closing Door: Added protection in busy settings
• Reversible Door: User-reversible door swing for added flexibility to best accommodate your setting
• Magnetic Door Gasket: Quality door gaskets ensure a tight seal for energy savings and improved performance
• Factory-Installed Lock: Conveniently located towards the top of the door for easier user access (2 keys included)
• Antimicrobial Silver Ion-Coated Handle: Powder-coated handle with naturally occurring silver ions to help reduce the spread of germs
• Hospital Grade Cord: Includes a secure three-pronged 'green dot' plug for added unit safety
• Extended Warranty: 2 years parts and labor / 5 years compressor
• Versatile Design: Compatible with Pyxis®, Omnicell®, and AcuDose RX®
• 100% CFC Free: Environmentally friendly design without ozone-damaging chemicals
• CARB Compliant: Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Manuals for Summit 14.83 Cu. Ft. Upright Vaccine All-Freezer

• Owner's Manual
• Specs Sheet
• Brochure

Specifications for Summit 14.83 Cu. Ft. Upright Vaccine All-Freezer AFS17PV

Overview

• Nominal Height: 80.0" (203 cm)
• Height of Cabinet: 79.5" (202 cm)
• Nominal Width: 28.0" (71 cm)
• Width: 27.5" (70 cm)
• Width with Door Open: 27.75" (70 cm)
• Nominal Depth: 27.0" (69 cm)
• Depth: 26.63" (68 cm)
• Depth with Handle: 28.13" (71 cm)
• Depth with Door at 90°: 54.75" (139 cm)
• Capacity: 14.83 cu. ft. (420 L)
• Defrost Type: Frost-Free
• Door Finish: White
• Cabinet Finish: White
• US Electrical Safety: ETL
• Canadian Electrical Safety: ETL-C
• Amps: 4.3
• Voltage/Frequency: 115 V AC / 60 Hz
• Weight: 245.0 lbs. (111 kg)

Freezer

• Door Swing: RHD
• Reversible: Yes
• Interior Height: 49.0" (124 cm)
• Interior Width: 19.25" (49 cm)
• Interior Depth: 18.0" (46 cm)
• Shelf Type: Wire
• Shelf Quantity: 6
• Adjustable Shelves: Yes
• Thermostat Type: Digital
• Interior Light: Yes
• Fan Type: Interior
• Refrigerant Type: R290a
• Refrigerant Amount: 3.27 oz.
• High Side PSI: 280.0
• Low Side PSI: 130.0
• Wheels: 4
• Compressor Step Height: 10.0" (25 cm)
• Compressor Step Width: 19.25" (49 cm)
• Compressor Step Depth: 16.0" (41 cm)
• Temperature Range: -30 to -10ºC
