High-Capacity, Fully Ducted Cooling for Large Luxury Wine Cellars

The Panthaire APEX 7000 Wine Cellar Cooling System is a professional-grade, fully ducted cooling solution designed for large, well-insulated residential wine cellars up to 2,000 cubic feet. Built for collectors who demand quiet operation, precise temperature control, and continuous-duty reliability, the APEX 7000 delivers stable cellar conditions while keeping heat, noise, and vibration completely outside the wine room.

This system is ideal for custom-built wine cellars, showcase wine rooms, and long-term aging environments where performance and discretion are essential.

Why Choose the Panthaire APEX 7000?

Unlike compact wine refrigerators or basic through-the-wall cooling units, the APEX 7000 is engineered specifically for true cellar environments—spaces designed for aging wine properly over time.

Key advantages include:

• High BTU output for large cellar volumes
• Fully ducted installation for flexible, hidden placement
• Quiet, low-vibration operation to protect wine integrity
• Continuous-duty design for year-round climate stability

The result is a cooling system trusted in luxury residential projects where aesthetics, reliability, and wine preservation all matter.

Key Features & Benefits

High-Capacity Cooling Performance

With 6,346 BTU/h of cooling power, the APEX 7000 is capable of maintaining consistent cellar temperatures in large, properly insulated wine rooms—helping protect wine from heat spikes and temperature fluctuations.

Fully Ducted Remote Installation

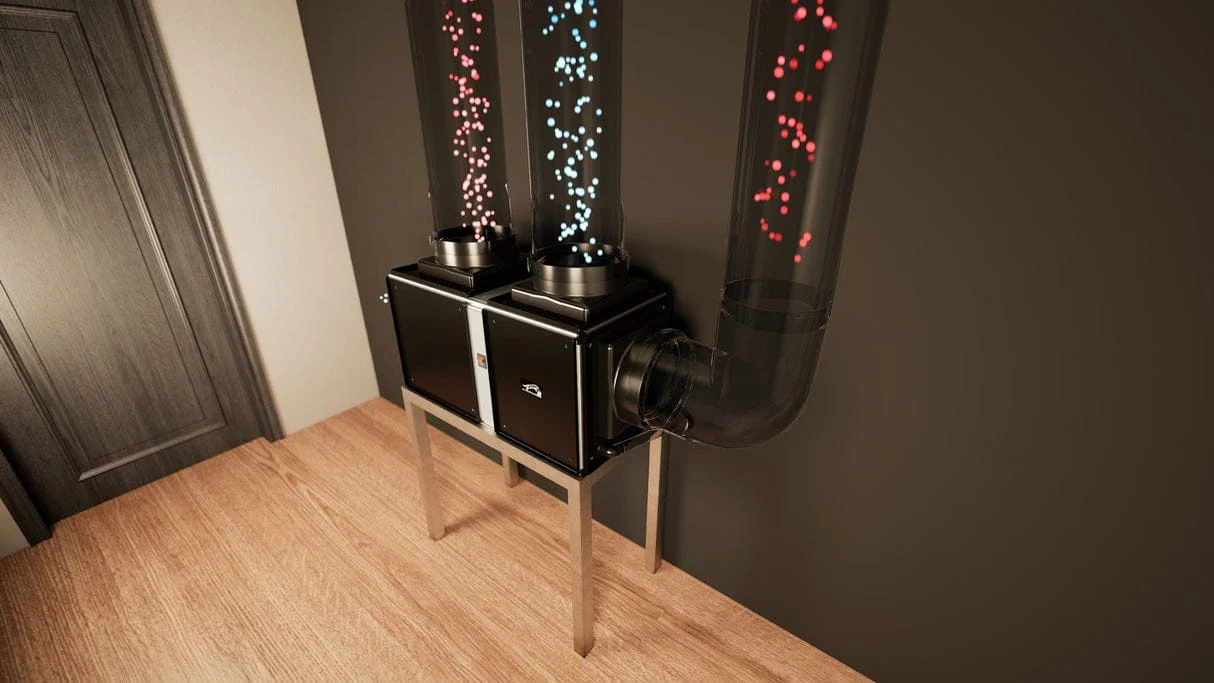

The ducted configuration allows the cooling unit to be installed outside the wine cellar, such as in a mechanical room or adjacent space. This keeps operational noise, heat, and vibration out of the cellar itself.

Quiet, Low-Vibration Operation

Designed for serious wine collectors, the APEX 7000 minimizes vibration and sound, helping preserve delicate wines while maintaining a calm, refined cellar environment.

Continuous-Duty Reliability

Built for 24/7 operation, this system is designed to run continuously without cycling stress, ensuring stable temperature control and long-term durability.

Precision Digital Temperature Control

Integrated digital controls allow for accurate temperature management, helping maintain ideal wine storage conditions with minimal fluctuation.

Flexible Installation Design

Thoughtful engineering and ducting flexibility allow installers to adapt the system to a wide range of cellar layouts and mechanical configurations.

Is the APEX 7000 Right for Your Wine Cellar?

Recommended For:

• Wine cellars up to ~2,000 cu. ft. with R-20 insulation
• Fully ducted or concealed mechanical installations
• Custom-built residential wine rooms
• Collectors storing wine for long-term aging
• Projects where quiet operation is a priority

Not Recommended For:

• Small closets or cabinet-style wine storage
• Through-the-wall installations
• Poorly insulated spaces without vapor barriers
• Wine refrigerators or under-counter applications

If your cellar size, insulation, or layout is uncertain, professional sizing assistance is strongly recommended before purchase.

Specifications for Panthaire Wine Cellar Cooling System – APEX 7000

Cooling & Electrical

• Cooling Capacity: 6,346 BTU/h
• Recommended Cellar Size: Up to 2,000 cu. ft. (with R-20 insulation)
• Refrigerant: R290
• Power Supply: 115V / 60Hz / 20A
• Current Draw: 12.8 amps

Physical Dimensions

• Unit Dimensions (L × W × D): 40.2" × 15.8" × 15.8"
• Weight: 43.5 kg (95.9 lbs)

Ducting & Airflow

• Supply Duct Size: 8"
• Return Duct Size: 10"
• Maximum Duct Length: 25 ft per duct
• Airflow – Speed 1: 470 CFM
• Airflow – Speed 2: 530 CFM

Operating Parameters

• Temperature Range: 50°F – 70°F (10°C – 25°C)*
• Drain Connection: 5/8" ID

Warranty

• Warranty Coverage: 2-year manufacturer warranty covering parts and labor

*Actual performance depends on proper installation, insulation quality, and cellar conditions.

What’s Included

• Panthaire APEX 7000 cooling unit
• Insulated cellar duct hose
• Integrated digital temperature controller
• Power cord
• User guide & installation summary sheet

Manuals for APEX 7000 Wine Cellar Cooling Systems of Panthaire

• Product Manual
• Technical Sheet
• User Guide
• Product Sheet

Installation & Planning Considerations

Proper installation is critical to system performance and longevity. The APEX 7000 requires:

• Adequate insulation and vapor barriers
• Correct duct sizing and routing
• Drain line access
• Professional installation for optimal results

Improper installation or undersized ducting can reduce efficiency and shorten system lifespan.

Expert Guidance Available

Selecting the correct wine cellar cooling system is as important as choosing the wine itself. The specialists at Luxury Appliances Direct work closely with manufacturers, builders, and designers to help ensure proper sizing, compatibility, and installation success.

If you need help evaluating your cellar or comparing cooling options, expert assistance is available before purchase.
