Panthaire Wine Cellar Cooling Systems APEX 5000
Quiet, Fully Ducted Cooling for Mid-to-Large Wine Cellars

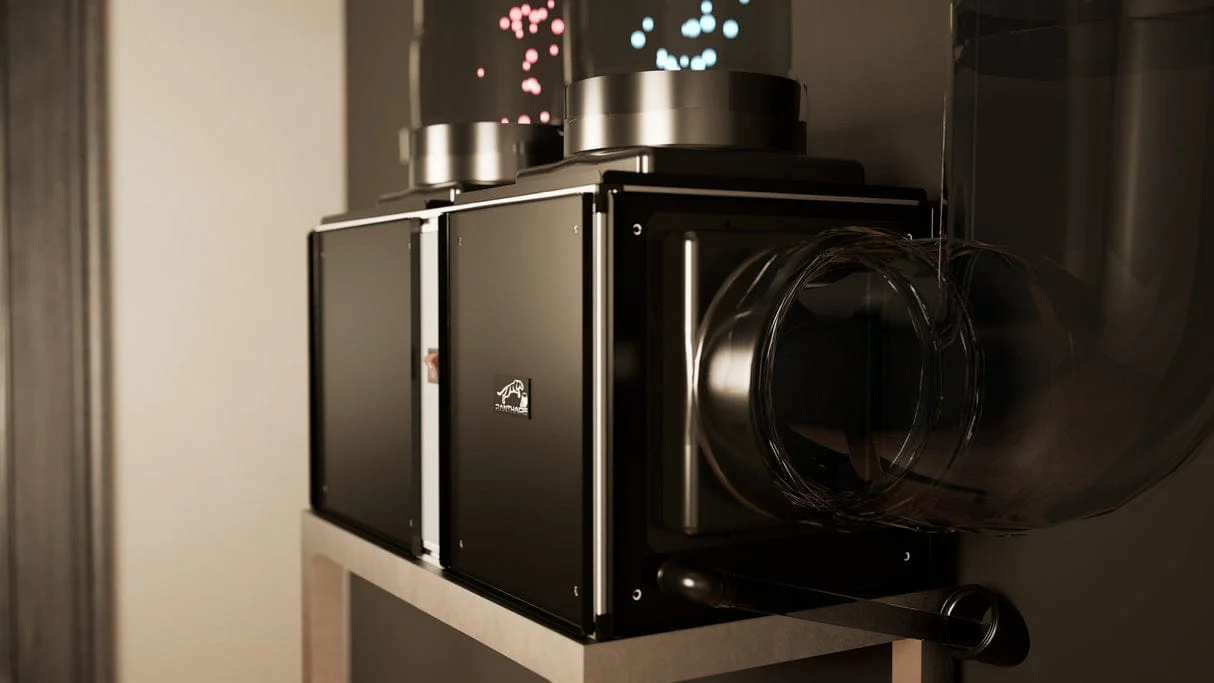

The Pantheaire APEX 5000 is a fully ducted wine cellar cooling system engineered for collectors who require quiet operation, precise temperature control, and long-term wine preservation. Designed for properly insulated wine cellars up to 1,200 cubic feet, this system delivers professional-grade performance while keeping all mechanical noise and heat outside the cellar space.
Ideal for residential wine rooms and light commercial installations, the APEX 5000 offers a refined solution for protecting valuable wine collections without compromising comfort, aesthetics, or aging integrity.
Why Choose a Fully Ducted Wine Cellar Cooling System?
Unlike self-contained cooling units that sit partially inside the cellar, the APEX 5000 uses a fully ducted, remote installation design. This allows the system to be installed in a mechanical room or adjacent space while conditioned air is delivered discreetly through insulated ducting.
Benefits of a ducted system include:
- Near-silent cellar operation
- Reduced vibration for proper wine aging
- Greater installation flexibility
- Clean, uninterrupted cellar aesthetics
For collectors prioritizing quiet performance and design flexibility, ducted cooling systems represent the highest standard in wine cellar climate control.
Who the Pantheaire APEX 5000 Is Best For
The APEX 5000 is an excellent choice for:
- Wine cellars up to 1,200 cu. ft. with R20 insulation
- Residential collectors with large or valuable wine collections
- Cellars where noise and vibration must be minimized
- Custom cellar builds with available remote mechanical space
- Projects requiring ducted airflow rather than through-wall installation
Not recommended for:
- Glass-heavy or poorly insulated rooms
- Mixed-use living spaces without professional heat-load calculations
- Cellars exceeding recommended size without additional cooling support
Key Features & Performance Benefits
Precision Cooling for Properly Insulated Cellars
With a cooling capacity of 4,462 BTU/h, the APEX 5000 is designed to maintain stable cellar temperatures in environments built specifically for wine storage.
Fully Ducted, Remote Installation
By locating the system outside the cellar, heat and operational noise are removed from the wine room, preserving both comfort and ambiance.
Low-Vibration Compressor Design
Reduced vibration helps prevent sediment disturbance, supporting proper long-term bottle aging.

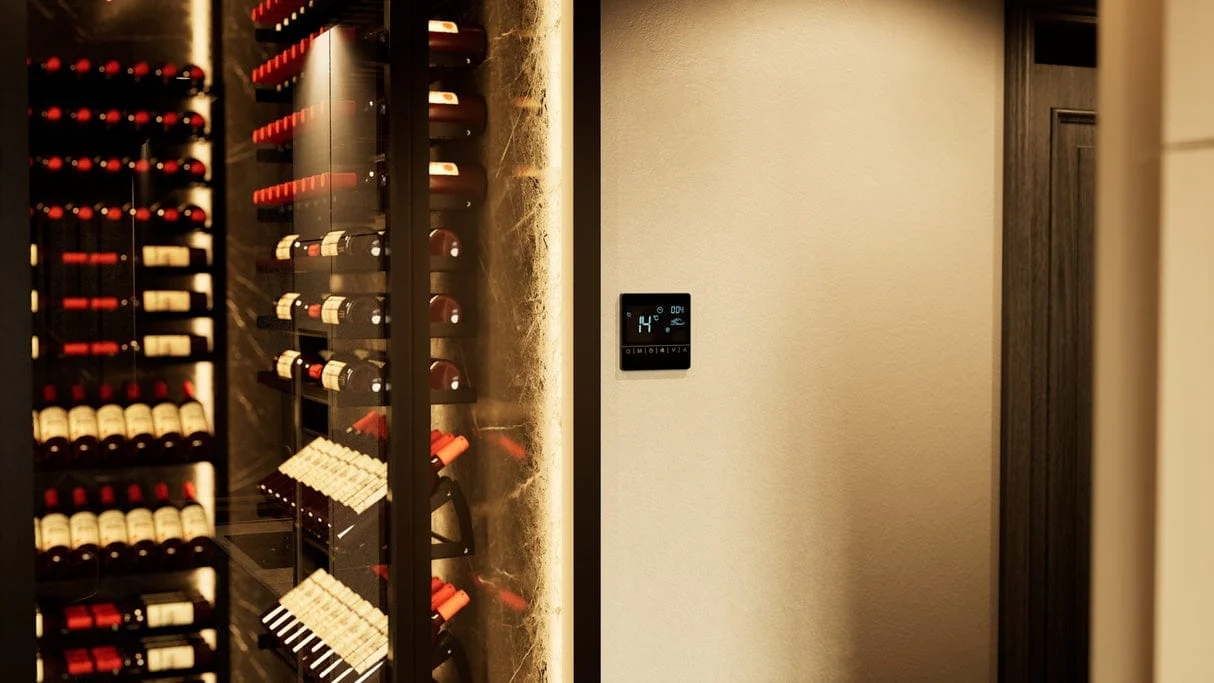

Digital Temperature Control
Maintains consistent temperatures within the ideal wine storage range, helping protect both red and white collections.
Balanced Airflow Distribution
Multiple fan speeds deliver even air circulation, minimizing hot or cold zones throughout the cellar.
Built for Long-Term Reliability
Commercial-grade components ensure dependable performance in residential and light commercial applications.
What’s Included
- Pantheaire APEX 5000 cooling unit
- Digital temperature controller
- Integrated drain connection
- Installation summary sheet
- User guide and technical documentation
Technical Specifications – Pantheaire APEX 5000
Cooling Performance
Cooling Capacity: 4,462 BTU/h
Recommended Cellar Size: Up to 1,200 cu. ft. (with R20 insulation)
Temperature Range: 50–70°F (10–25°C)
Electrical Requirements
Power Supply: 115V / 60Hz
Circuit Requirement: 15A dedicated circuit
Current Draw: 9.2 A
Airflow & Ducting
Supply Duct Size: 8"
Return Duct Size: 8"
Maximum Duct Length: 25 ft per duct run
Airflow – Speed 1: 360 CFM
Airflow – Speed 2: 420 CFM
Physical Specifications
Dimensions (L × W × D): 33.9" × 13.8" × 13.8"
Weight: 40 kg (88.2 lbs)
Additional Details
Refrigerant: R290 (eco-friendly refrigerant)
Drain Connection: 5/8" ID
Warranty
Coverage: 2-year manufacturer warranty covering parts and labor
Actual performance depends on cellar insulation quality, construction, ambient conditions, and ducting configuration.
Manuals for APEX 5000 Wine Cellar Cooling Systems of Panthaire
Installation Notes & Requirements
The Pantheaire APEX 5000 requires professional installation to ensure optimal performance and longevity.
For best results:
- Cellar walls should meet R20 insulation standards
- Insulated ducting is required to prevent condensation and thermal loss
- Adequate clearance and airflow paths must be maintained
- Drainage must be properly routed for condensate removal
Our experts are available to help confirm system sizing before purchase.
Warranty & Expert Support
The APEX 5000 is backed by a 2-year parts and labor warranty and supported by North American service technicians. Replacement parts and technical assistance are readily available to support your system throughout its service life.
Quiet, Fully Ducted Cooling for Mid-to-Large Wine Cellars
The Pantheaire APEX 5000 is a fully ducted wine cellar cooling system engineered for collectors who require quiet operation, precise temperature control, and long-term wine preservation. Designed for properly insulated wine cellars up to 1,200 cubic feet, this system delivers professional-grade performance while keeping all mechanical noise and heat outside the cellar space.
Ideal for residential wine rooms and light commercial installations, the APEX 5000 offers a refined solution for protecting valuable wine collections without compromising comfort, aesthetics, or aging integrity.
Why Choose a Fully Ducted Wine Cellar Cooling System?
Unlike self-contained cooling units that sit partially inside the cellar, the APEX 5000 uses a fully ducted, remote installation design. This allows the system to be installed in a mechanical room or adjacent space while conditioned air is delivered discreetly through insulated ducting.
Benefits of a ducted system include:
- Near-silent cellar operation
- Reduced vibration for proper wine aging
- Greater installation flexibility
- Clean, uninterrupted cellar aesthetics
For collectors prioritizing quiet performance and design flexibility, ducted cooling systems represent the highest standard in wine cellar climate control.
Who the Pantheaire APEX 5000 Is Best For
The APEX 5000 is an excellent choice for:
- Wine cellars up to 1,200 cu. ft. with R20 insulation
- Residential collectors with large or valuable wine collections
- Cellars where noise and vibration must be minimized
- Custom cellar builds with available remote mechanical space
- Projects requiring ducted airflow rather than through-wall installation
Not recommended for:
- Glass-heavy or poorly insulated rooms
- Mixed-use living spaces without professional heat-load calculations
- Cellars exceeding recommended size without additional cooling support
Key Features & Performance Benefits
Precision Cooling for Properly Insulated Cellars
With a cooling capacity of 4,462 BTU/h, the APEX 5000 is designed to maintain stable cellar temperatures in environments built specifically for wine storage.
Fully Ducted, Remote Installation
By locating the system outside the cellar, heat and operational noise are removed from the wine room, preserving both comfort and ambiance.
Low-Vibration Compressor Design
Reduced vibration helps prevent sediment disturbance, supporting proper long-term bottle aging.
Digital Temperature Control
Maintains consistent temperatures within the ideal wine storage range, helping protect both red and white collections.
Balanced Airflow Distribution
Multiple fan speeds deliver even air circulation, minimizing hot or cold zones throughout the cellar.
Built for Long-Term Reliability
Commercial-grade components ensure dependable performance in residential and light commercial applications.
What’s Included
- Pantheaire APEX 5000 cooling unit
- Digital temperature controller
- Integrated drain connection
- Installation summary sheet
- User guide and technical documentation
Technical Specifications – Pantheaire APEX 5000
Cooling Performance
Cooling Capacity: 4,462 BTU/h
Recommended Cellar Size: Up to 1,200 cu. ft. (with R20 insulation)
Temperature Range: 50–70°F (10–25°C)
Electrical Requirements
Power Supply: 115V / 60Hz
Circuit Requirement: 15A dedicated circuit
Current Draw: 9.2 A
Airflow & Ducting
Supply Duct Size: 8"
Return Duct Size: 8"
Maximum Duct Length: 25 ft per duct run
Airflow – Speed 1: 360 CFM
Airflow – Speed 2: 420 CFM
Physical Specifications
Dimensions (L × W × D): 33.9" × 13.8" × 13.8"
Weight: 40 kg (88.2 lbs)
Additional Details
Refrigerant: R290 (eco-friendly refrigerant)
Drain Connection: 5/8" ID
Warranty
Coverage: 2-year manufacturer warranty covering parts and labor
Actual performance depends on cellar insulation quality, construction, ambient conditions, and ducting configuration.
Manuals for APEX 5000 Wine Cellar Cooling Systems of Panthaire
Installation Notes & Requirements
The Pantheaire APEX 5000 requires professional installation to ensure optimal performance and longevity.
For best results:
- Cellar walls should meet R20 insulation standards
- Insulated ducting is required to prevent condensation and thermal loss
- Adequate clearance and airflow paths must be maintained
- Drainage must be properly routed for condensate removal
Our experts are available to help confirm system sizing before purchase.
Warranty & Expert Support
The APEX 5000 is backed by a 2-year parts and labor warranty and supported by North American service technicians. Replacement parts and technical assistance are readily available to support your system throughout its service life.
Original: $6,400.00
-70%$6,400.00
$1,920.00Description
Quiet, Fully Ducted Cooling for Mid-to-Large Wine Cellars
The Pantheaire APEX 5000 is a fully ducted wine cellar cooling system engineered for collectors who require quiet operation, precise temperature control, and long-term wine preservation. Designed for properly insulated wine cellars up to 1,200 cubic feet, this system delivers professional-grade performance while keeping all mechanical noise and heat outside the cellar space.
Ideal for residential wine rooms and light commercial installations, the APEX 5000 offers a refined solution for protecting valuable wine collections without compromising comfort, aesthetics, or aging integrity.
Why Choose a Fully Ducted Wine Cellar Cooling System?
Unlike self-contained cooling units that sit partially inside the cellar, the APEX 5000 uses a fully ducted, remote installation design. This allows the system to be installed in a mechanical room or adjacent space while conditioned air is delivered discreetly through insulated ducting.
Benefits of a ducted system include:
- Near-silent cellar operation
- Reduced vibration for proper wine aging
- Greater installation flexibility
- Clean, uninterrupted cellar aesthetics
For collectors prioritizing quiet performance and design flexibility, ducted cooling systems represent the highest standard in wine cellar climate control.
Who the Pantheaire APEX 5000 Is Best For
The APEX 5000 is an excellent choice for:
- Wine cellars up to 1,200 cu. ft. with R20 insulation
- Residential collectors with large or valuable wine collections
- Cellars where noise and vibration must be minimized
- Custom cellar builds with available remote mechanical space
- Projects requiring ducted airflow rather than through-wall installation
Not recommended for:
- Glass-heavy or poorly insulated rooms
- Mixed-use living spaces without professional heat-load calculations
- Cellars exceeding recommended size without additional cooling support
Key Features & Performance Benefits
Precision Cooling for Properly Insulated Cellars
With a cooling capacity of 4,462 BTU/h, the APEX 5000 is designed to maintain stable cellar temperatures in environments built specifically for wine storage.
Fully Ducted, Remote Installation
By locating the system outside the cellar, heat and operational noise are removed from the wine room, preserving both comfort and ambiance.
Low-Vibration Compressor Design
Reduced vibration helps prevent sediment disturbance, supporting proper long-term bottle aging.
Digital Temperature Control
Maintains consistent temperatures within the ideal wine storage range, helping protect both red and white collections.
Balanced Airflow Distribution
Multiple fan speeds deliver even air circulation, minimizing hot or cold zones throughout the cellar.
Built for Long-Term Reliability
Commercial-grade components ensure dependable performance in residential and light commercial applications.
What’s Included
- Pantheaire APEX 5000 cooling unit
- Digital temperature controller
- Integrated drain connection
- Installation summary sheet
- User guide and technical documentation
Technical Specifications – Pantheaire APEX 5000
Cooling Performance
Cooling Capacity: 4,462 BTU/h
Recommended Cellar Size: Up to 1,200 cu. ft. (with R20 insulation)
Temperature Range: 50–70°F (10–25°C)
Electrical Requirements
Power Supply: 115V / 60Hz
Circuit Requirement: 15A dedicated circuit
Current Draw: 9.2 A
Airflow & Ducting
Supply Duct Size: 8"
Return Duct Size: 8"
Maximum Duct Length: 25 ft per duct run
Airflow – Speed 1: 360 CFM
Airflow – Speed 2: 420 CFM
Physical Specifications
Dimensions (L × W × D): 33.9" × 13.8" × 13.8"
Weight: 40 kg (88.2 lbs)
Additional Details
Refrigerant: R290 (eco-friendly refrigerant)
Drain Connection: 5/8" ID
Warranty
Coverage: 2-year manufacturer warranty covering parts and labor
Actual performance depends on cellar insulation quality, construction, ambient conditions, and ducting configuration.
Manuals for APEX 5000 Wine Cellar Cooling Systems of Panthaire
Installation Notes & Requirements
The Pantheaire APEX 5000 requires professional installation to ensure optimal performance and longevity.
For best results:
- Cellar walls should meet R20 insulation standards
- Insulated ducting is required to prevent condensation and thermal loss
- Adequate clearance and airflow paths must be maintained
- Drainage must be properly routed for condensate removal
Our experts are available to help confirm system sizing before purchase.
Warranty & Expert Support
The APEX 5000 is backed by a 2-year parts and labor warranty and supported by North American service technicians. Replacement parts and technical assistance are readily available to support your system throughout its service life.
