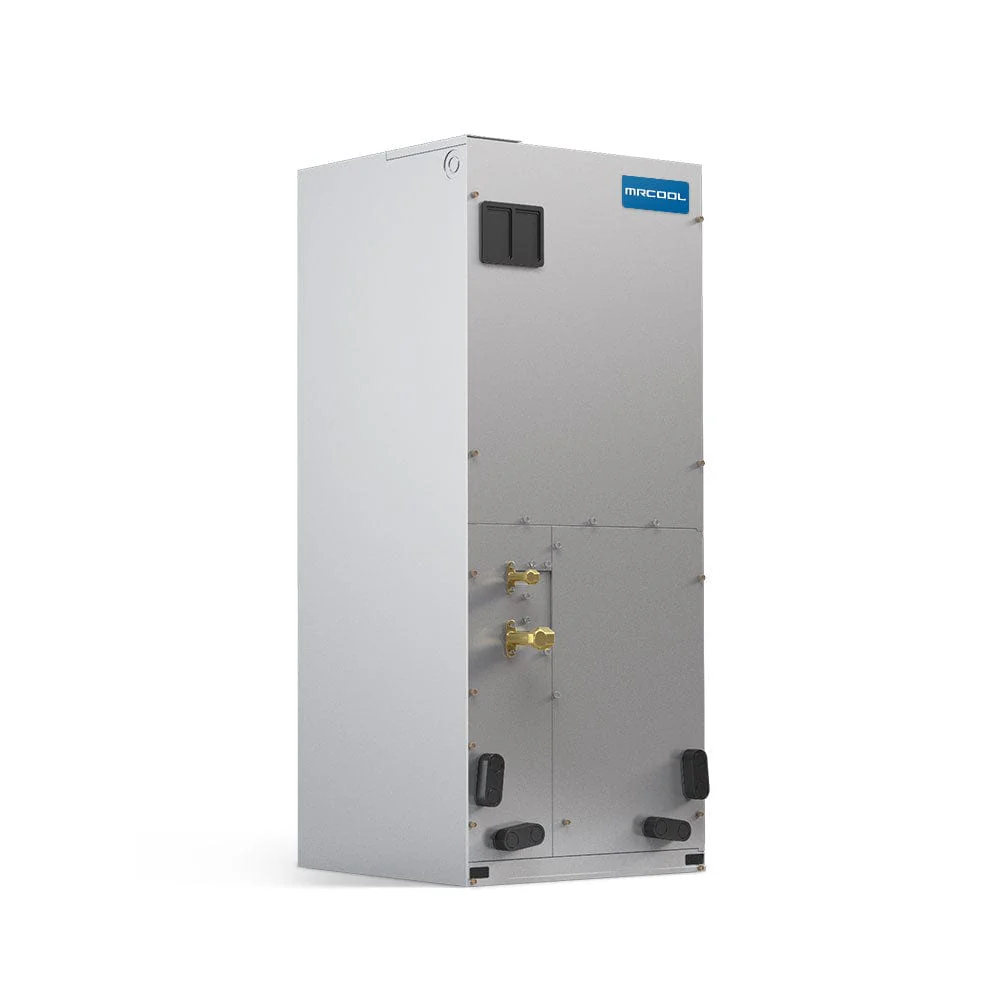

MRCOOL Universal Series High ESP 4-5 Ton Air Handler MDUI18048060E
MRCOOL Universal Series DC Inverter High ESP Air Handler 4-5 Ton R410A 48,000-60,000 BTU 208-230V/1Ph/60Hz MDUI18048060E
Why is the MRCOOL Universal Series DC Inverter High ESP Air Handler (4-5 Ton, 48,000-60,000 BTU) MDUI18048060E the right choice for your HVAC system?
The MRCOOL Universal Series DC Inverter High ESP Air Handler offers efficient climate control with its advanced inverter technology, ensuring precise temperature regulation and energy savings. Designed for high external static pressure (ESP), it is ideal for use in systems with complex ductwork, providing consistent airflow and improved comfort. Its high BTU capacity and compatibility with R410A refrigerant make it a robust solution for managing larger spaces effectively.
Features:
- Up to 18 SEER
- High Efficient Energy Saving DC Fan Motor
- Internal Fan Blade Creates Low Noise
- R-410A environmentally friendly refrigerant
- 3 Connection Types: Patented Pre Charged No-Vac, Sweat Braze Fitting and Flare Fitting
- AHRI Certified & ETL listed
- High Efficient Energy Saving DC Fan Motor
- Fire-Proof Electrical Box Design Offers Anti-Electric Shock Reserved Installation Space for the Circuit Breaker
- Easy to Clean Metal Filter Protects Against Fire, Corrosion, and Deterioration
- Multi-Position Installation: Upflow or Horizontal
- 10 Year Registered Limited Warranty
- 2 Step Condensation Protection
Manuals
Manuals:
Specifications
Specifications:
| Product Dimensions | 21-1/4"W x 24-3/4"D x 57"H |
| Product Weight | 203 lbs |
| SEER | Up to 18 |
| EER | 10.5 |
| HSPF | 10 |
| CFM | 1600 |
| Tonnage | 4-5 Ton |
| Cooling Capacity | 54000 BTU |
| Heating Capacity | 54000 BTU |
| Electrical Requirements | Requires a minimum of 208V-230V/60HZ/8A-15A (please check your home meets this electrical requirement prior to purchase) |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker | 15 A |
| Min Circuit Ampacity | 8 A |
| Color | Gray |
| Refrigerant Type | R-410A |
| Decibel Rating | 51 dBA |
| Number of Speeds | 8 Speed |
| lnverter | DC |
| Min Ambient Cool | -5F - 129.2F |
| Min Ambient Heat | -22 F - 75.2F |
| Lineset Included | No |
| Liquid Line Size | 3/8 in |
| Suction Line Size | 3/4 in |
| Blower Motor HP | 1 |
| Filter Type | Washable |
| Filter Size | 20-11/16 X 20-5/16 X 5/8 |
| Auxiliary Heater Available | Yes |
| Auxiliary Heater Sizes | 10KW / 15 KW / 20 KW |
| Overload Protection | Yes |
| Certifications | ETL Energy Star AHRI |
| Warranty | 10 Year Registered Limited Warranty |
| Proposition 65 Warning | Yes |
