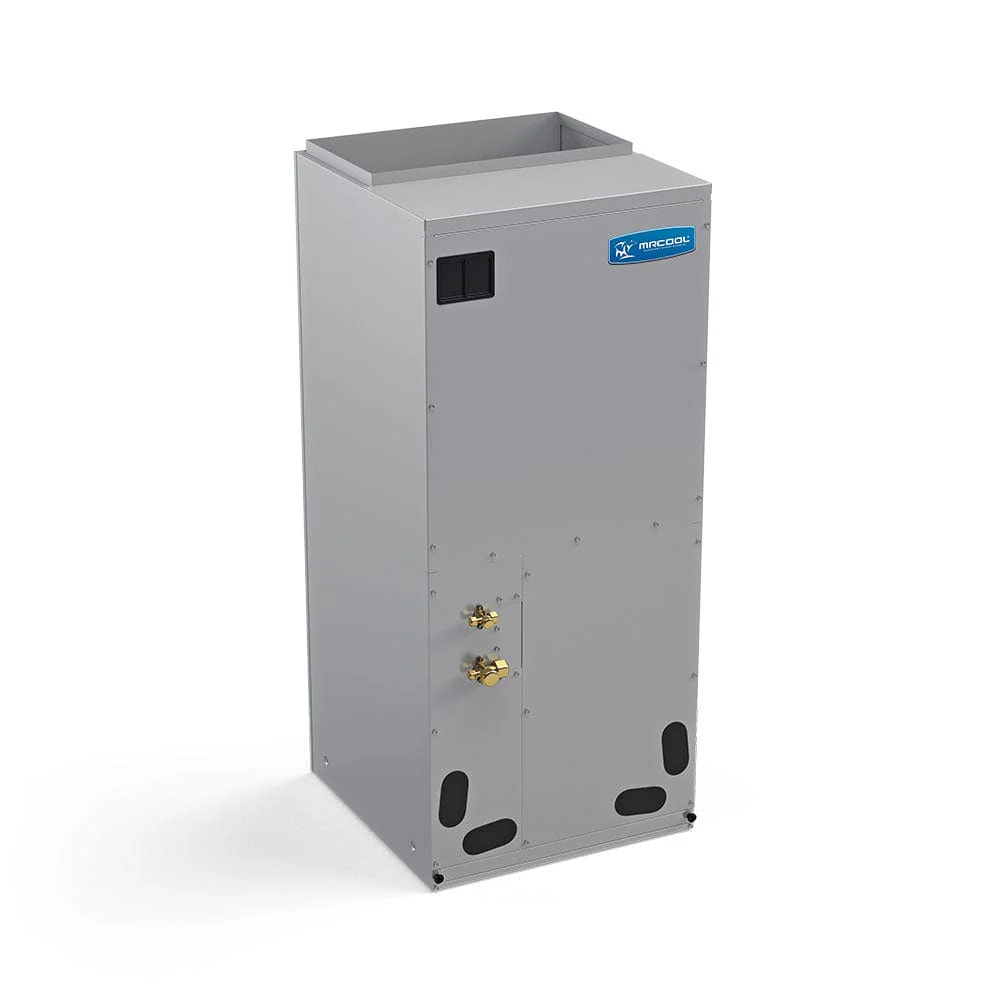

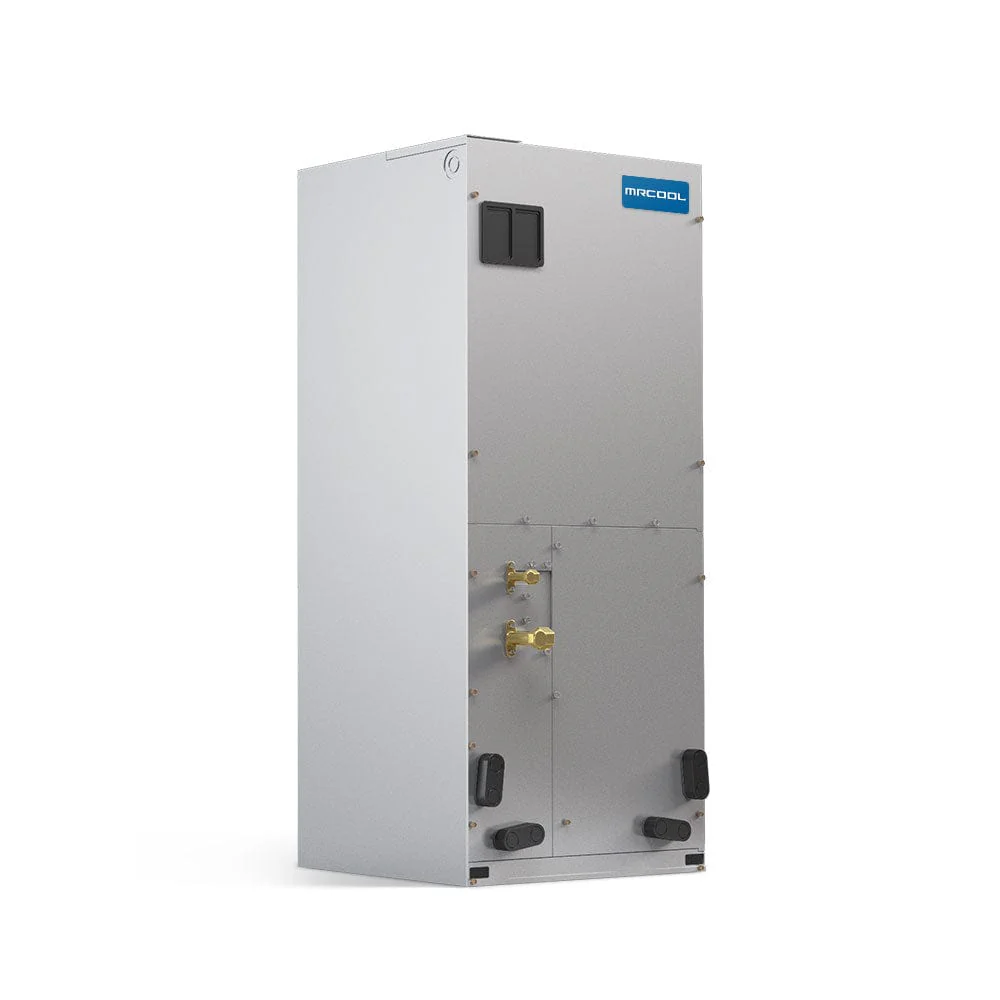

MRCOOL Universal 24K-36K BTU High ESP Air Handler MDUI18024036E
MRCOOL Universal Series DC Inverter 24K-36K BTU High ESP Air Handler MDUI18024036E
Why should you choose the MRCOOL Universal Series DC Inverter 24K-36K BTU High ESP Air Handler MDUI18024036E for your HVAC system?
The MRCOOL Universal Series DC Inverter 24K-36K BTU High ESP Air Handler MDUI18024036E offers superior performance with its 2-3-ton capacity, R410A refrigerant, and high static pressure (ESP) capability. Operating on 208-230V/1Ph/60Hz, this air handler efficiently cools and heats spaces within the 24,000-36,000 BTU range while maximizing energy efficiency with its advanced DC Inverter technology. Its design ensures optimal air distribution and enhanced comfort, making it a reliable and versatile choice for improving your HVAC system's performance.
Features:
- Up to 20 SEER
- High Efficient Energy Saving DC Fan Motor
- Internal Fan Blade Creates Low Noise
- R-410A environmentally friendly refrigerant
- 3 Connection Types: Patented Pre Charged No-Vac, Sweat Braze Fitting and Flare Fitting
- AHRI Certified & ETL listed
- High Efficient Energy Saving DC Fan Motor
- Fire-Proof Electrical Box Design Offers Anti-Electric Shock Reserved Installation Space for the Circuit Breaker
- Easy to Clean Metal Filter Protects Against Fire, Corrosion, and Deterioration
- Multi-Position Installation: Upflow or Horizontal
- 10 Year Registered Limited Warranty
- 2 Step Condensation Protection
Manuals
Manuals:
- User Manual
- Product Brochure
- Performance Specifications
- Service Manual
- Warranty Doc
- Accessory Manual
- AHRFI Certifications
- Energy Guide
Specifications
Specifications:
| Product Dimensions | 21.25"W x 21.25"D x 48.25"H |
| Product Weight | 156.5 lbs |
| SEER | Up to 20 |
| EER | 10 |
| HSPF | 10 |
| CFM | 1,000 |
| Tonnage | 2-3 Ton |
| Cooling Capacity | 36,000 BTU |
| Heating Capacity | 36,000 BTU |
| Electrical Requirements | Requires a minimum of 208V-230V/60HZ/4A-15A (please check your home meets this electrical requirement prior to purchase) |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker | 15 A |
| Min Circuit Ampacity | 4 AMP |
| Color | Gray |
| Max Coverage Area | Up to 1,500 |
| Refrigerant Type | R-410A |
| Decibel Rating | 47 |
| lnverter | DC |
| Lineset Included | No |
| Line Set Length | 15ft, 25ft, 35ft, 50ft |
| Liquid Line Size | 3/8 in |
| Suction Line Size | 3/4in |
| Filter Type | Washable |
| Filter Size | 19-5/16 X 20-5/16 X 5/8 |
| Auxiliary Heater Available | Yes |
| Auxiliary Heater Sizes | 5kw / 8kw / 10kw |
| Overload Protection | Yes |
| Certifications | ETL Listed Energy Star AHRI |
| Warranty |
10 Year Registered Limited Warranty 5 Years Limited Parts Warranty |
