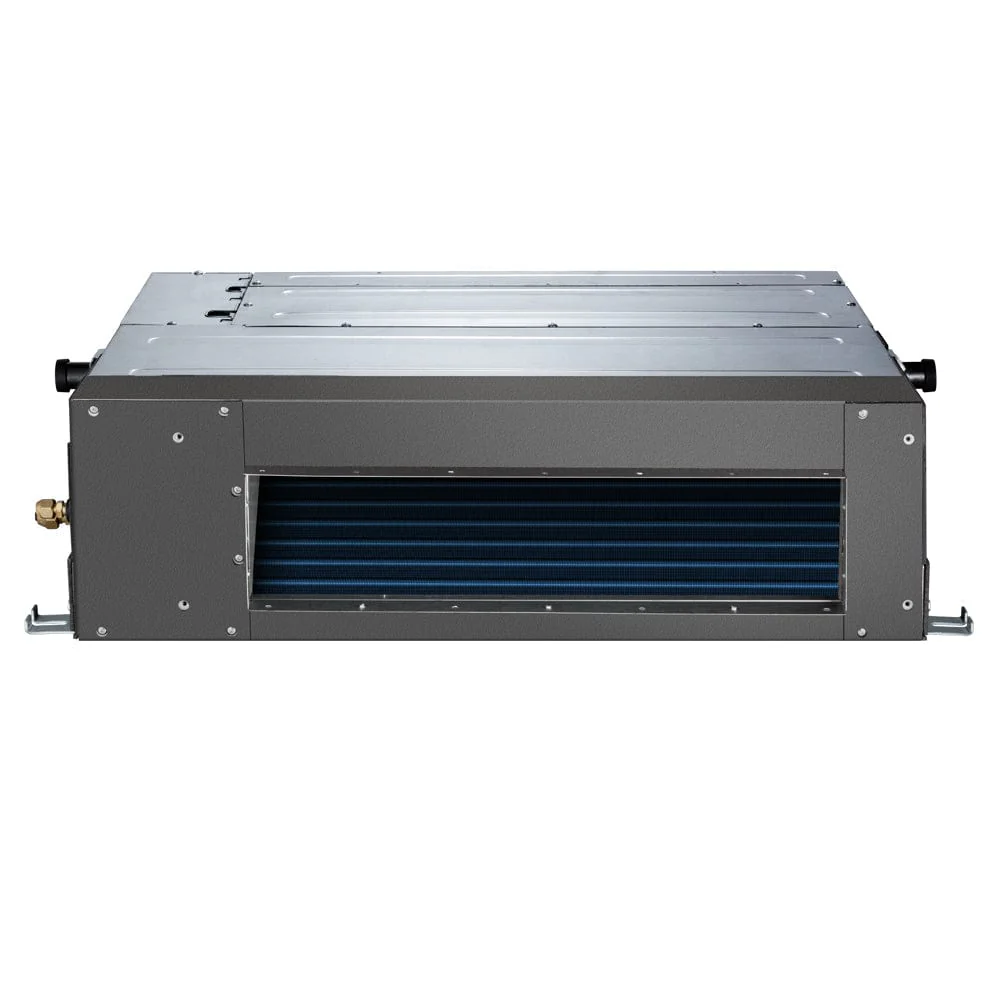

MRCOOL Olympus 18K BTU 1.5 Ton Ducted Air Handler, DUCT-18HP-230
MRCOOL Olympus Multi 18K BTU 1.5 Ton Ducted Mini Split Air Handler, DUCT-18HP-230
Why is the MRCOOL Olympus Multi 18K BTU 1.5 Ton Ducted Mini Split Air Handler DUCT-18HP-230 an excellent choice for efficient and versatile climate control?
The MRCOOL Olympus Multi 18K BTU 1.5 Ton Ducted Mini Split Air Handler DUCT-18HP-230 is an excellent choice for efficient and versatile climate control because it combines the benefits of a ducted system with the flexibility of mini-split technology. This air handler can be integrated into existing ductwork, providing uniform temperature distribution throughout multiple rooms. Its 18K BTU capacity ensures effective heating and cooling for medium to large spaces. Additionally, its energy-efficient design reduces utility costs, while the advanced features, such as quiet operation and precise temperature control, enhance overall comfort. The unit's compatibility with various MRCOOL condensers further increases its versatility and ease of installation.
Features:
- High efficiency up to 23 SEER and 10.3 HSPF
- Multi-zone capability (up to 5 zones)
- Quiet operation
- Smart control via the MRCOOL Smart HVAC app
- Eco-friendly R-410A refrigerant
- Multiple modes: COOL, HEAT, AUTO, DRY, SLEEP
- Compact, durable design
Manuals
Manuals:
Specifications
Specifications:
| Product Dimensions | 34.65"W x 26.54"D x 8.27"H |
| Product Weight | 55.34 lbs |
| CFM | 370.81/450.26/529.72 |
| Tonnage | 1 1/2 |
| Cooling Capacity | 18000 BTU |
| Heating Capacity | 18000 BTU |
| Electrical Requirements | Requires a minimum of 208V-230V/60HZ/15A (please check your home meets this electrical requirement prior to purchase) |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker | 15 A |
| Min Circuit Ampacity | 1.9 A |
| Mount Type | Ducted |
| Color | White |
| Color Family | White |
| Max Coverage Area | 1500 sq ft |
| Refrigerant Type | R-410A |
| Decibel Rating | 36/34/30 dBA |
| Decibel Rating Low | 30 dBA |
| Decibel Rating High | 36 dBA |
| Air Flow Direction | Ducted |
| Number of Speeds | Variable |
| Inverter | Yes |
| Liquid Line Fitting | 3/8 in |
| Liquid Line Size | 1/4 in |
| Suction Line Fitting | 5/8 in |
| Suction Line Size | 1/2 in |
| Control Type | LED |
| Blower Motor RPM | 1100/950/860 |
| Overload Protection | Yes |
| Adjustable Thermostat | Yes |
| Modes | Fan Only Quiet Mode Auto Cool |
| Wifi Compatibility | No |
| App Compatibility | No |
| Includes | Remote Batteries |
| Certifications | UL ETL Energy Star AHRI |
| Warranty | 5-year Parts/7-year Compressor/1-year Remote |
| Proposition 65 Warning | Yes |
| Restricted States | GU, PR, VI |
| Freight Class | 70 |
