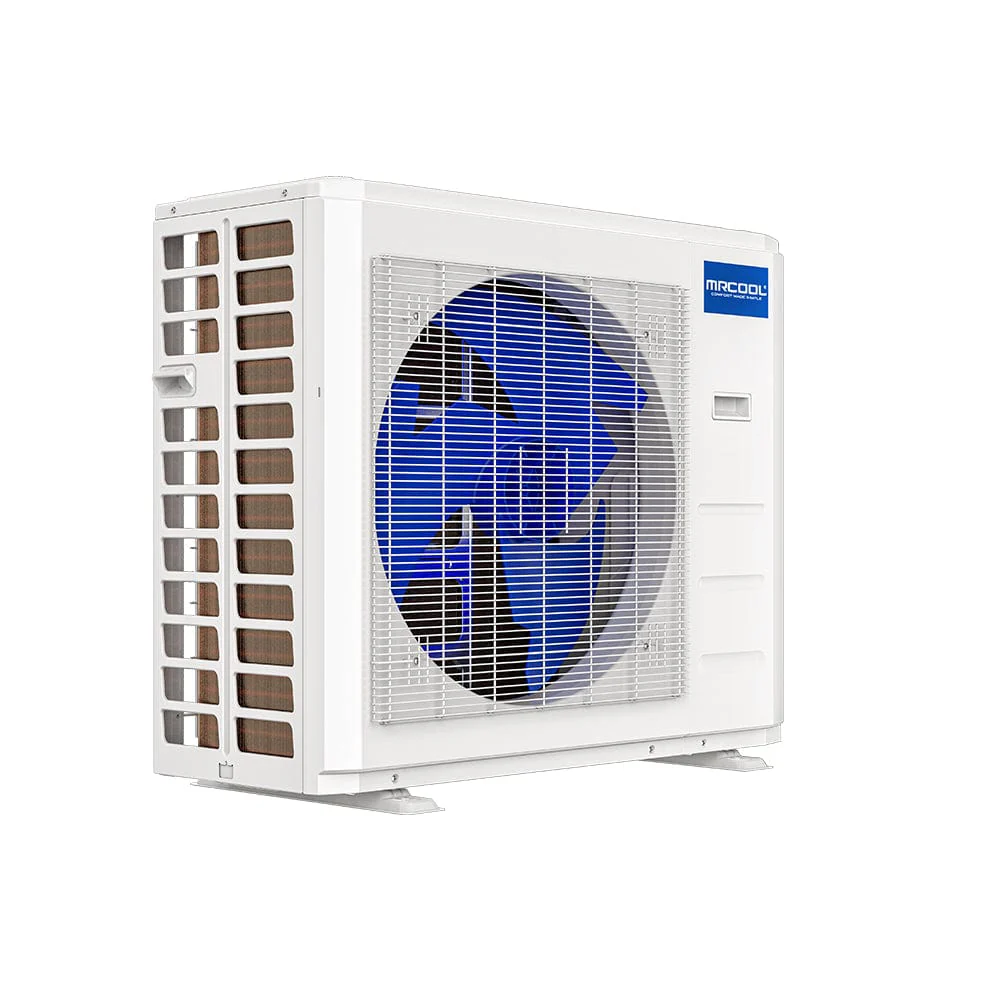

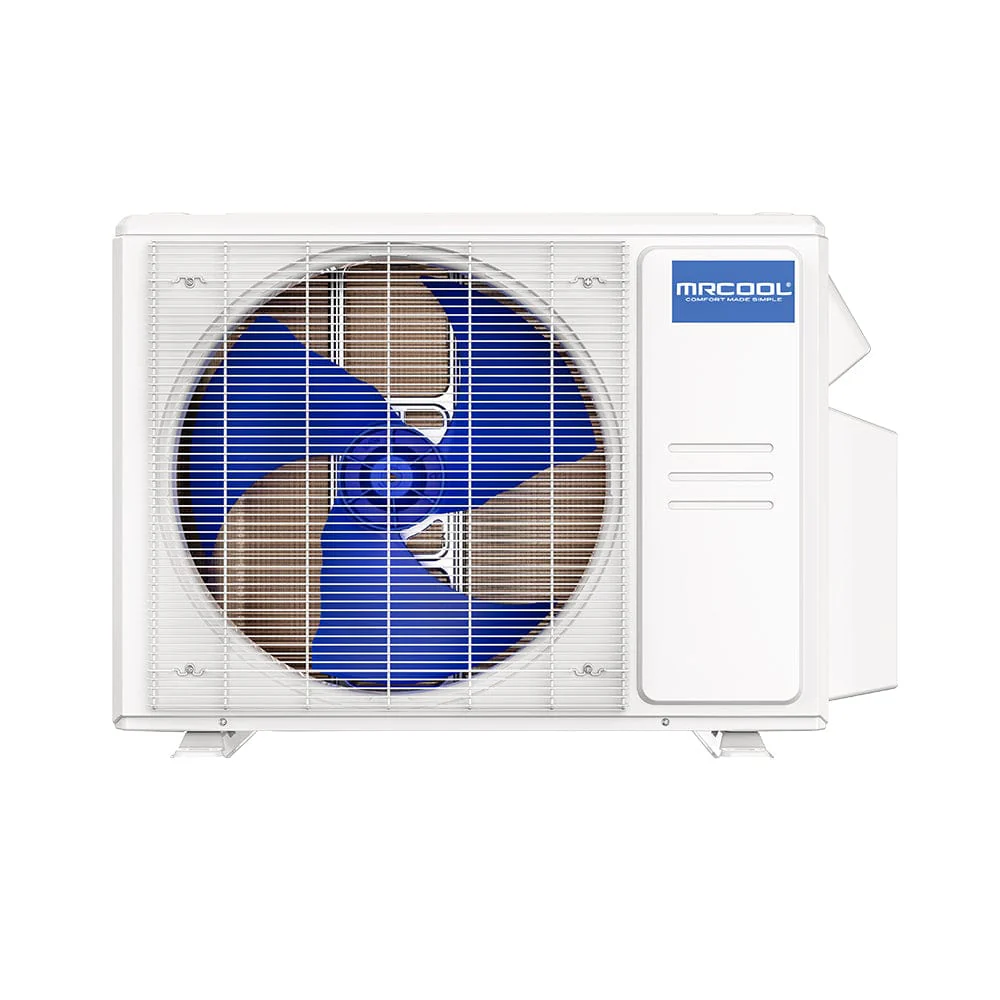

MRCOOL DIY Multi-Zone 2-Zone 18K BTU Condenser DIY-MULTI2-18HP230C
MRCOOL DIY 4th Gen Multi-Zone 18K BTU 2-Zone Condenser, 4th Gen Series, DIY-MULTI2-18HP230C
Low Stock – Call for Availability
This item is currently in low stock. For the latest availability or assistance, contact our sales team at +1-800-583-0045 or email us at [email protected]
Why is the MRCOOL DIY 4th Gen Multi-Zone 18K BTU 2-Zone Condenser DIY-MULTI2-18HP230C an optimal solution for effective climate control in smaller multi-zone spaces?
The MRCOOL DIY 4th Gen Multi-Zone 18K BTU 2-Zone Condenser DIY-MULTI2-18HP230C is ideal for smaller multi-zone spaces, providing efficient climate control with an 18K BTU capacity across two zones. Its ductless split design allows for flexible and easy installation without requiring ductwork. The DIY installation feature helps reduce setup costs and simplifies the process, while its high energy efficiency ensures lower utility bills. This system is perfect for homeowners seeking effective, customizable, and cost-efficient climate management in two separate areas.
Features:
- Up to 21 SEER
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long-term corrosion
- Energy-Efficient DC Inverter
- R-410A environmentally friendly refrigerant
- Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
Manuals
Manuals:
- Installation Manual
- Product Brochure
- Performance Specifications
- Warranty
- Energy Guide
- AHRI Certificate
Specifications
Specifications:
| Product Dimensions | 35.04"W x 13.46"D x 26.50"H |
| Product Weight | 100.53 lbs |
| SEER2 | 21.2 |
| EER2 | 12.5 |
| HSPF2 | 9.6 |
| SEER | 21 |
| EER | 12.5 |
| HSPF | hspf4/hspf5 : 10.6/8.6 |
| CFM | 1764.71 |
| Cooling Capacity | 18,000 BTU |
| Heating Capacity | 19,000 BTU |
| Voltage |
Requires a minimum of 208V-230V/60HZ/18-25A (please check your home meets this electrical requirement prior to purchase) |
| Phase | 1 |
| Cycle | 60Hz |
| Min Circuit Ampacity | 18A |
| Color | White |
| Zone Capacity | 2 |
| Refrigerant Type | R-410A |
| Refrigerant Volume | 65.26 oz |
| Decibel Rating | 59 dBA |
| Inverter | Yes |
| Min Ambient Cool | 5°F ~ 122°F |
| Min Ambient Heat | -13°F ~ 75.2°F |
| Max Lineset Length | 123 ft TOTAL |
| Liquid Line Size | 1/4in |
| Suction Line Size | 3/8in |
| Compressor Motor Type | Twin - Rotary |
| Condenser Fan Motor RPM | 750/600/500 |
| Wifi Compatibility | Yes |
| App Compatibility | Yes |
| Compatible with | IOS Android |
| Includes | Remote Batteries |
| Warranty | Limited Lifetime on the Compressor 5-year Parts on Base Parts |
MRCOOL DIY 4th Gen Multi-Zone 18K BTU 2-Zone Condenser, 4th Gen Series, DIY-MULTI2-18HP230C
Low Stock – Call for Availability
This item is currently in low stock. For the latest availability or assistance, contact our sales team at +1-800-583-0045 or email us at [email protected]
Why is the MRCOOL DIY 4th Gen Multi-Zone 18K BTU 2-Zone Condenser DIY-MULTI2-18HP230C an optimal solution for effective climate control in smaller multi-zone spaces?
The MRCOOL DIY 4th Gen Multi-Zone 18K BTU 2-Zone Condenser DIY-MULTI2-18HP230C is ideal for smaller multi-zone spaces, providing efficient climate control with an 18K BTU capacity across two zones. Its ductless split design allows for flexible and easy installation without requiring ductwork. The DIY installation feature helps reduce setup costs and simplifies the process, while its high energy efficiency ensures lower utility bills. This system is perfect for homeowners seeking effective, customizable, and cost-efficient climate management in two separate areas.
Features:
- Up to 21 SEER
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long-term corrosion
- Energy-Efficient DC Inverter
- R-410A environmentally friendly refrigerant
- Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
Manuals
Manuals:
- Installation Manual
- Product Brochure
- Performance Specifications
- Warranty
- Energy Guide
- AHRI Certificate
Specifications
Specifications:
| Product Dimensions | 35.04"W x 13.46"D x 26.50"H |
| Product Weight | 100.53 lbs |
| SEER2 | 21.2 |
| EER2 | 12.5 |
| HSPF2 | 9.6 |
| SEER | 21 |
| EER | 12.5 |
| HSPF | hspf4/hspf5 : 10.6/8.6 |
| CFM | 1764.71 |
| Cooling Capacity | 18,000 BTU |
| Heating Capacity | 19,000 BTU |
| Voltage |
Requires a minimum of 208V-230V/60HZ/18-25A (please check your home meets this electrical requirement prior to purchase) |
| Phase | 1 |
| Cycle | 60Hz |
| Min Circuit Ampacity | 18A |
| Color | White |
| Zone Capacity | 2 |
| Refrigerant Type | R-410A |
| Refrigerant Volume | 65.26 oz |
| Decibel Rating | 59 dBA |
| Inverter | Yes |
| Min Ambient Cool | 5°F ~ 122°F |
| Min Ambient Heat | -13°F ~ 75.2°F |
| Max Lineset Length | 123 ft TOTAL |
| Liquid Line Size | 1/4in |
| Suction Line Size | 3/8in |
| Compressor Motor Type | Twin - Rotary |
| Condenser Fan Motor RPM | 750/600/500 |
| Wifi Compatibility | Yes |
| App Compatibility | Yes |
| Compatible with | IOS Android |
| Includes | Remote Batteries |
| Warranty | Limited Lifetime on the Compressor 5-year Parts on Base Parts |
Original: $2,046.40
-70%$2,046.40
$613.92Description
