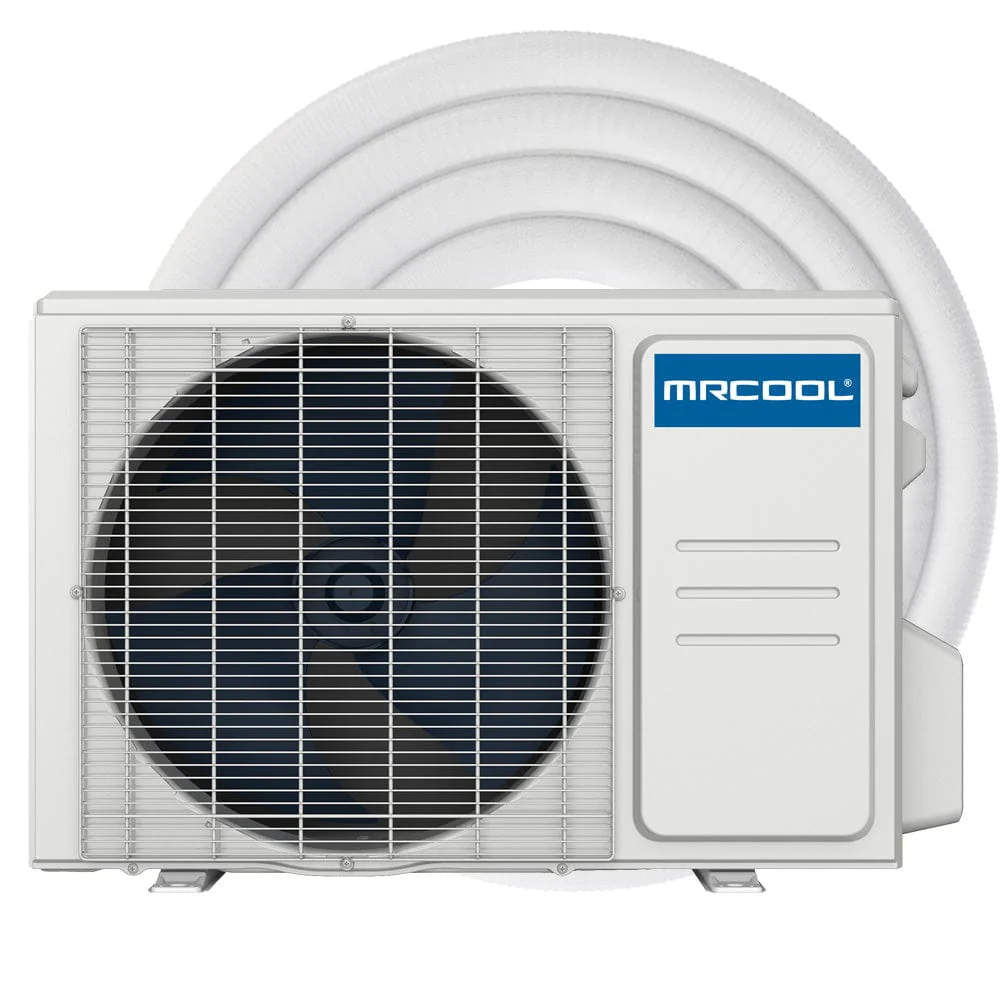

MRCOOL DIY Easy Pro 24K BTU Ductless Mini Split Heat Pump Complete System EZPRO-24-HP-23016

This product is no longer available, Our sales professionals can help you in finding something similar that matches your style, space, and budget. Feel free to contact us today at +1-800-583-0045 or email us at [email protected]

The MRCOOL DIY Easy Pro 24K BTU Ductless Mini Split Heat Pump Complete System EZPRO-24-HP-23016 is an excellent choice for efficient home climate control due to its 24K BTU capacity, ideal for medium-sized rooms. Its ductless design eliminates the need for ductwork, allowing for straightforward installation and reducing labor costs. The DIY feature simplifies setup, while its high energy efficiency lowers utility bills, making it a cost-effective and convenient solution for maintaining a comfortable indoor environment.

Features:

• Up to 18 SEER
• Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long-term corrosion
• Energy-Efficient DC Inverter
• ow ambient cooling: cooling down to 5F exterior temperatures, the ideal system for computer server rooms, greenhouses, and any other applications that require cooling all year
• Includes features such as timer mode, refrigerant leakage detection, and more
• Systems include our Smart HVAC WiFi Control Module with improved setup and enhanced functionality for Apple and Android smart devices. Works with Amazon Alexa. Works with Google Assistant

Manuals

Manuals:

• Installation Manual
• Product Specs and Brochure

• Remote Manual
• Warranty Document
• Energy Guide

• AHRI Certified

Specifications

Specifications:

Condenser Dimensions	35.04"W x 13.46"D x 26.5"H
Condenser Weight	97.66 lbs
Air Handler Dimensions	42.60"W x 9.21"D x 13.27"H
Air Handler Weight	35.27 lbs
SEER	18
EER	9
COP 47	3.08
HSPF	hspf4/hspf5 : 10.3/8.4
CFM	594.41 / 404.12 / 333.53
Cooling Capacity	24,000 BTU
Heating Capacity	25,000 BTU
Voltage	Requires a minimum of 208-230V/60HZ/21 to 35A (please check your home meets this electrical requirement prior to purchase)
Phase	1
Cycle	60 Hz
Max Fuse Breaker	35 A
Min Circuit Ampacity	21 A
Color	White
Rated Load	15 A
Max Coverage Area	Up to 1,000 sqft
Zone Capacity	1
Refrigerant Type	R-410A
Refrigerant Volume	62.79 oz
Decibel Rating	27 dBA to 45 dBA
Decibel Rating Low	27 dBA
Decibel Rating High	45 dBA
Inverter	Yes
Min Ambient Cool	5F - 122F
Min Ambient Heat	5F - 75.2F
Line Set Length	16ft - Included
Max Lineset Length	50ft
Liquid Line Size	3/8 in
Suction Line Size	5/8 in
Compressor Motor Type	Twin - Rotary
Condenser Fan Motor RPM	810/720
Blower Motor Speeds	3
Blower Motor RPM	1100/940/860
Filter Type	Washable
Modes	Fan Only Sleep Mode Auto Cool Dry Heat
Wifi Compatibility	Yes
App Compatibility	Yes
Compatible with	IOS Android
Includes	Remote
Certifications	UL Listed Energy Star AHRI
Registered Warranty	2-year Parts/1-year Compressor
