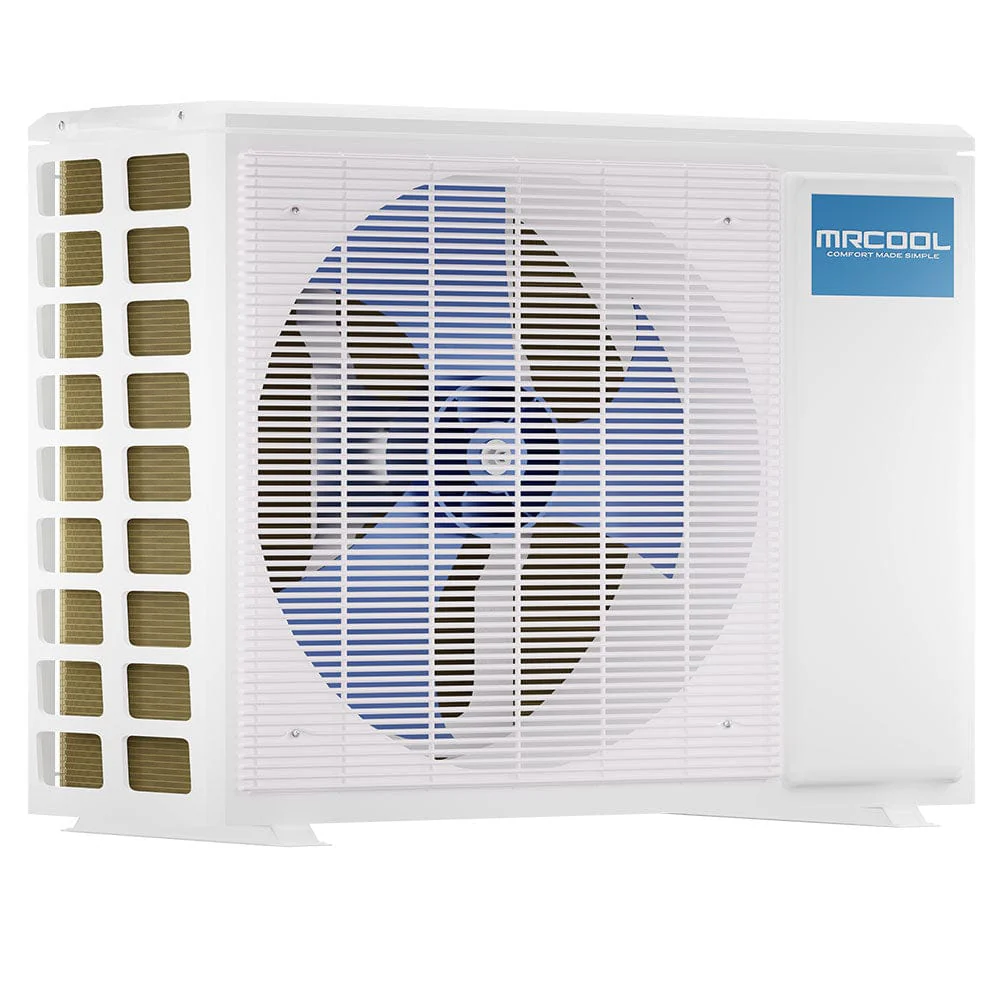

MRCOOL DIY 4th Generation Energy Star 18K BTU 1.5 Ton Ductless Mini Split Heat Pump Complete System DIY-18-HP-WM-230C25

This product is no longer available, Our sales professionals can help you in finding something similar that matches your style, space, and budget. Feel free to contact us today at +1-800-583-0045 or email us at [email protected]

The MRCOOL DIY 4th Gen E STAR 18K BTU 1.5 Ton Ductless Mini Split Heat Pump DIY-18-HP-WM-230C25 is ideal for medium-sized rooms due to its 18K BTU capacity, providing effective heating and cooling. Its DIY installation feature simplifies setup, reducing installation costs. With a high SEER rating, it ensures superior energy efficiency and lower utility bills, making it a cost-effective and convenient solution for maintaining a comfortable climate in medium-sized spaces.

Features:

• Up to 22.70 SEER
• Gold Fin® condenser: corrosion-resistant coastal living - don't worry, our condenser is built to resist long term corrosion
• Variable-speed DC inverter compressor technology cuts operating costs
• R-410A environmentally friendly refrigerant
• Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

Manuals

Manuals:

• Installation Manual

• Product Brochure

• Performance Specifications

• Service Manual

• Remote Control

• Warranty

• Energy Guide

• AHRI Certificate

Specifications

Specifications:

Condenser Dimensions	35.04"W x 13.46"D x 26.50"H
Condenser Weight	94.36 lbs
Air Handler Dimensions	42.52"W x 8.90"D x 13.19"H
Air Handler Weight	34.61 lbs
SEER2	22.70
EER2	12.60
SEER	22
EER	12.5
COP 47	3.74
HSPF2	9.80
HSPF	hspf4/hspf5 : 11.5/9
CFM	465.29/361.76/304.12
Tonnage	1.5
Cooling Capacity	18,000 BTU
Heating Capacity	18,000 BTU
Voltage	Requires a minimum of 208-230V/60HZ/18-30A (please check your home meets this electrical requirement prior to purchase)
Phase	1
Cycle	60 Hz
Max Fuse Breaker	30 A
Min Circuit Ampacity	18 A
Color	White
Rate Load	0.25 A
Max Coverage Area	Up to 750 sqft
Zone Capacity	1
Refrigerant Type	R-410A
Refrigerant Volume	56.44 oz
Decibel Rating	44.5/37/31
Decibel Rating Low	31 dBA
Decibel Rating High	44.5 dBA
Oscillation	4-W
Inverter	Yes
Min Ambient Cool	-13F - 122F
Min Ambient Heat	-13F - 75F
Line Set Length	25ft
Max Lineset Length	98.42 ft
Liquid Line Size	1/4 in
Suction Line Size	1/2 in
Compressor Motor Type	Rotary
Condenser Fan Motor RPM	810/720
Blower Motor RPM	1120/950/700
Auxiliary Heater Available	No
Modes	Fan Only Quiet Mode Auto Cool
Wifi Compatibility	Yes
App Compatibility	Yes
Compatible with	IOS Android
Includes	Remote Batteries
Certifications	UL Listed Energy Star AHRI
Warranty	5-year Parts/7-year Compressor
Restricted States	GU;PR;VI
