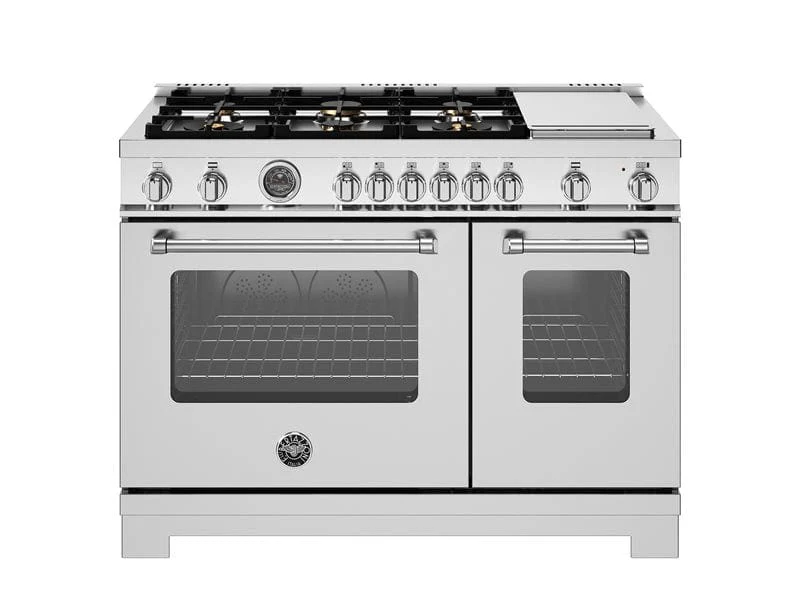

Bertazzoni Master Series 48" 6 Brass Burners Stainless Steel Freestanding Propane Gas Range With 7.1 Cu.Ft. Double Oven and Electric Griddle MAS486BTFGMXT-LP Product Details

48" Master Series range - Gas Oven - 6 brass burners + griddle

Bertazzoni's new ranges, designed and made in Italy, seamlessly integrate into high-performing kitchens. The maintop features 6 brass burners, including 2 dual ring 19,000 BTU power-burners and 4 variable MonoBloc burners, plus an electric griddle. The 4.7 cubic feet oven, the largest in its class, has a dual convection fan, digital gauge, and food temperature probe. It also includes an extra-wide infrared gas broiler and a 2.4 cubic feet auxiliary oven, both with smooth glides and soft-close doors. Optional Collezione Metalli décor sets personalize the design.

Note: This model is also available with LP gas connection.

Features

Features:

• Stainless steel finish

• Factory-converted to LP gas
• Continuous contour grates and single piece worktop - Modelled on commercial grade cast iron contour grates, the maintop offers a larger and more stable cooking surface. Designed to fit precisely and equipped with nonscratch larger silicon buffers, it helps keep cookware more stable. The one piece molded worktop has no sharp angles or dirt traps, making cleaning quick and easy. The elegantly designed low-profile back guard makes flush counter depth installation easily achievable as well as making it extremely effective in an island configuration.

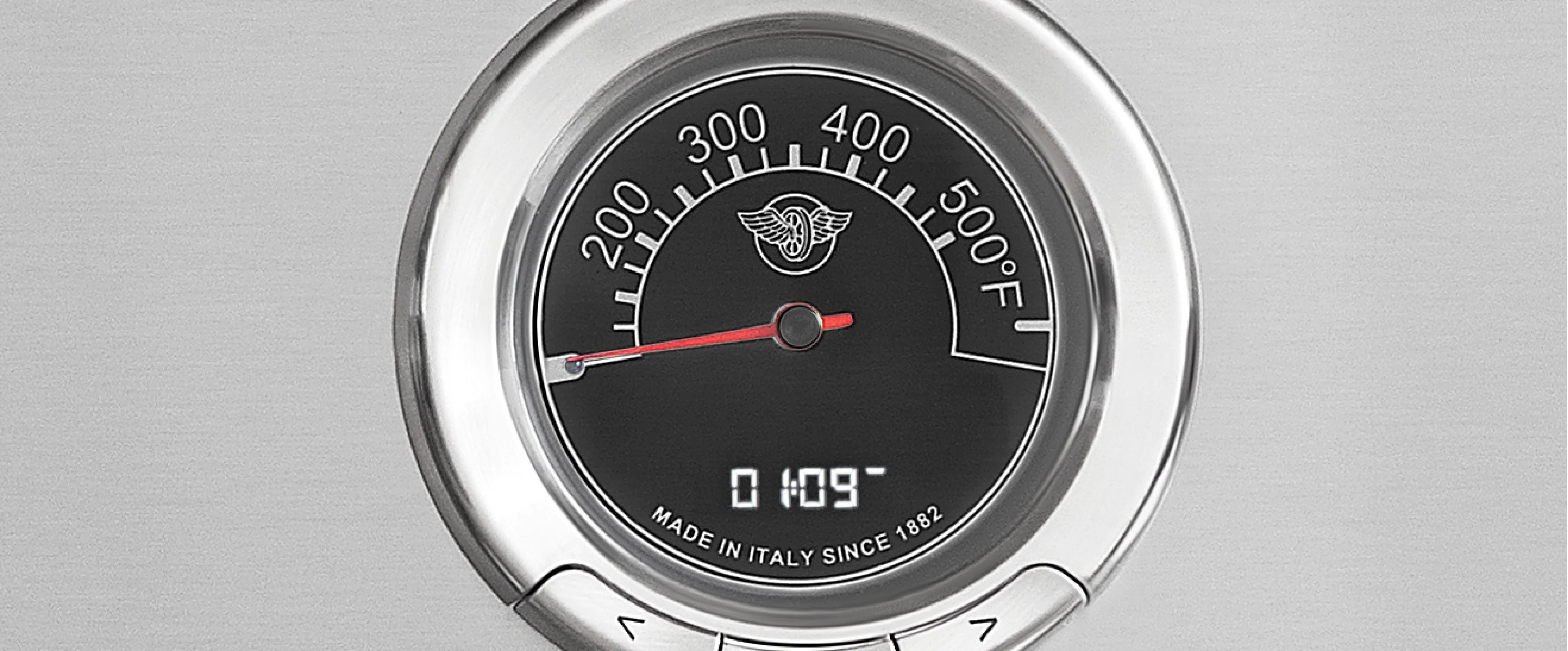

• Gas convection oven - The precision temperature control system gives you complete control of your oven. Even heat distribution on all 7 levels offers consistent temperatures with best-in-class accuracy, accurately monitored with the timelessly elegant temperature gauge. The full oven width infrared gas broiler delivers a truly professional performance.

• High-efficiency maintop and digital food probe - Bertazzoni engineers have worked to design a highly efficient worktop by reducing the flame-to-cookware distance for faster heating. More lateral space has been created between the burners so you can use larger cookware more effectively. This digital thermostat and user interface make cooking a large variety of dishes at exactly the right temperature simple. It constantly monitors the temperature at the heart of the dish and adjusts the oven temperature automatically for even cooking and perfect results every time.

Manuals

Manuals:

• Owners Manual

Specifications

Specifications:

Worktop

Brand	Bertazzoni
Item Number	MAS486BTFGMXT
Finish	Stainless Steel
Size	48 in
Cooking Zones	7
Number of Gas Zones	6 burners

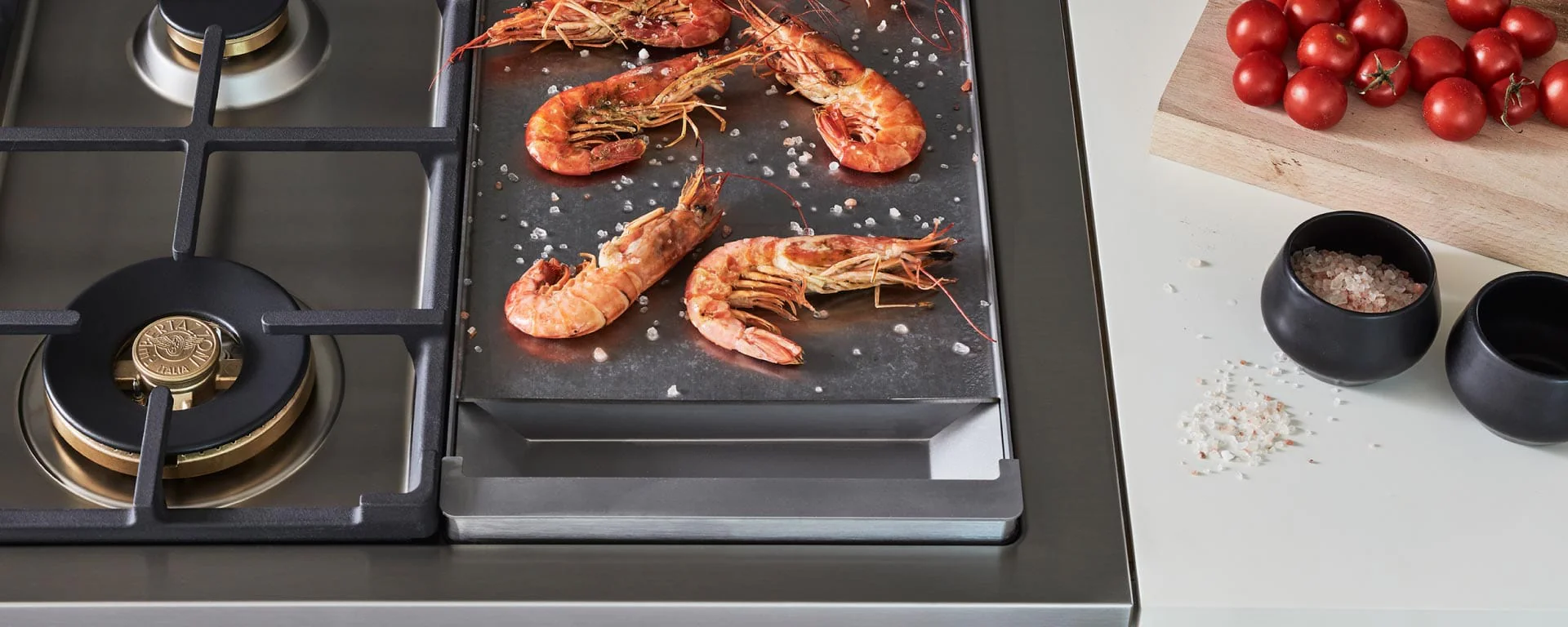

Griddle Zones	electric
Worktop Type	electric / gas
Worktop Design	stainless steel squared

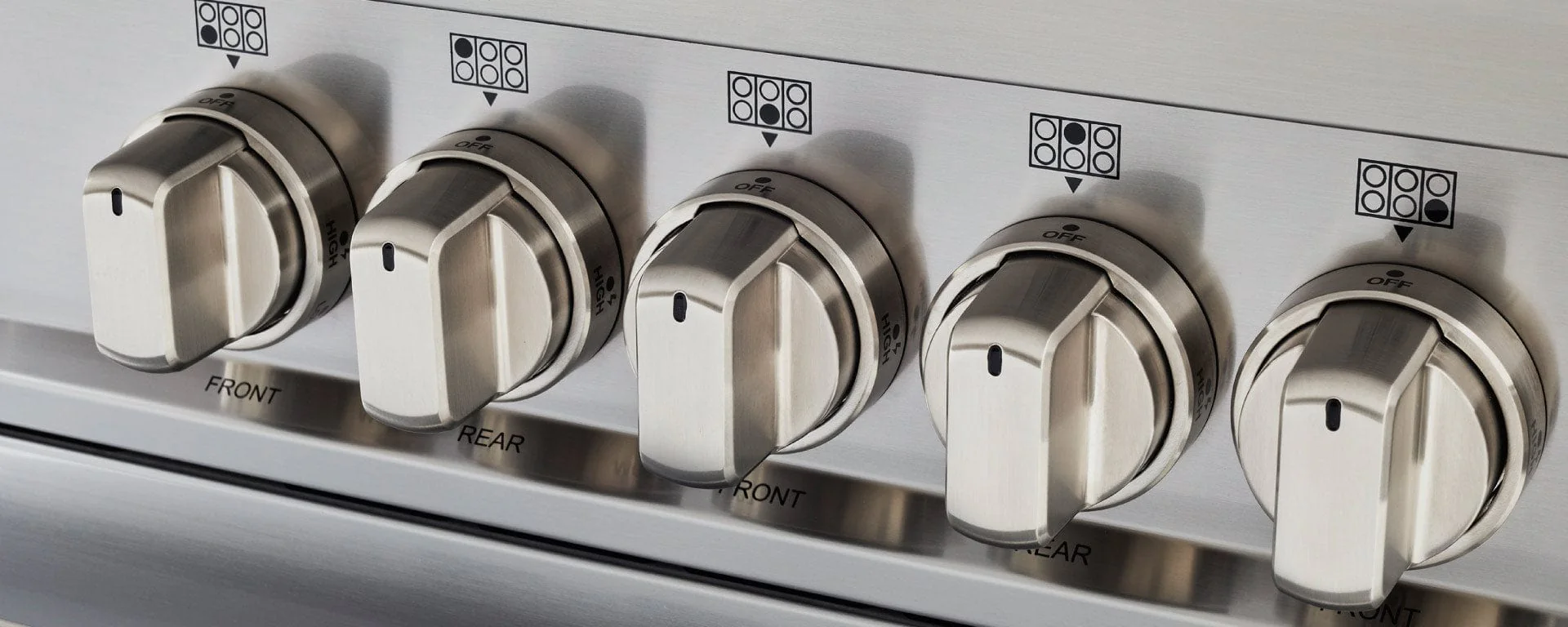

Worktop Controls	knobs
Knobs	solid metal

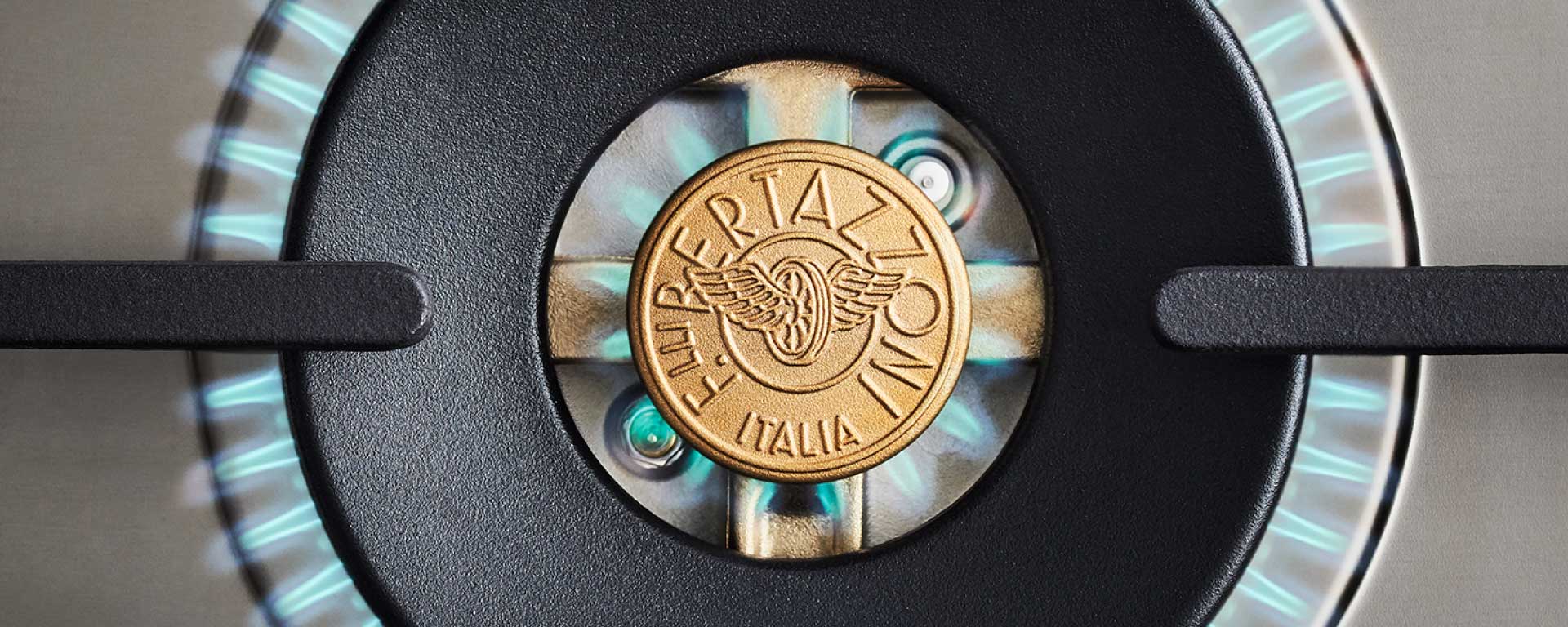

Burner Type	brass
Grates	cast iron
Continous Grating	yes
Thermocouple Safety Device	yes
One-hand Ignition	yes
Backguard	yes
Wok Ring	yes
Simmer Ring	yes

Cooking Zones

Power Burner	1300 BTU/h - 19 000 BTU/h (2)
Rapid Burner	2500 BTU/h - 10 400 BTU/h (1)
Medium Burner	1500 BTU/h - 5900 BTU/h (2)
Simmer Burner	750 BTU/h - 3500 BTU/h (1)
Griddle Power	1100 W
Griddle Dual Control	yes
Griddle Drip Tray	yes

Oven Cavity

Oven Configuration	double
Oven Fuel	gas
Oven Type	gas conventional
Oven Convection System	dual horizontal fans
Main Oven Type	fan assisted gas
Main Oven Broiler Type	gas
Main Oven Functions	bake / broiler / convection bake / defrosting
Main Oven Volume	4.7 ft³
Auxiliary Oven Type	gas conventional
Auxiliary Oven Functions	bake
Auxiliary Oven Volume	2.4 ft³
Oven Controls	knobs / thermometer
Inner Oven Door	triple
Removable Inner Glass	yes
Cooling Fan	yes
Oven Levels	7
Food Probe	yes
Door Hinges	soft-close
Sliding Shelves	2 sets of telescopic guides
Wire-Shelves	2 each cavity
Tray	1 baking tray with grill trivet
Grill Trivet for Tray	yes
Oven Lights	double lateral

Bottom

Legs	stainless steel

Technical Specifications

Absorbed Current (A)	10 A with dedicated circuit
Electrical Supply	110V 60 Hz - 1200W
