Bertazzoni Master Series 48" 6 Aluminum Burners Bianco Matt Freestanding All Gas Range With 7.1 Cu.Ft. Double Oven and Electric Griddle MAS486GGASBIV
Bertazzoni Master Series 48" 6 Aluminum Burners Bianco Matt Freestanding All Gas Range With 7.1 Cu.Ft. Double Oven and Electric Griddle MAS486GGASBIV Product Details
48" Master Series range - Gas Oven - 6 aluminum burners + griddle

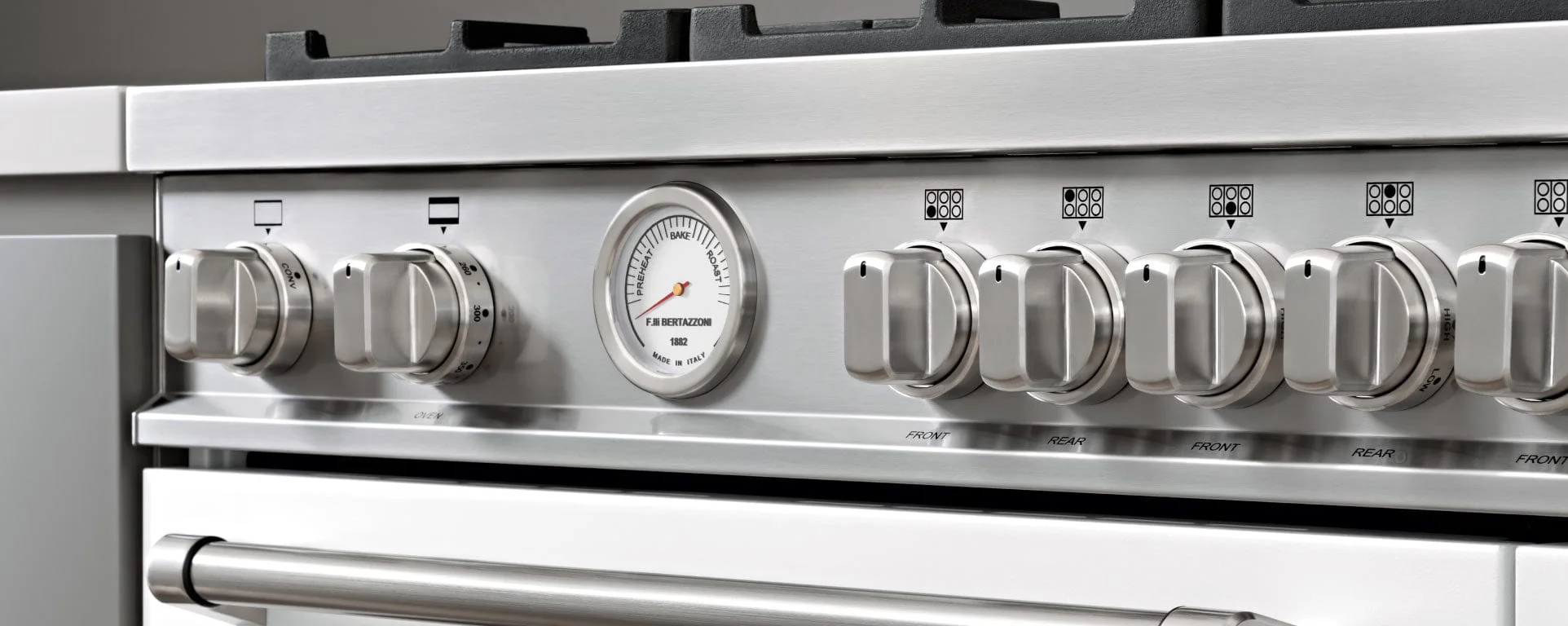

The new Bertazzoni ranges, designed and made in Italy, integrate seamlessly into stylish kitchen suites. The high-efficiency maintop features 6 burners, including two 19,000 BTU power-burners that boil water in under 6 minutes, and a stainless steel griddle. The 4.7 cubic feet main oven, with dual convection fans and a large temperature gauge, ensures even baking and roasting. An auxiliary 2.4 cubic feet oven is perfect for smaller dishes. Optional Collezione Metalli décor sets personalize the look with satin gold and black nickel accents.
Features
- Available in Stainless Steel, Nero Matt (Black), and Bianco Matt (White) finishes.
- Come standard in NG, A gas conversion kit is included with every range. Factory-converted to LP gas is also available.
Manuals
Manuals:
Specifications
Specifications:
Worktop
| Brand | Bertazzoni |
| Item Number | MAS486GGASBIV |
| Finish | Bianco Matt |
| Size | 48 in |
| Cooking Zones | 7 |
| Number of Gas Zones | 6 burners |
| Griddle Zones | electric |
| Worktop Type | electric / gas |
| Worktop Design | stainless steel squared |
| Worktop Controls | knobs |
| Knobs | solid metal |
| Burner Type | aluminum |
| Grates | cast iron |
| Continous Grating | yes |
| Thermocouple Safety Device | yes |
| One-hand Ignition | yes |
| Backguard | yes |
| Simmer Ring | yes |
Cooking Zones
| Power Burner | 1300 BTU/h - 19 000 BTU/h (2) |
| Rapid Burner |
2500 BTU/h - 10 400 BTU/h (1) |
| Medium Burner | 1500 BTU/h - 5900 BTU/h (2) |
| Simmer Burner | 750 BTU/h - 3500 BTU/h (1) |
| Griddle Power | 1100 W |
Oven Cavity
| Oven Configuration | double |
| Oven Fuel | gas |
| Oven Convection System | dual horizontal fans |
| Main Oven Type | fan assisted gas |
| Main Oven Broiler Type | gas |
| Main Oven Functions |
bake/ broil/ convection bake |
| Main Oven Volume | 4.7 ft³ |
| Auxiliary Oven Type | gas conventional |
| Auxiliary Oven Functions | bake |
| Auxiliary Oven Volume | 2.4 ft³ |
| Oven Controls | knobs / thermometer |
| Inner Oven Door | triple |
| Removable Inner Glass | yes |
| Cooling Fan | yes |
| Oven Levels | 7 |
| Door Hinges | soft-motion |
| Wire-Shelves |
2 each cavity |
| Tray | 1 baking tray with grill trivet |
| Grill Trivet for Tray | yes |
| Oven Lights | double lateral |
Bottom
| Legs | stainless steel |
Technical Specifications
| Absorbed Current (A) | 10 A with dedicated circuit |
| Electrical Supply | 110V 60 Hz - 1200W |
