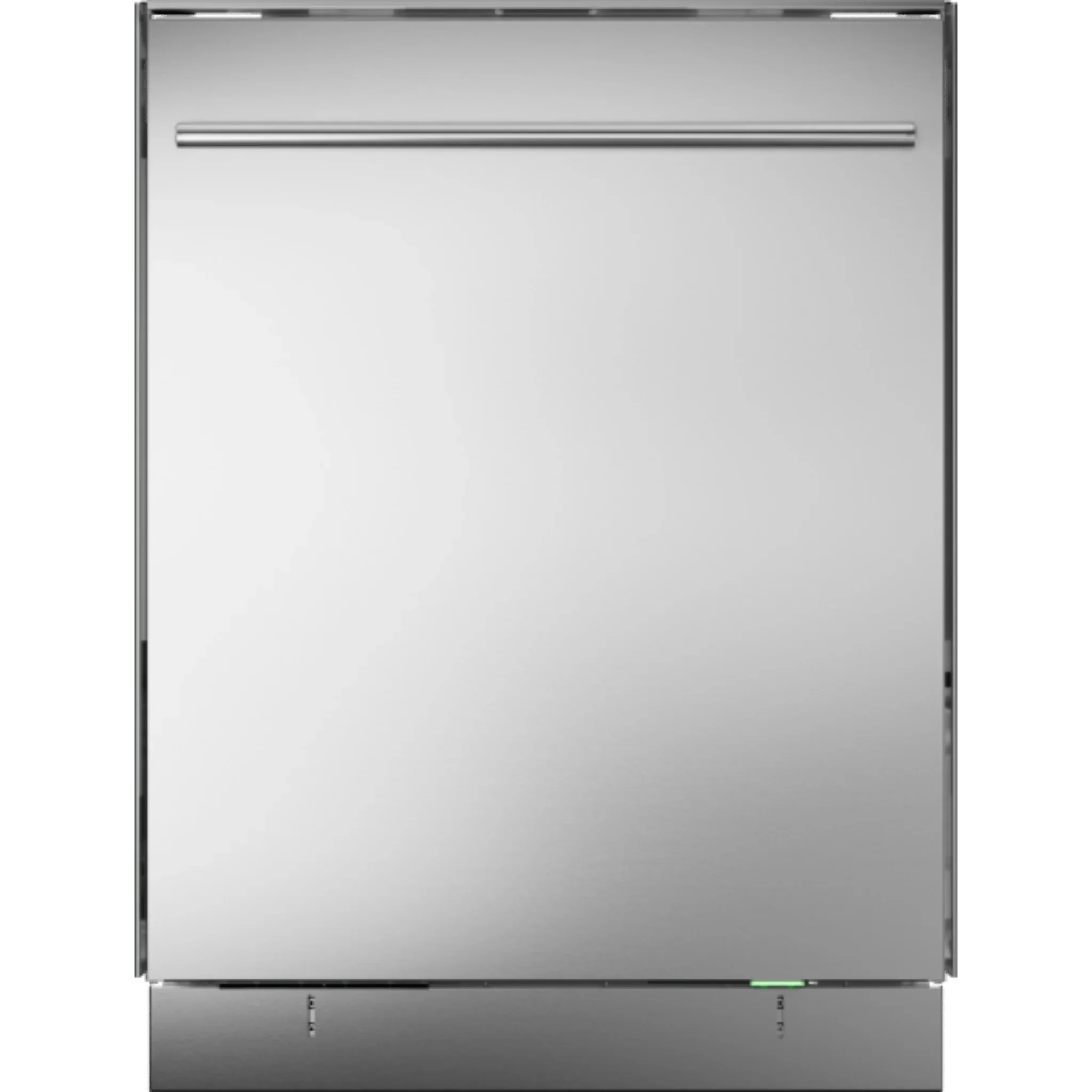

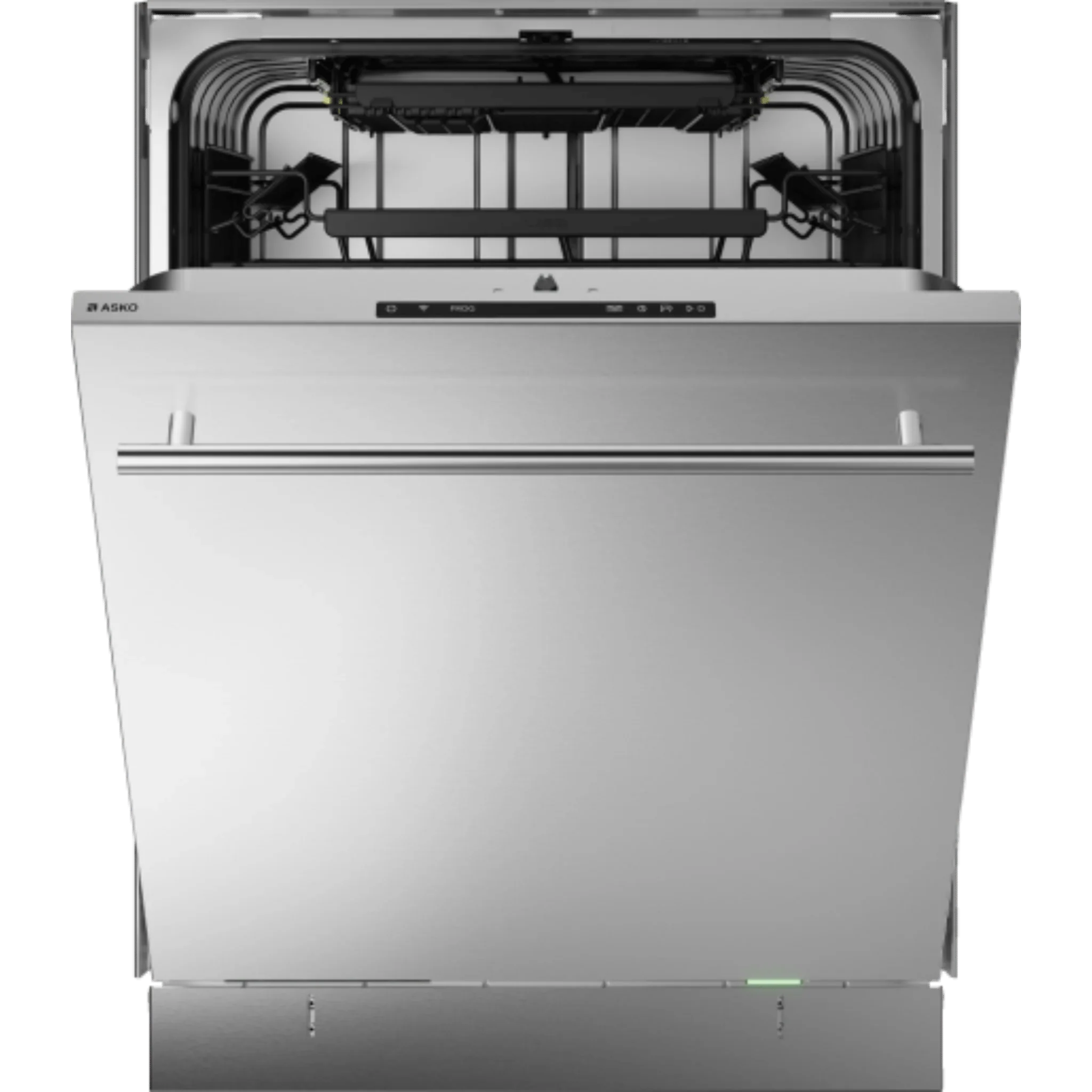

Asko Logic 24 Inch Wide 16 Place Setting Built-In Top Control Dishwasher with T-Bar Handle, Turbo Combi Drying and Auto Door Open Drying DBI564TS Product Details

24" Dishwasher, 40 Series, ADA, SS, ASKO T- Bar Handle, 42 dBA

Introducing the Asko Logic Dishwasher, a pinnacle of design and functionality for the modern kitchen. This 24-inch, top control built-in dishwasher is the perfect blend of capacity and efficiency, boasting a 16 place setting to cater to the demands of families and entertainers alike. The T-Bar Handle adds an element of sophistication and ease of use, while the innovative Turbo Combi Drying™ and Auto Door Open Drying™ systems ensure that your dishes are not just clean, but thoroughly dry and ready to be put away without any extra hassle. Designed for those who appreciate the finer details, the Asko Logic Dishwasher is a testament to luxury and performance in home appliances.

Features

Features:

• Accommodates 16 place settings
• Easy to use touch controls for mode selection
• Comes equipped with 9 wash cycles
• Interior is constructed of durable stainless steel
• Ultra-quiet operation rated at 42 dB is not disruptive
• Convenient cutlery basket is easy to remove for easy unloading
• 9 effective spray zones to ensure a totally clean load
• ADA Compliant
• Covered under a 2 year limited manufacturer warranty

Product Technologies:

• Super Cleaning System+: Rinse the dishes. Clean the interior, including the filter. Choose the best program. How many steps is that? One – and it's called it the Super Cleaning System – or ASKO's best invention.

• 8 Steel™: 8 Steel™ - more steel less plastic. No other material lasts as long as steel. And no other dishwashers have as many details made from steel instead of plastic as ASKO dishwashers. In fact, eight of the most important components in their dishwashers are made of high-quality steel rather than plastic: the container, loading racks, spray pipe, spray arms, strainers, outer base, feet, and inner door. By using more steel and less plastic, they make their machines last longer.

• Aqua Safe™ System: Do you hesitate to leave the dishwasher on while you are not at home? Aqua Safe™ system is an advanced safety system which ensures a leak-safe dishwasher day and night.

• Turbo Combi Drying™ with Auto Door Open Drying™: Turbo Combi Drying™ benefits from both the innovative Turbo Drying™ system and natural drying with dry indoor air. ASKO's Turbo Drying™ system begins the drying process and is followed with the door automatically opens to finish the drying with indoor air.

• Status Light™: ASKO's new generation dishwashers have Status Light™ -a small light placed in the bottom right corner to let you know the actual status of the program

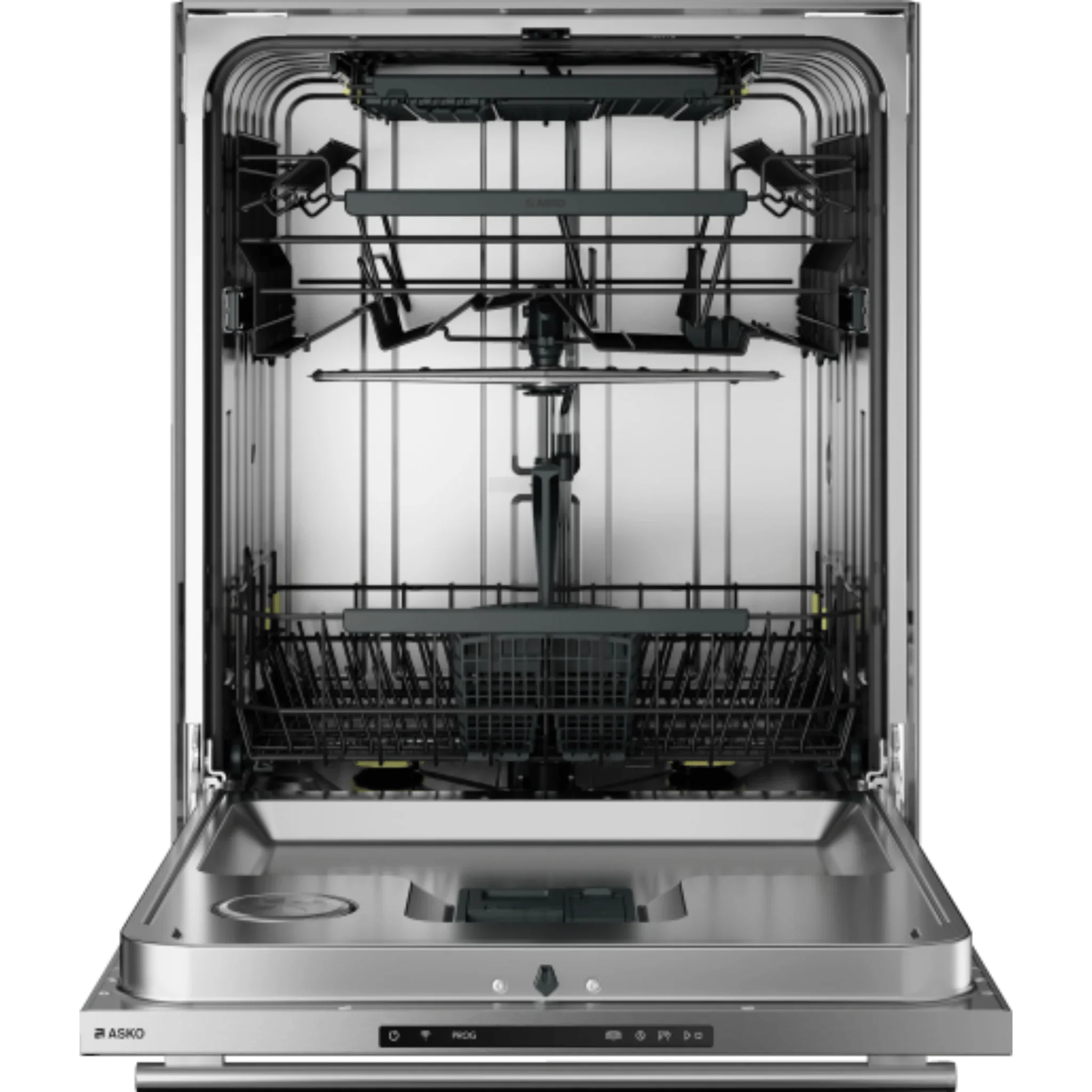

• Flexiracks™: ASKO Flexiracks™ from sturdy, nylon coated steel and are easily adjustable in different heights depending on which type of load you have

• InstantLift™: ASKO's InstantLift™ height adjustment system, allows for freeing up between 1-1/2" or 2-1/4" in the upper rack

Manuals

Manuals:

• Product sheet

• Instructions for use

• Catalogs-US-Asko-Dishwashers-2023

• DW-40-Series-Quick-Reference-Sheet

Specifications

Specifications:

Dimensions

Width	23 15/16 ''
Height	32 11/16 ''
Depth	21 13/16 ''
Maximum Product Height	34 13/16 ''
Length of Electrical Cord	71 7/16 ''
Depth with Door Open	46 7/8 ''

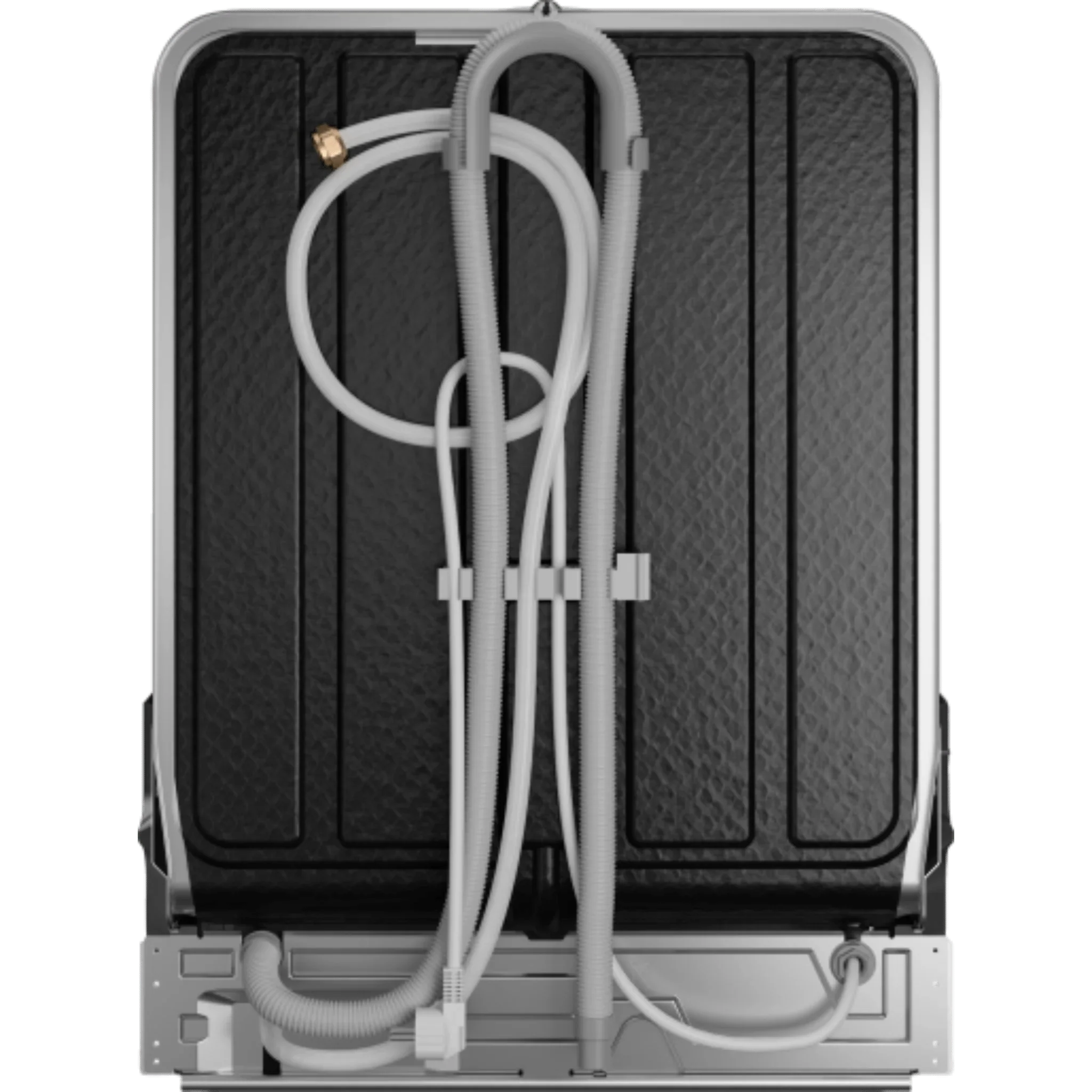

Length Inlet Hose	64 3/16 ''
Length Outlet Hose	90 9/16 ''

Technical Data

Water Connection	Hot & Cold Water
Adapter for Water Connection	No
Max. Temperature of Inflow Water	140 °F
Noise Level (max)	42 DBA
Reference Programme	1
Duration of Standard Programme	125 min
Estimated Yearly Energy Consumption	220 kWh
Energy Consumption - Normal Program	1 kWh
Estimated Annual Water Consumption	647.5 gal
Water Consumption	3 gal
Power Consumption in Standby Mode	0.5 W
Plug Type	USA
Connected Load	1300 W
Voltage (V)	120 V
Number of Phases	1
Fuse	15 A
Frequency	60 Hz
Required Inlet Water Pressure psi	0.03-1
Net Weight	89.3 lb
