Allavino FlexCount Dual Zone Side-by-Side Wine and Beverage Fridge 3Z-VSWB15-3SST Review

New Model Available

ALLAVINO FLEXCOUNT II TRU-VINO 30 BOTTLE/88 CAN THREE ZONE STAINLESS STEEL BEVERAGE/WINE FRIDGE 3Z-VSWB15-3S20

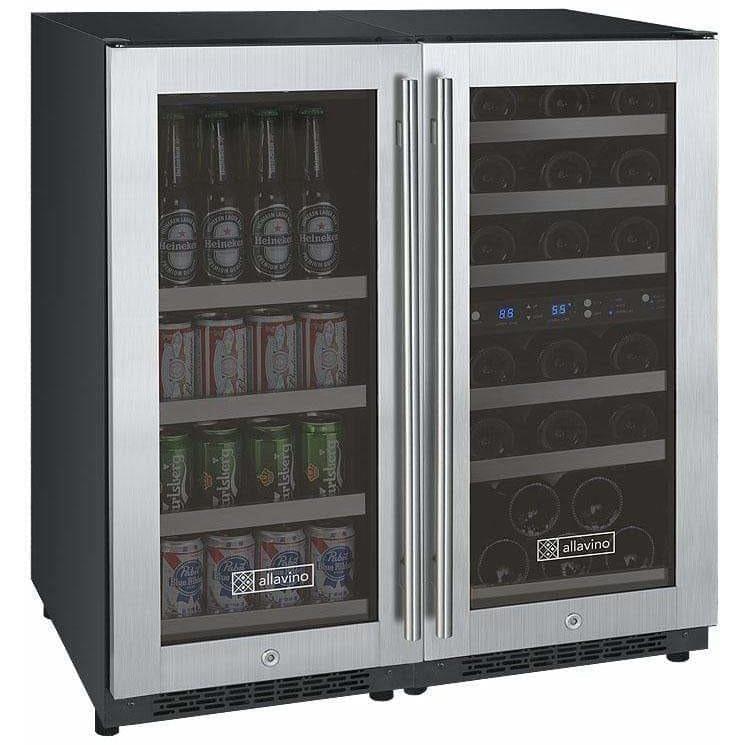

Allavino Flexcount Side by Side Dual-Zone Wine and Beverage Center 3Z-VSWB15-3SST stores up to 30 bottles wine on one of the 6 wine racks and up to 88 12-oz cans on one of the 4 included beverage racks.

• The Allavino 3Z-VSWB15-3SST FlexCount Series Side-By-Side Dual Zone Wine and Beverage Center is a versatile and convenient unit that is packed with features for optimal wine and beverage storage

• This wine and beverage refrigerator features a black cabinet, stainless steel framed glass french doors, curved and towel bar handles, and an all-black interior with blue LED lighting

• Beverage and wine cooler includes two independently controlled temperature zones for simultaneously chilling red and white wine and other select beverages at their optimal temperatures with an operating set range between 41 and 64 F degrees

• Allavino's wine and beverage center comes equipped with 6 wine racks capable of storing and chilling up to 30 bottles of wine and 4 beverage racks capable of storing and chilling up to 88 standard 12 oz cans at one time

• This unit has a fully finished cabinet and a front-venting construction making it suitable for both freestanding and built-in installations

Note: This is made up of two separate units placed side by side that both need to be plugged into an outlet

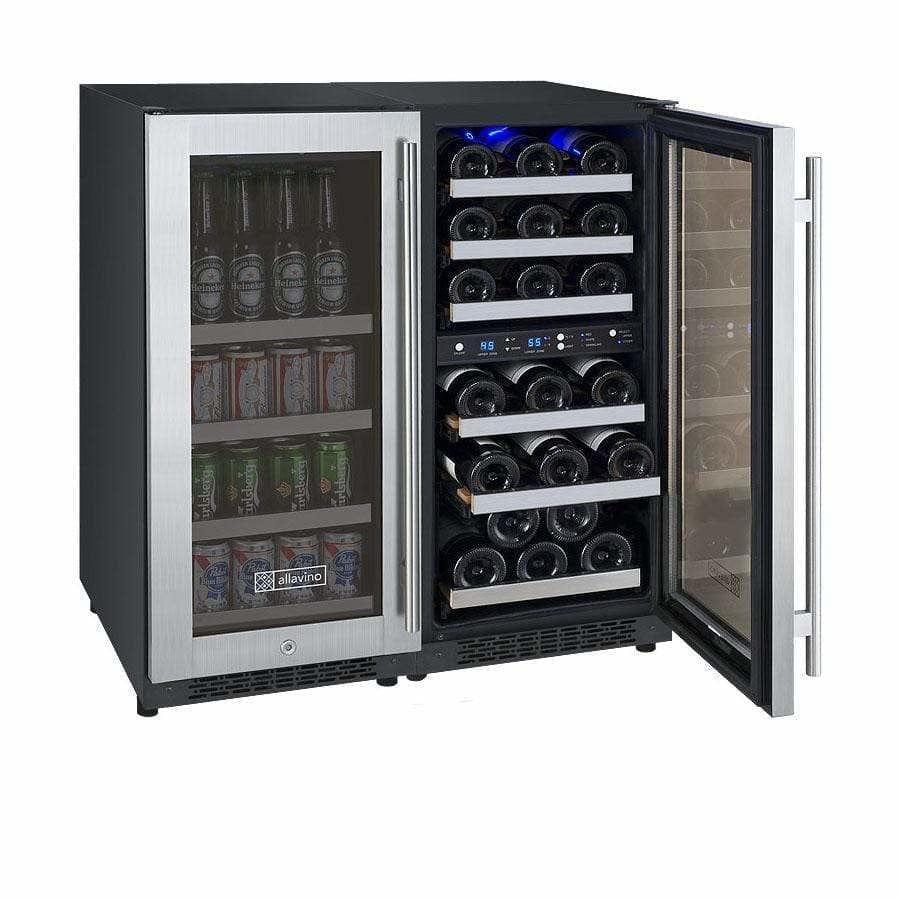

Whether your guests prefer red wine, white wine, beer, or soda, you can be sure to have all of their favorites on hand with the all-new Allavino VSWB15-3SST FlexCount Series Side-by-Side Wine and Beverage Center! Made up of one beverage refrigerator and one dual-zone wine refrigerator with opposite hinged doors, it can simultaneously store up to 88 standard 12 oz. cans and 30 red and white wine bottles, or up to 64 standard 12 oz. cans, 30 red and white wine bottles, and 28 standard size beer bottles. Every bottle and can is safely stored on Allavino's innovative new FlexCount shelving, which has been specially designed and constructed from durable metal to be thin enough to provide more space between shelves than other similarly sized wine cellars, making the most of its convenient compact size.

• Store Beverage Cans, Standard Beer Bottles, and Wine Bottles:
  The wine storage side of the VSWB-3SST features 6 shelves that can store up to 5 bottles each for a maximum capacity of 30 standard wine bottles. The beverage center side can store 24 standard 12 oz. cans each on 3 shelves and 16 standard 12 oz. cans on the bottom shelf for a maximum capacity of 88 standard 12 oz. cans, or 28 standard beer bottles on the top shelf, 24 standard 12 oz. cans on the 2 middle shelves, and 16 standard 12 oz. cans on the bottom shelf for a maximum storage capacity of 28 bottles and 64 standard 12 oz. cans.

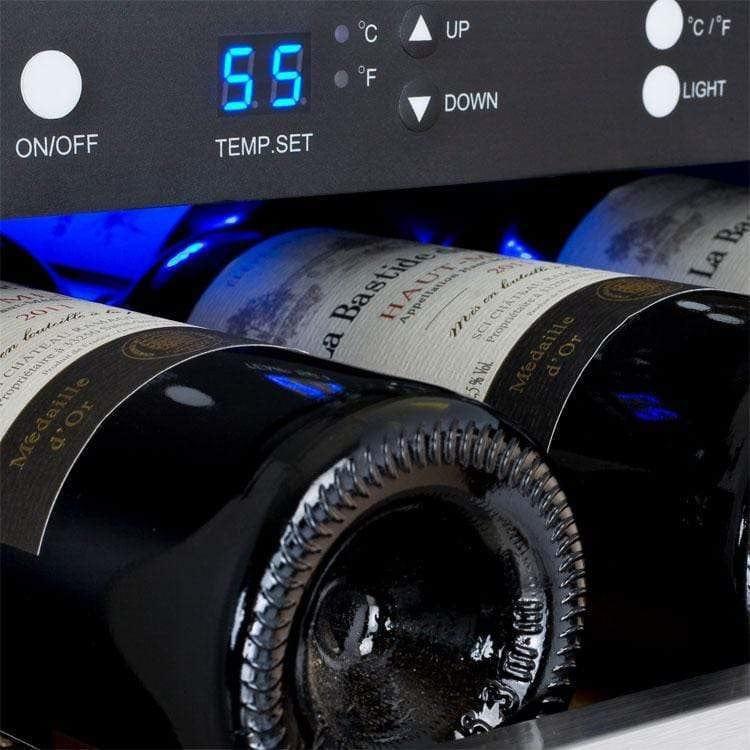

• Digital Display and Controls:
  Two clear digital displays with intuitive push-button controls take the guesswork out of storing your beverages, allowing you to independently monitor and adjust the temperatures in all three zones.


• Blue LED Interior Lighting:
  Illuminate your collection at the push of a button with the VSWB-3SST's cool blue LED lighting, which is cooler than standard lighting and will not create harmful hot spots.


• Store More Bottle Sizes:
  The intelligent design of the shelves creates more space between each shelf, allowing you to store bottles with varying diameters without having to remove racks which would reduce your overall capacity. Click on the Features tab above to see how your specific collection can be stored on the FlexCount shelves.


• Innovative New Shelf Design:
  Allavino's revolutionary new FlexCount series shelving provides worry-free beverage storage. These shelves have been specially designed with a thin yet durable metal construction that resists sagging while maximizing your available storage space.


• Shelves Extend Effortlessly:
  Every bottle and can is within easy reach thanks to Allavino's smooth gliding FlexCount shelves, which effortlessly extend on ball bearing tracks.


• Built-In Design:

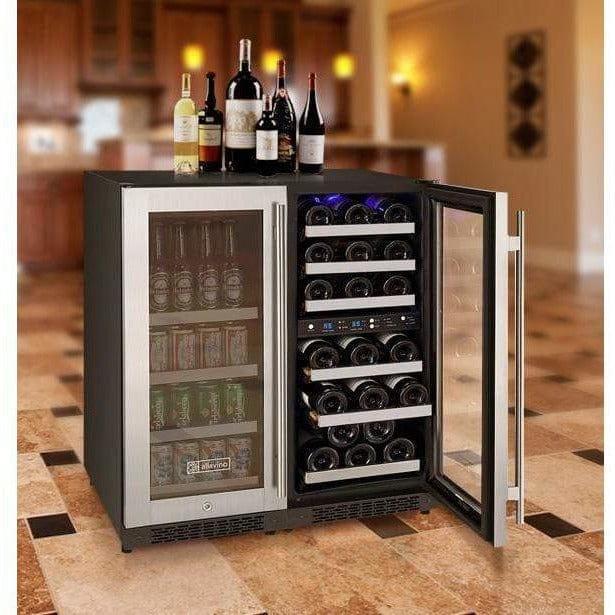

  Need beverage storage built-in to your kitchen cabinets? Want a stylish freestanding beverage center that will fit in perfectly with your game room's decor? The VSWB15-3SST's versatile front-venting design gives you the freedom to store your beverages in virtually any room in your home.

FEATURES

• Side-by-Side Wine and Beverage Center
• Black Cabinets with Stainless Steel Frame Glass Doors
• Curved and Towel Bar Handles Included
• All black interiors emulate the traditional wine cellar
• Blue LED lighting beautifully illuminates the interior without the heat created by an incandescent bulb
• Roller-glide shelves extend effortlessly, minimizing agitation to the wine
• Internal fans circulate air for even cooling and faster cooldown
• Operating Temperature:
• Two independently controlled temperature zones
• Upper Zone: The temperature setting can be adjusted between 41°F to 61°F
• Lower Zone: The temperature setting can be adjusted between 45°F to 64°F
  Note: The lower zone must be set at least 4° and no more than 12° higher than the upper zone. It is normal for there to be a 3-5° variance between the top and bottom of a zone.
• Maximum Ambient Temperature: 90°F
• Minimum Ambient Temperature: The lowest temperature you want to store your wine at. The unit does not have a heater, so if the ambient temperature is lower than the set temperature, the internal temperature will match the external temperature.
• Dimensions (each unit): 33 1/2"H w/hinge x 15"W x 23 1/4"D (25" w/handle)
• Weight (each unit): 92.6 lbs.
• Please Note: The handles are not attached to the unit during shipping, and will need to be installed when the unit arrives.

The beverage storage zone has 3 shelves that can hold up to 24 standard 12 oz. cans each and a bottom shelf that can hold up to 16 standard 12 oz. cans for a total storage capacity of 88 standard 12 oz. cans. The top shelf can also store up to 28 standard beer bottles for a total capacity of 28 bottles and 64 standard 12 oz. cans.

SPECS

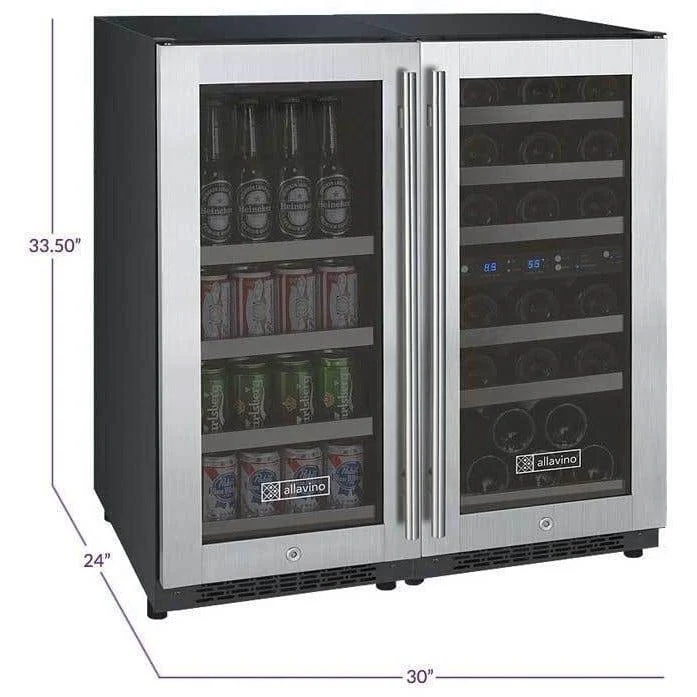

Dimensions
Height	33.5"
Width	30"
Depth	24"

Weight
Unit Weight	185.2 lbs.
Shipping Weight	262.00 lbs.

Key Features
Built-in Capable	Yes
Security Lock	Yes
Multiple / Dual Zone	Yes
Beverage Center	Yes
Cabinet Color / Material	Black Metal
ADA Compliant	No
Commercial Use	Yes
Outdoor Use	No
Energy Star Rated	No

Capacity
Wine Bottle Count	30
12-oz. Can Capacity	88

Controls
Adjustable Thermostat	Yes
Digital	Yes

Cooling System
Type	Compressor
Defrost System	Auto
Front Ventilation	Yes

Shelving
Type	Glide Out
Number of Shelves	10
Material	Metal
Removable	Yes
Adjustable	No
Glide-Out (Roller Assemblies)	Yes

Interior
Color	Black
Compartments (Distinct Zones)	3
Lighting	Yes

Door
Type	Glass
Number of Doors	2
Color / Material	Stainless Steel Frame
Door Handle	Towel Bar
Field Reversible	No
Accepts Custom Panel	No
Tinted / UV Protective	Yes
Self-Closing	No

Electrical
Electrical Requirements	115v / 60 Hz
Running Amps	2.3 A

The wine storage zone has 6 shelves that can hold up to 5 bottles each for a maximum bottle capacity of 30 bottles. The maximum capacity is based on the standard Bordeaux size bottle.
